Product Highlights
  • 470 - 558 MHz Frequency Range
  • AW+ Band
  • Up to 32 Compatible Channels
  • Full-Metal Housing
  • OLED Display
Option:
AW+ (470-558 MHz)
GW1 (558-608 MHz)
Sennheiser EM 300-500 G4-AW+Rackmount true diversity receiver GA3 rackmount not included frequency AW+ 470-558Mh Sennheiser EM 300-500 G4-AW+Rackmount tru...
FREE SHIPPING Available
Web Availability: Special Order
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

EM 300-500 G4

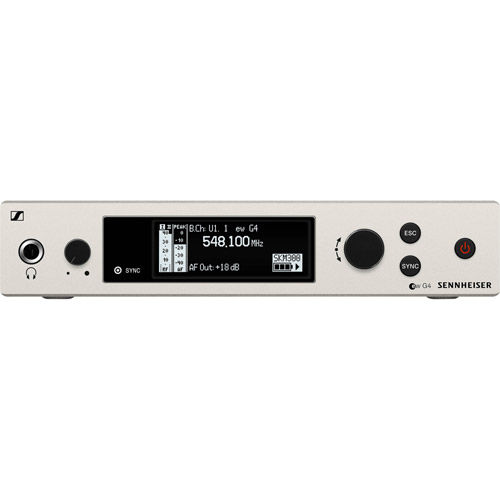

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.

Key Features:

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display
  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

What's Included

EM 300-500 G4 True Diversity Receiver
2x Rod Antennas
Power Supply
Quick Guide
Safety Guide
Manufacturer Declaration Sheet

Reviews

Product Specifications

EM 300-500 G4

Dimensions Approx. 202 x 212 x 43 mm (7.9 x 8.3 x 1.7")
Weight Approx. 980 g (34.6 oz.)
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Audio output 6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
Signal-to-noise ratio ≥ 115 dBA
Switching bandwidth Up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Modulation Wideband FM
Power supply 12 V DC
Antenna connector 2 BNC sockets
Current consumption 350 mA
Adjacent channel rejection Typically ≥ 75 dB
Intermodulation attenuation Typically ≥ 70 dB
Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity < 2.5 μV for 52 dBA eff S/N
Squelch 5 to 25 dBμV in steps of 2 dB
Equalizer Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range -10 °C to +55 °C
Receiver Principle True diversity
Blocking ≥ 75 dB
