Product Highlights
  • Lavalier Microphone
  • Omnidirectional Pickup Pattern
  • XLR / 3-Pin LEMO Connection
  • 20 Hz - 20 kHz Frequency Response
  • 167 cm (66") Cable Length
Option:
TL45B
TL46B
TL47B
Shure TL47B/O-LEMO TwinPlex Omnidirectional Lavalier Microphone, 1.6 mm Cable, Low Sensitivity Shure TL47B/O-LEMO TwinPlex Omnidire...
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

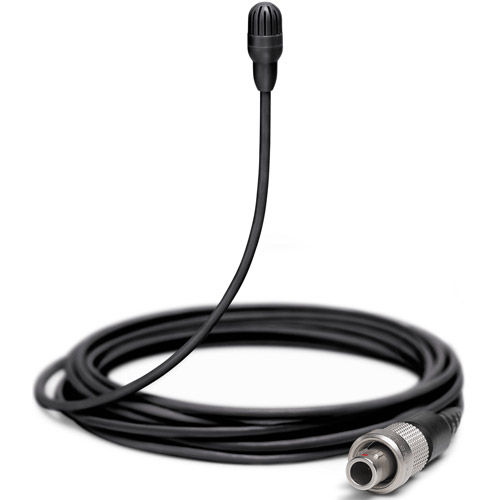

TL47 Subminiature Lavalier Microphone

The expressively natural sounding TwinPlex TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it’s the go-to line for flexibility.

Key Features:

  • With a variety of colors and connectors, the TL47 is ideal for nearly any application
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Natural
  • Sensitivity: Low
  • Colours: White, Tan, Cocoa, Black
  • Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, NC (bare wire)
In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more “sweat-outs.” The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

Reviews

Product Specifications

TL47 Subminiature Lavalier Microphone

Microphone Capsule Dual-Diaphragm, Prepolarized Condenser
Polar Pattern Omnidirectional
Frequency Response 20 Hz - 20 kHz
Sensitivity at 1 kHz -45.0 dBV (5.62 mV)
Self Noise 24.5 dB SPL-A
Signal-to-Noise Ratio 69.5 dB
Output Clipping Level 3 dBV / 1 kHz
Max. SPL 142 dB SPL
Dynamic Range 117.5 dB
Microphone Current Draw 120 to 240 µA, typical
Bias Voltage 5 VDC
Housing Molded ABS
Polarity LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground
MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
Cable Diameter 0.16 cm (0.06")
Cable Length 167 cm (66")
Microphone Length 1.3 cm (0.5")
Microphone Diameter 0.56 cm (0.22")
Net Weight 12 g (0.4 oz)
