- Webcode: 470266 • Mfr: HXCU-FZ90N
- FREE SHIPPING Available
Product Highlights
- Designed for HXC-FZ90 Camera
- Neutrik Fiber Input
- 2x 12G-SDI / 4x 3G-SDI/HD-SDI Output
- 100-240 VAC Power Source

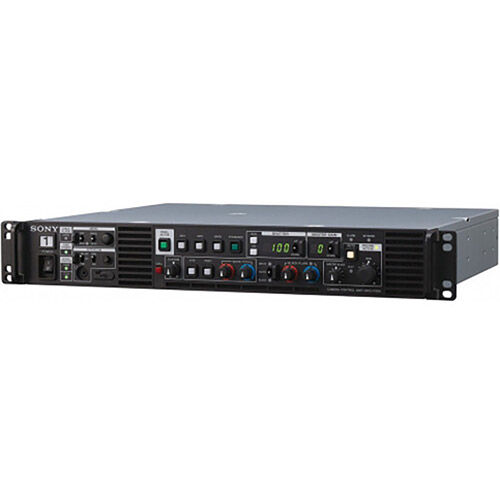

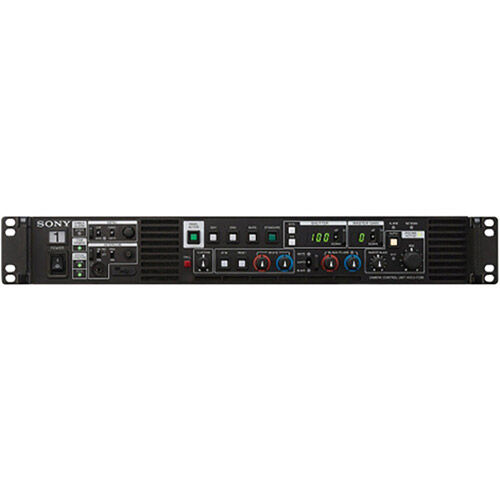

Sony HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (Neutrik)
Sony HXCU-FZ90 4K/HD Camera Control...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See the Availability Guarantee at the bottom of this page or click here for more info.
Overview
HXCU-FZ90 4K/HD Camera Control Unit
Studio camera system with HDR capability
In combination with the HXC-FZ90 camera and HZC-UHD9, the HXCU-FZ90 CCU also supports 4K HDR (HLG/S-Log3) and SR Live for HDR, for a cost-effective, future-proof solution.
Multiple frame rates over 3G-SDI and 12G-SDI signals
Work with a camera head and CCU that can comfortably output 2160/50p, 59.94p and 60.00p over 12G-SDI and 1080/50p, 59.94p and 60.00p over 3G-SDI. The new processor can also support 1080/23.98 PsF, 24 PsF and 29.97 PsF.
Future-proof 4K and 4K HDR support
Combine a software upgrade with the HXC-FZ90 to output 4K and 4K HDR (HLG/S-Log3) within BT.2020, depending on the look needed.
Fibre cable extension
Add the HXCE-FZ90 extension unit to carry high quality pictures for up to 10km over a Neutrik single mode fibre connection—or carry both signals and power for up to 300m.
What's Included
HXCU-FZ90 Camera Control UnitTally Number Plate 1 Set (0~9)
Operating Instructions Camera Operation Manual CD-ROM
Operation Guide
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
HXCU-FZ90 4K/HD Camera Control Unit |
|
|---|---|
| Operating Temperature | 5 °C to +40 °C (41 °F to +104 °F) |
| Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Dimensions | 482 (424) x 66 x 366 mm 19 (16 3/4) x 2 5/8 x 14 1/2 inches |
| Weight | Approx. 5.9 kg (13 lb) |
| Signal Format | 4K 2160 : 59.94p, 50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720 : 59.94p, 50p SD 480 : 59.94i, 576: 50i |
| CAMERA | Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type) |
| Distance of Power Supply | 300m |
| Distance of fiber cable by Local Power Supply | 10 km (max.) by Single Mode Fiber Cable (LC type) (with HXC-FZ90) |
| Intercom/Tally/IO Port | D-sub 25-pin, female (x1) INTERCOM (PROD, ENG), 4Wire/RTS: 0 dBu, Clear-Com:-14 dBu PGM, 3 systems, 0 dBu/–20 dBu TALLY (R, G) |
| RCP / CNU | 8-pin (x1) |
| Trunk | 12-pin (x1) |
| LAN-COM | RJ-45 8-pin |
| Network Trunk | RJ-45 8-pin |
| UHD SDI | UHD Out 1,2 : 12G/6G/3G/HD SDI OUTPUT BNC (x2) 12G SDI： SMPTE ST2082、0.8 Vp-p、75 Ω、11.88 Gbps/11.868 Gbps 6G SDI：SMPTE ST2081、0.8 Vp-p、75 Ω、5.940 Gbps/5.934 Gbps 3G SDI: SMPTE ST424/425 Level-A/B、0.8 Vp-p、75 Ω、2.970 Gbps/2.967 Gbps HD SDI：SMPTE ST292、0.8 Vp-p、75 Ω、1.485 Gbps/1.4835 Gbps |
| SDI OUT | SDI Out 1,2 : 3G/HD/SD SDI OUTPUT BNC (x4) 3G SDI：SMPTE ST424/425 Level-A/B、 0.8 Vp-p、75 Ω、2.970 Gbps/2.967 Gbps HD SDI：SMPTE ST292、0.8 Vp-p、75 Ω、 1.485 Gbps/1.4835 Gbps SD SDI：SMPTE ST259、0.8 Vp-p、75 Ω、270 Mbps |
| SDI I/O | SDI I/O 1 to 4 : 3G/HD/SD SDI I/O BNC (x4) 3G SDI：SMPTE ST424/425 Level-A/B、0.8 Vp-p、75 Ω、2.970 Gbps/2.967 Gbps HD SDI：SMPTE ST292、0.8 Vp-p、75 Ω、1.485 Gbps/1.4835 Gbps SD SDI：SMPTE ST259、0.8 Vp-p、75 Ω、270 Mbps |
| Reference In/Out | BNC (x2), loop-through output, HD: 3-level sync, 0.6 Vp-p, 75 Ω, SD: 2-level sync, 0.3 Vp-p, 75 Ω |
| Prompter | BNC (x2), In: VBS, 1.0 Vp-p, 75 Ω, 1 system, Out: Loop-Through |
| Audio Out | AUDIO OUT CH1, CH2 : XLR 3-pin, male (x2), 0/–20 dBu/+4 dBu |
| AC IN | (x1), AC 100 V to 240 V |
