- Webcode: 470270 • Mfr: HXCE-FZ90
- FREE SHIPPING Available
Product Highlights
- Designed for HXC-FZ90 Studio Camera
- 300 m (984') Transmission Distance
- 100-240 VAC Power Source
Sony HXCE-FZ90 Camera Extension Unit for HXC-FZ90 Studio Camera
Sony HXCE-FZ90 Camera Extension Uni...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See the Availability Guarantee at the bottom of this page or click here for more info.
Overview

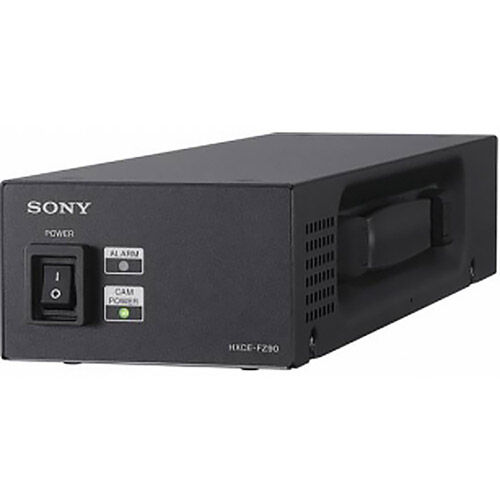

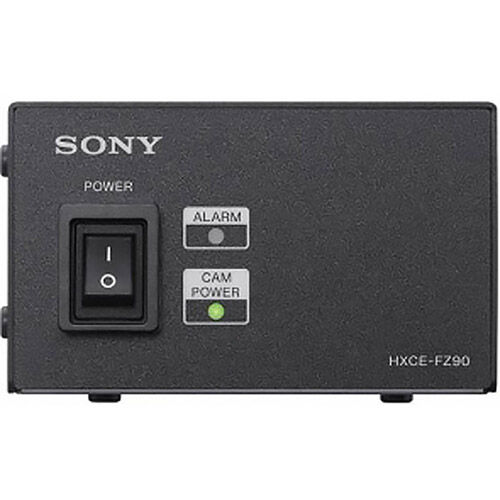

HXCE-FZ90 Camera Extension Unit
Extends fiber connection up to 6.21 mi
The HXCE-FZ90 is very useful for building a flexible system. You can combine Sony’s CCFN hybrid cable and single mode fiber in order to maintain cable wiring durability over a long distance. The HXCE-FZ90 can supply power to HXC-FZ90 and extend the extension distance from 984.25 ft + 6.2 mi.
4K picture quality and connection for all signals
The HXCE-FZ90 provides excellent picture images as well as flexible integration and the possibility to extend operation with signals in 4K/full HD.
Optical fiber connection
The HXCE-FZ90 helps ensure excellent picture quality and easy integration using optical fiber connection for distances up to 984.25 ft with power supply or up to 6.2 mi with single mode fiber and local power supply.
Very compact design and lightweight
The compact unit makes it easy to position in any available space in proximity of the event, while remaining inconspicuous. It is easy to carry, with a handle to help with speedy deployment and set up.
Connector options
The HXCE-FZ90 is supplied with 2x optical CON DUO connectors as standard. It is possible to adopt Lemo-type connectors as an optional alternative, using the HKC-LC01 and the HKC-LC02 Lemo-type fiber connector.
What's Included
HXCE-FZ90 Camera Extension Unit
Operating Instructions CD-ROM
Before Using This Unit
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
HXCE-FZ90 Camera Extension Unit |
|
|---|---|
| Power Requirements | 100 V to 240 V AC 50/60 Hz |
| Current Consumption | 2.1 A (max.) |
| Operating Temperature | 5 °C to 40 °C (41 °F to 104 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Weight | Approx. 2.1 kg (4 lb 10 oz) |
| Dimensions | 104 × 62 × 360 mm 4 1/8x 2 1/2x14 1/4 in (excluding protrusions) |
| Camera | Optoelectric multi connector |
| CCU | Optical fiber connector |
