Product Highlights
- 470-663 MHz Frequency Range
- 100 m (300') Cable Length
- RJ45 Connection
- Up To 100 mW Max. Power
- IP54 IP Rating

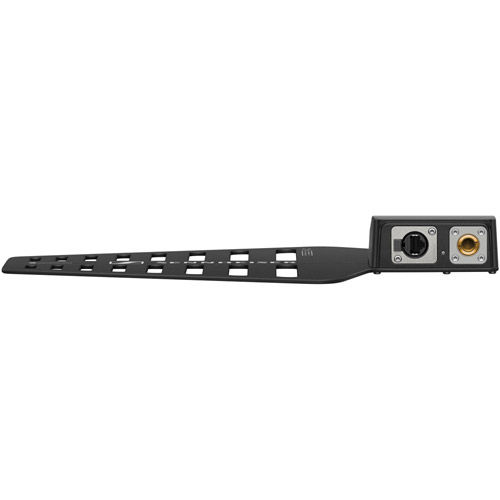

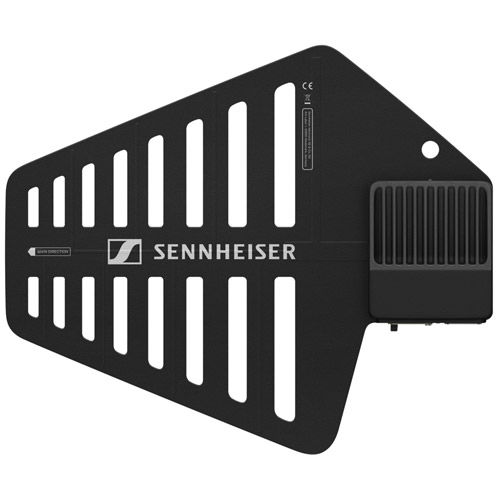

Sennheiser Spectera DAD UHF Directional Active Transceiver Antenna Module (UHF: 470 to 663 MHz)
Sennheiser Spectera DAD UHF Directional A...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See the Availability Guarantee at the bottom of this page or click here for more info.
Overview
Spectera Digital Antenna Directional Module
The transceiving Spectera Digital Antenna Directional (DAD) manages IEM signals, mic/line signals and data simultaneously. It provides continuous interference management and remote control, and is equipped with a rugged RJ45 connector, IP54 protection and PoE.
Key Features:
- Transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
- Available variant: UHF (470 – 608 MHz and 630 – 698 MHz)
- Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
- Directional antenna
- Ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
- Continuous interference management and remote control
- IP54 protection
- Fiber extension capabilities (supported converters in technical documentation)
- Optional use as dedicated fast and high-quality scanning device
- Powered over ethernet (standard POE)
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Spectera Digital Antenna Directional Module |
|
|---|---|
| Color | Black |
| Power consumption (Amp) | PoE class 2 (<6.5 W) |
| On/Off Switch | No |
| Apex Angle Vertical | 65 degree |
| Front to Back Ratio | 15 dB |
| Gain | 5 dB |
| Min. Channel Spacing | matches to used bandwidth mode |
| RF sensitivity | tbd per ALM |
| Warranty AMER | 2 years |
| Frequency Range | 470-680 MHz 630-698 MHz |
| RF Link Bandwidth | 6 or 8 MHz countrywise limited |
| RF Link | 1 |
| Connection | Wireless |
| Connectors | RJ45 1 Gbps PoE |
| Base Station Connection | Ruggedized RJ45 including PoE, max. 100 m cable length CAT5e spec, 1000 Mbit/s |
| Storage Temperature Range | - 25 deg * C - 80 deg * C(- 13 deg * F - 176 deg * F) |
| Transmission Power (mA) | up to 100 mW countryside limited |
| Encryption | AES 256 CTR Mode exp. >10k years |
| Transmission Method | Multicarrier, TDMA, TDD |
| Weight | 1069 g (37.7 oz) |
| Dimensions | 40 x 33 x 6 cm (15.7 x 12.9 x 2.3") |
