Wooden Camera Elite Accessory System for Canon EOS C400 V-Mount

Elite Accessory System

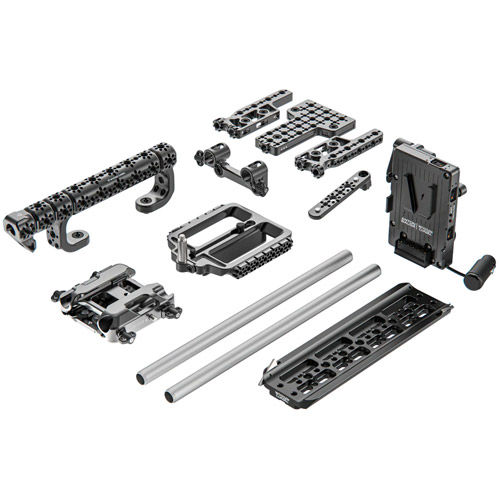

The Elite Accessory System for Canon EOS C400 maximizes the camera's on-set capabilities with abundant mounting points for endless accessory configurations. This cage system contains an ARCA Base Plate and Riser System that positions the camera at the appropriate optical height for mounting accessories and allows for quick setup transitions. The Riser Plate can be used alone with the ARCA Shoulder Pad or ARCA Steadicam Plate; the Base Plate is required for tripod or dovetail systems.

The three-piece Top Plate System lets you replace the native EOS C400 handle with the removable Center Top Plate and Ultra Handle Kit to maximize accessory mounting points. The Dual Rod Bracket can be mounted on the full Top Plate System enabling rod-based mounting. The NATO Side Rail mounts to the Top Plate near the rear of the camera without touching the EOS C400’s handle, providing additional mounting points and the ability to use NATO clamp accessories. Patented anti-twist safety pins ensure secure mounting.

The Battery Slide Pro Gold Mount/Battery Slide Pro V-Mount attaches directly to the back of the camera without rods, delivering battery power to the camera via a 4-pin XLR connector while maintaining access to the battery compartment for hot-swapping the internal BPU battery. The DC Input on the camera-right side can be used to hot-swap between block and onboard batteries. 3x D-Tap ports provide accessory power at battery voltage. A digital fuse, when tripped, cuts off accessory outputs while leaving the camera powered. The Bolt-On EVF adaptor securely mounts the 15mm EOS C400 EVF directly to the Ultra Handle Front Riser or the front of the 1” Ultra Handle Extension when using the Ultra Handle 5” Kit. Attaches with a ⅜”-16 mounting screw using a 3/16 Hex. Provides 2x ⅜”-16 mounting points in addition to the Canon EVF mount.
