- Webcode: 473579 • Mfr: 286529
Product Highlights
- Power 1000 / Power 500 Compatibility
- 12-30 VDC Input
- 200 W Max. Power
- XT60 Interface
DJI Power Solar Panel Adapter Module (MPPT)
DJI Power Solar Panel Adapter Modu...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Overview
Power Solar Panel Adapter Module (MPPT)
When a DJI Power-series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can link solar panels through the XT60 interface on the adapter panel for eco-friendly recharging of the DJI Power series. It is recommended to use the DJI Power-series power stations in conjunction with solar panels from the DJI-certified brand Zignes. If using solar panels from other brands, using the MPPT module and a conversion of the solar panel port to the XT60 interface are necessary to enable solar recharging for the DJI Power series.

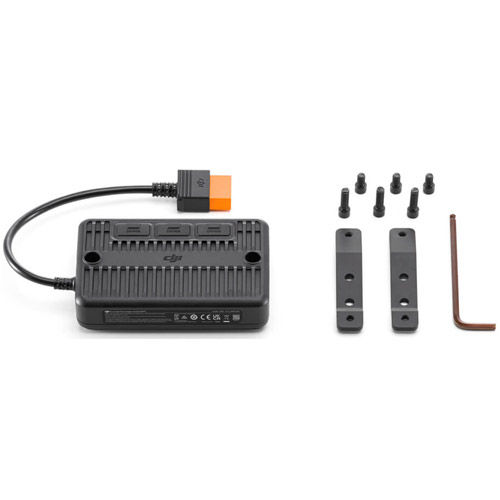

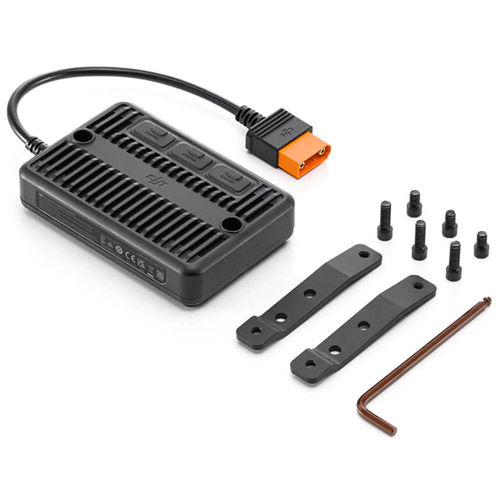

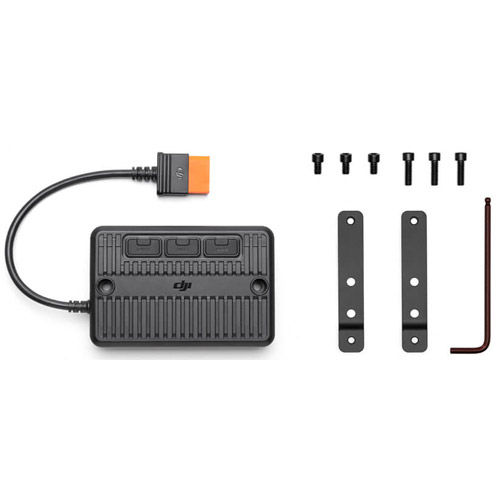

What's Included
Power Solar Panel Adapter Module (MPPT)2x Metal Heat Dissipation Brackets
Ball-End Hex Key
3x 10mm Screws
3x 20mm Screws
Reviews
Product Specifications
Power Solar Panel Adapter Module (MPPT) |
|
|---|---|
| Compatibility | DJI Power 1000 DJI Power 500 |
| Total Output | Single Channel: Max 200 W Triple Channels: Max 400 W (with DJI Power 1000) Max 300 W (with DJI Power 500) |
| Input Voltage | Single Channel: 10 A Triple Channels: 16 A |
| Operating Temperature | -10° to 45° C (41° to 113° F) |
