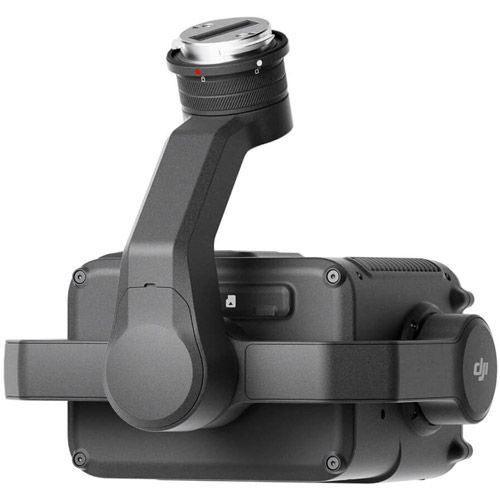

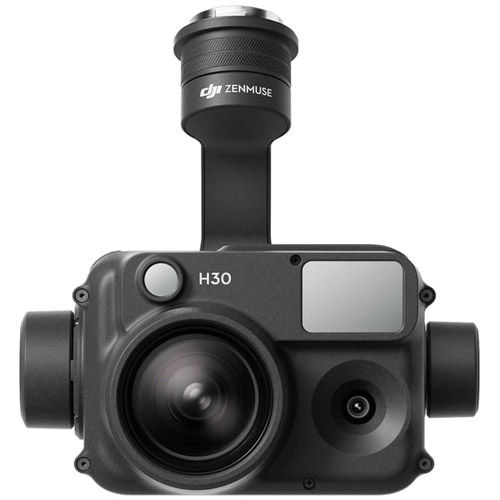

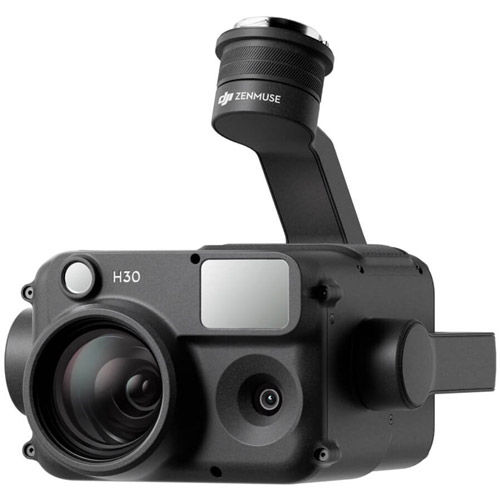

DJI Zenmuse H30 SP 2Y

Zenmuse H30 Worry-Free Basic Combo

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Further and Clearer ‌Vision

40MP zoom camera supports up to 34× optical zoom and 400× digital. 3000m max laser rangefinding distance is an approx. 2.5-times increase.

Zoom Camera

Up to 34× Optical Zoom‌ and 400× Digital Zoom
40MP 1/1.8-inch CMOS Sensor
Video Resolution: Max 3840×2160@30fps

Wide-Angle Camera

Equivalent Focal Length: 24mm, DFOV: 82.1°
48MP 1/1.3-inch CMOS Sensor
Video Resolution: Max 3840×2160@30fps

Laser Range Finder

Measurement Range: 3-3000 m
Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%)‌> 500 m: ±1.0 m

Infrared Thermal Camera (H30T only)

Equivalent Focal Length: 52mm, DFOV: 45.2°
Uncooled VOx Microbolometer
Photo Resolution: 1280×1024
Video Resolution: 1280×1024@30fps
Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

NIR Auxiliary Light

Wavelength: 850 nm
FOV: 4.6±0.6° (Round)
Safety Rating: Class 1
Illumination Range: Approx. 8m diameter circle at 100m distance

Enhanced Night Vision

Supports Full-Color Night Vision

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night. Zoom and wide camera support Night Scene mode to improve performance in low light. Zoom camera supports IR Light and NIR Illumination.

Supports Black and White Night Vision and NIR Illumination

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for night safety observation and search-and-rescue operations.

Up to 34× Optical Zoom‌ and 400× Digital Zoom

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.

More Stable Imagery from the Zoom Camera

With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

Max 3000m Laser Range Finder

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.

Powerful Infrared Performance

1280×1024 Infrared Resolution

The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.


High-Res Mode for Precise Observation

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Visual and IR Cameras Simultaneous Zoom

The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

Reliable Information Sync

Experience 30s max pre-recording, media and video transmission encryption with one-click log clearance, and live views via DJI FlightHub 2.

Smart Multi-Scenario Operation

Supports Smart Capture for detailed photos in dramatic lighting conditions. Electronic dehazing improves imaging clarity in haze/fog etc.

Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

With the installation of an infrared density filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

Environmental Adaptability

Dust and water resistance rated at IP54 and operational from -20° to 50° C (-4° to 122° F), meeting all-weather operational demands.

IP54 Ingress Protection

With an IP54 dust and water resistance rating, the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.
