- Webcode: 428815 • Mfr: EW 100 ENG G4-A
- FREE SHIPPING Available
Demo Details
- Item Condition: Former Display
- Accessories:
Refer to Demo Details above.
Product Highlights
- EK 100 G4 Receiver
- SK 100 G4 & SKP 100 G4 Transmitter
- ME 2 Clip-On Microphone
- A: 516 to 558 MHz Bandwidth
- Lavalier Microphone
- Omnidirectional Pickup Pattern
- 3.5 mm Jack Connection
- Wireless
- Works with EK 100 G4
- 100 m (330') Frequency Range
- Up to 42 MHz Bandwidth
- A Band
- Includes Sennheiser EK 100 G4, SK 100 G4, SKP 100 G4, ME 2, e835 & Accessories

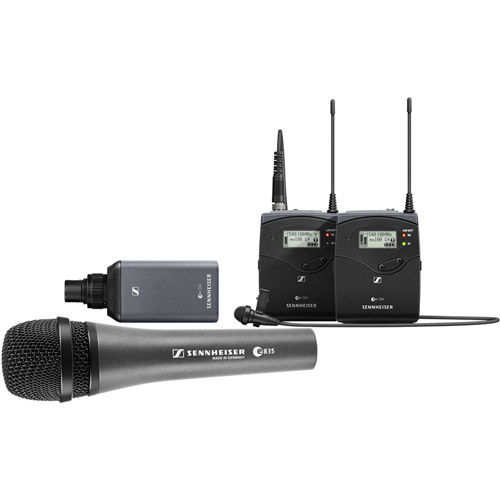

Sennheiser EW100 ENG G4 combo set with E835 Mic include SK 100 w/ SKP 100 G4 range: A (516 - 558)
Sennheiser EW100 ENG G4 combo set with E8...For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Evolution Wireless G4
Sennheiser G4 Series
Evolving with you
The fourth generation evolution wireless series makes professional wireless technology even more simple, flexible and reliable. For musicians, filmmakers, convention speakers and for use in the auditorium: G4 is a system that grows with you.
The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all.
-
Live Sound
From the small stage to the big arena, the 100 series covers everything musicians and performers need to connect with their audience, including quick synchronization of up to 12 channels. The 500 series impresses even the most critical professionals in multi-channel applications with a bandwidth of up to 88 MHz.
-
Broadcast & Film
Specially developed for mobile journalism, the 100 series is the industry standard and is used whenever everything has to be quickly and reliably captured in one take. Thanks to its high bandwidth, the completely new 500 series provides reliable transmission for large film shoots.
-
Business & Education
With the 300 Series, Sennheiser raises the bar again by offering even greater flexibility and optimized support for workflows. Thanks to remote control and monitoring with the Sennheiser Control Cockpit software, G4 is the most versatile microphone series for business and education applications.
Wireless technology has never been so flexible.
Club gig? Large festival stage? Outdoor shoot? Auditorium? Conference? It's all possible thanks to the G4. Now, with the 100 series, 12 channels can be synchronized in seconds – that saves precious time during setup. The 300 and 500 series both come with a bandwidth of up to 88 MHz.
The new simplicity of a complex setup.
G4 is the easiest professional system to use at its price point.
The intuitive display at the heart of the system, the true diversity receiver, provides for quick and easy operation. The Wireless Systems Manager software (300 and 500 series) and the Control Cockpit (300 series) make it incredibly easy to control multichannel systems and ensure the perfect workflow.
No compromises in transmission reliability.
Up to 100 meters (300 feet) of perfect sound, up to 50 mW of transmission power (300 and 500 series), feedback-proof microphone capsules – that provides absolute transmission reliability all the way back to the last rows. The G4 proves its worth when everything has to be right in the first take, for example in outdoor shoots when surrounded by many other camera teams. You can rely on the G4 – any time, any place.
Even more possibilities.
Evolution wireless is made for every conceivable application. With the G4, Sennheiser added several additional sets: a 100 series combo set (handheld and clip-on microphone), a completely new 500 series for large film shoots, and new basic sets for the 300 series (Business & Education) that make it affordable for you to supplement your system as you see fit.

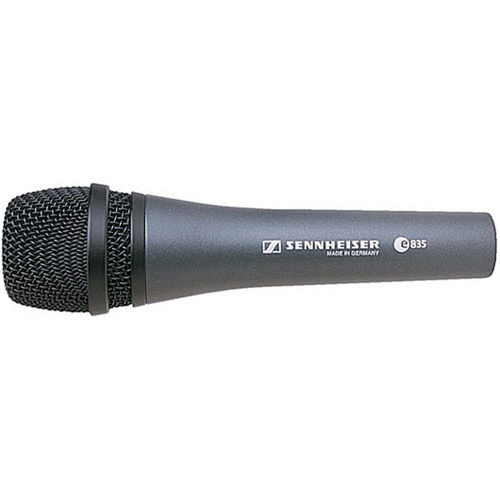

E835 Handheld Dynamic Cardioid
Sennheiser E835 Handheld Dynamic Cardioid
The e 835 is a cardioid lead vocal stage microphone specially designed to perform under pressure. Sound inlet basket: refined steel.
E835 Features:
- Rugged metal body
- Excellent feedback rejection
- High sound pressure handling capability
- Shock-mounted capsule provides excellent suppression of handling noise
- Uniform onand off-axis response
- Cardioid pick-up pattern provides isolation from other on-stage signals
- Hum compensating coil
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications

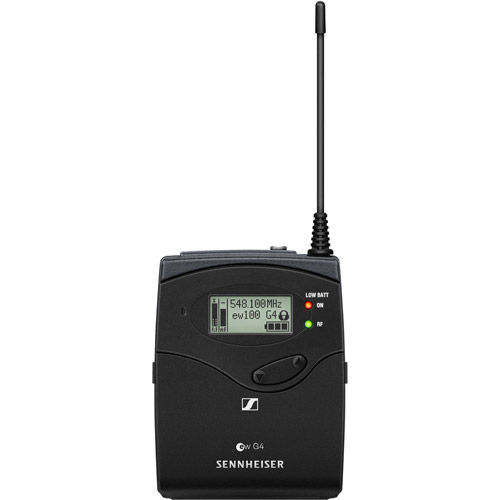

EK 100 G4 |
|
|---|---|
| Frequency range | A: 516 - 558 MHz |
| Dimensions | Approx. 82 x 64 x 24 mm (3.2 x 2.5 x 0.94") |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Weight (incl. batteries) | approx. 160 g (5.6 oz) |
| Audio output | 3.5 mm jack socket: +12 dBu (mono, unbalanced) |
| Signal-to-noise ratio | ≥ 110 dBA |
| Switching bandwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 µA |
| Adjacent channel rejection | ≥ 65 dB |
| Intermodulation attenuation | ≥ 65 dB |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Receiving frequency | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| RF sensitivity | < 1.6 μV for 52 dBA eff S/N |
| Squelch | low: 5 dBµV middle: 15 dBµV high: 25 dBμV |
| Temperature Range | -10 °C to +55 °C (14 °F to 131 °F) |
| Receiver Principle | Adaptive diversity |
| Blocking | ≥ 70 dB |

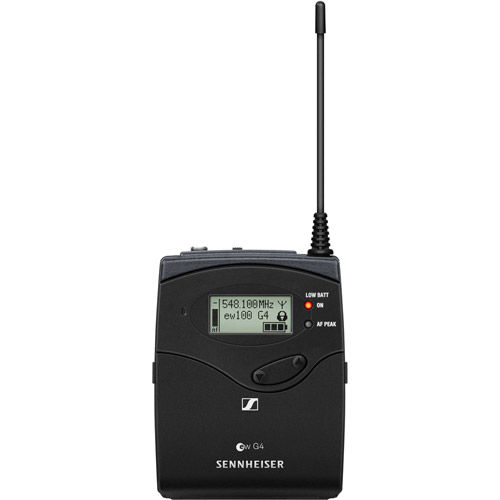

SK 100 G4 |
|
|---|---|
| Dimensions | Approx. 82 x 64 x 24 mm (3.2 x 2.5 x 0.94") |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Weight (incl. batteries) | Approx. 160g (5.6 oz) |
| Signal-to-noise ratio | ≥ 110 dBA |
| RF output power | Max. 30 mW |
| Switching bandwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption at nominal voltage | typ. 180 mA with transmitter switched off: ≤ 25 µA |
| Input impedance | 40 kΩ, unbalanced / 1 MΩ |
| Max. Input voltage | 3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| AF frequency response Mic: | 80 – 18,000 Hz Line: 25 – 18,000 Hz |
| Temperature range | -10 °C to +55 °C (14 °F to 131 °F) |
| Frequency stability | ≤ ±15 ppm |

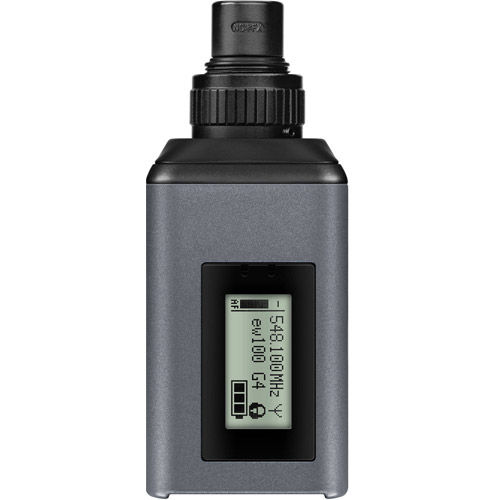

SKP 100 G4 |
|
|---|---|
| Dimensions Approx. | 105 x 43 x 43 mm (4.1 x 1.7 x 1.7") |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Weight (incl. batteries) | approx. 195 g (6.9 oz) |
| Signal-to-noise ratio | ≥ 110 dBA |
| RF output | Max. 30 mW |
| Switching banwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA |
| Input impedance | 68 kΩ, unbalanced |
| Max. Input voltage | 3.3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| AF frequency response | 80 – 18,000 Hz |
| Temperature Range | -10 °C to +55 °C (14 °F to 131 °F) |
| Frequency stability | ≤ ±15 ppm |

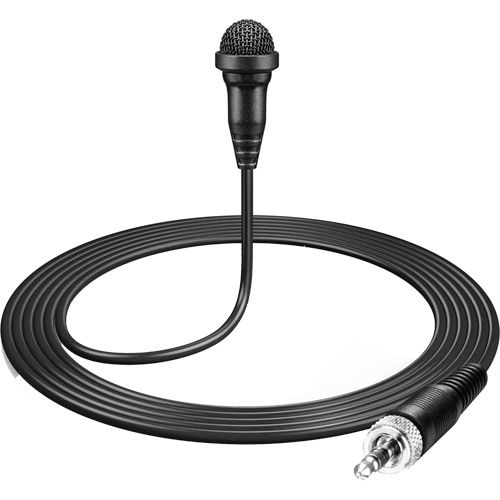

Me 2 |
|
|---|---|
| Connector | 3.5 mm jack (1/8") |
| Frequency response | 50 to 18,000 Hz (ME 2-II) |
| Max. sound pressure level | 130 dB |
| Cable length approx. | 1.6 m (5.2') |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | omni-directional |
| Sensitivity | in free field, no load (1kHz) 20 mV/Pa |
| Equivalent | noise level 36 dB |
E835 |
|
|---|---|
|
Dimensions |
Ø 48 x 180 mm |
|
Connector |
XLR-3 |
|
Frequency response |
40 - 16000 Hz |
|
Weight |
330 g |
|
Sensitivity |
in free field, no load (1kHz) 2,7 mV/Pa |
|
Nominal impedance |
350 Ω |
|
Min terminating impedance |
1000 Ω |
|
Weight w/o cable |
330 g |
