LEDGO VERSATILE 2.0

Bend it, Shape it, Any Way You Want it.

LEDGO VERSATILE 2.0



Dimmable/WiFi Control Ready 2.4G

THE WORLD'S MOST FLEXIBLE LIGHTING SOLUTION.

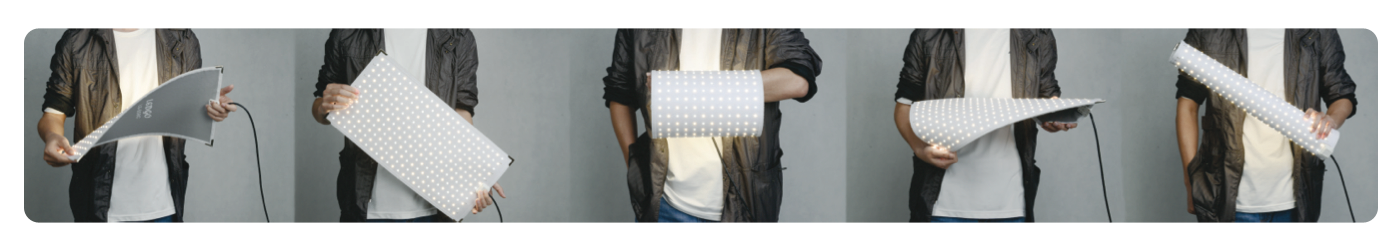

Flexible VersaTile LED tiles can be easily configured independently for use anywhere or quickly set in place via velcro tabs into the provided VersaTile Kit Frame.
a

CHOOSE FROM 2 VERSATILE KIT FRAME TYPES.

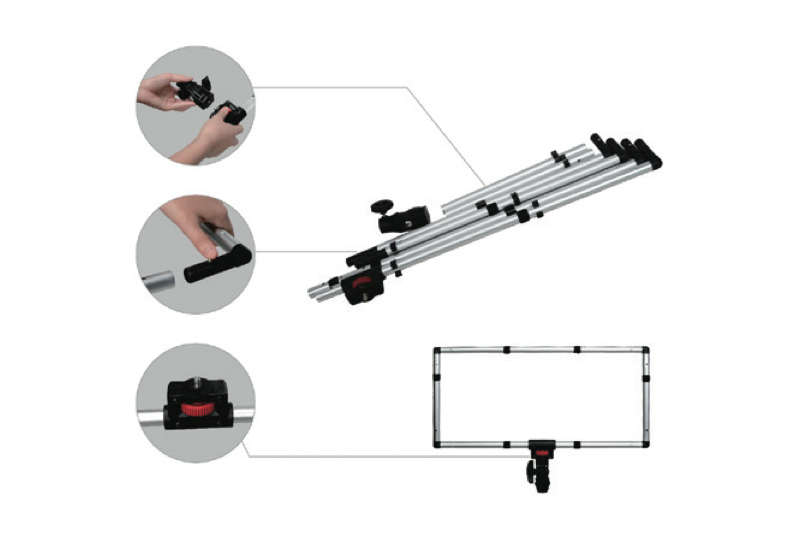

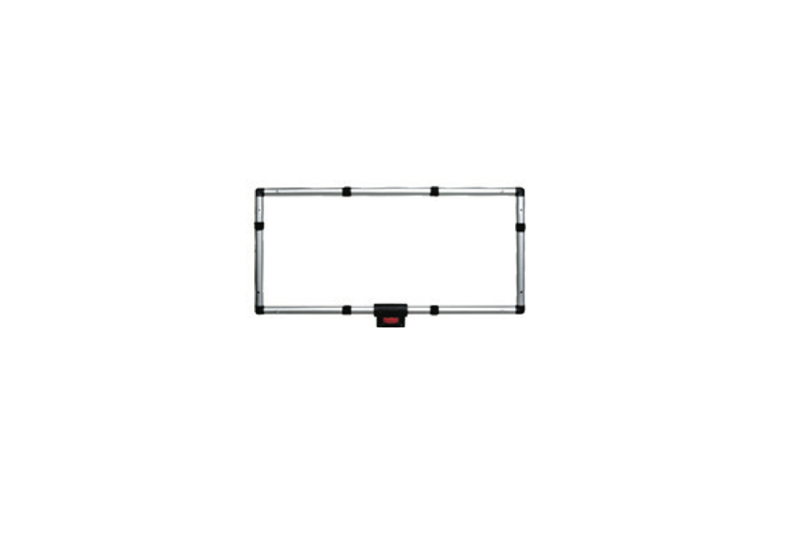

CF - Classic Frame

Single tile lightweight collapsible/portable frame.

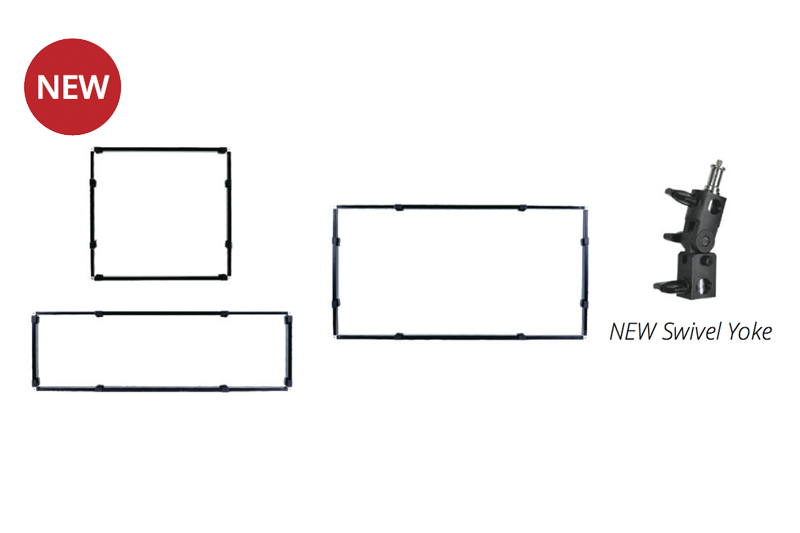

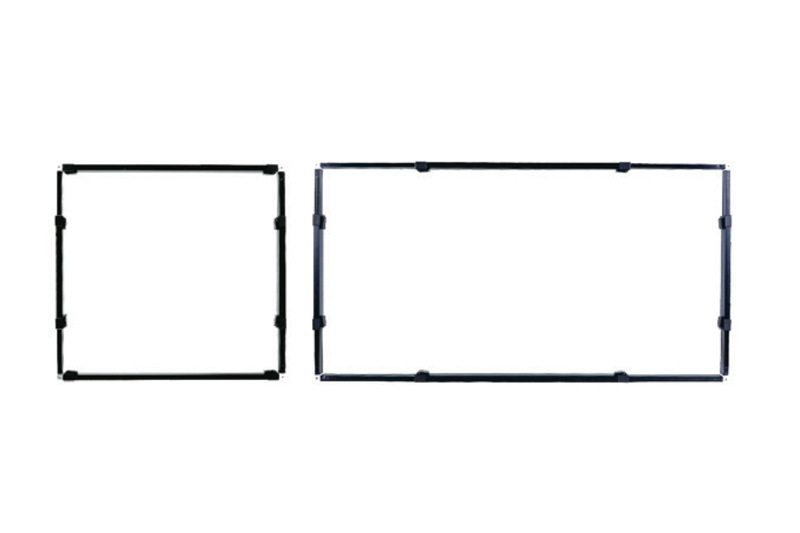

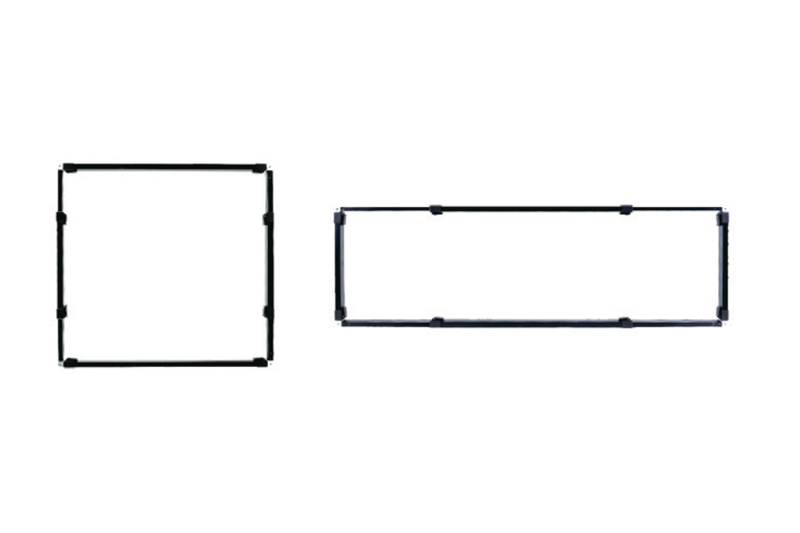

V2.0 XF eXpanding Frame

Expands to hold 2 (Dual) or 4 (Quad) tiles - simply use tabs to adjust size.

CHOOSE FROM 3 VERSATILE LED TILE TYPES.

Classic V58C Series

Dimmable, Bi-Colour, 1690 LUX

Double Power V116C Series

Dimmable, Bi-Colour, 3350 LUX

RGB Colour VM232 Series

RGB/Bi-Colour with effects, 2175 LUX

a

CHOOSE FROM 3 TYPES OF STANDARD VERSATILE LIGHT KITS.



Classic Frame Single Tile



V2 Dual Tile XF eXpanding Frame



V2 Dual/Quad Tile XF eXpanding Frame

Kit Options

Model Sku Number Kit Components
Original Classic Single 1K1
LG-V58C1K1 418101 Versatile CF Single LED Kit with AC, Controller, 1 x LED Tile, 1 x CF Frame, Backing & Diffusion
3- 2K1 XF Kits
LG-V58C2K1 425458 Versatile XF Dual LED Kit with AC, Controller, 1 x Tile, 1 x XF Frame, Dual S&Q Backing & Diffusion - Single Bright Bi-colour - total 2 Tiles 1 Frame
LG-V116C2K1 425459 Versatile XF Dual LED Kit with AC, Controller, 1 x Tile, 1 x XF Frame, Dual S&Q Backing & Diffusion - Double Bright Bi-colour- total 2 Tiles 1 Frame
LG-VM2322K1 425460 Versatile XF Dual LED Kit with AC, Controller, 1 x Tile, 1 x XF Frame, Dual S&Q Backing & Diffusion - RGB/Bi-colour- total 2 Tiles 1 Frame
3- 4K2 XF Kits
LG-V58C4K2 425465 includes: 2x LG-V58C2K1 Versatile XF Dual LED Kits - Single Bright Bi-colour + Quad Backing & Diffusion - Total 4 tiles 2 frames
LG-V116C4K2 425466 includes: 2x LG-V116C2K1 Versatile XF Dual LED Kits - Double Bright Bi-colour + Quad Backing & Diffusion - Total 4 tiles 2 frames
LG-VM2324K2 425467 includes: 2x LG-VM2322K1 Versatile XF Dual LED Kits - RGB/Bi-colour + Quad Backing & Diffusion - Total 4 tiles 2 frames

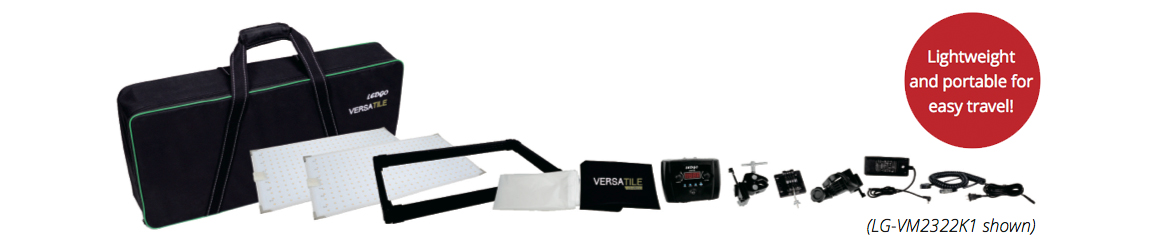

Standard kits come complete with Frame(s), Tile(s), Dimmer Controller,
Backing(s), Diffusion(s), Yoke Mount, DC Power Supply, and Soft Travel Case.

Model LG-V58C 1K1 (CF) LG-V58C 2K1 (XF) LG-V58C 4K2 (XF) LG-V116C 2K1* (XF) LG-VM232 2K1* (XF)
POWER 28.8W 57.6W 115.2W 115W 72W
COLOUR TEMPERATURE 3200-5600K 3200-5600K 3200-5600K 3200-5600K 3200-5600K, RGB
ILLUMINATION (LM) 5600K/2534LM
3200K/2407LM
5600K/5068LM
3200K/4815LM
5600K/10137LM
3200K/9630LM
5600K/10137LM
3200K/9630LM
5600K/5472LUX@1M;
3200K/5760LUX@1M
ILLUMINATION (LUX) 5600K: 675 LUX@1M;
3200K: 652 LUX@1M
5600K: 1690 LUX@1M;
3200K: 1694 LUX@1M
5600K: 2914 LUX@1M;
3200K: 2930 LUX@1M
5600K: 3350 LUX@1M;
3200K: 3370 LUX@1M
5600K: 2175 LUX@1M;
3200K: 2100 LUX@1M
DIMENSIONS 600*350*20MM 600*600*20MM
1120*350*20MM
1120*600*20MM 600*600*20MM
1120*350*20MM
600*600*20MM
1120*350*20MM
TILES 1 2 4 2 2
BACKING & DIFFUSION Single Rectangular Dual Square & Rectangular 2 sets Dual Square & Rectangular;
Single Quad Rectangular
Dual Square & Rectangular Dual Square & Rectangular

*also available as LG-V116C 4K2 or LG-VM232 4K2, All 4K kits consist of: 2x 2K1 kits plus the quad back & diffusion = total 4 tiles 2 frames with 2 controllers. So you can configure it as a two light 2K kit or a single light quad kit.

MIXED 2, 3 & 4 LIGHT VERSATILE KIT BUNDLES ARE ALSO AVAILABLE.



VERSA TILE LIGHT KIT FEATURES

  • Flexible, rainproof LED tiles
  • Dimmer and colour temperature adjustment 3200 - 5600K
  • Power with DC or optional V-mount batteries
  • VM232 adds RGB colour and effects (storm, police car, multi-flash, and more)
  • Control with dimmer or optional WiFi Hand Remote or optional WiFi Control Box with free App (512 channel assignments)
  • Use optional XF frame connectors to create large lighting walls or suspended soft banks
a

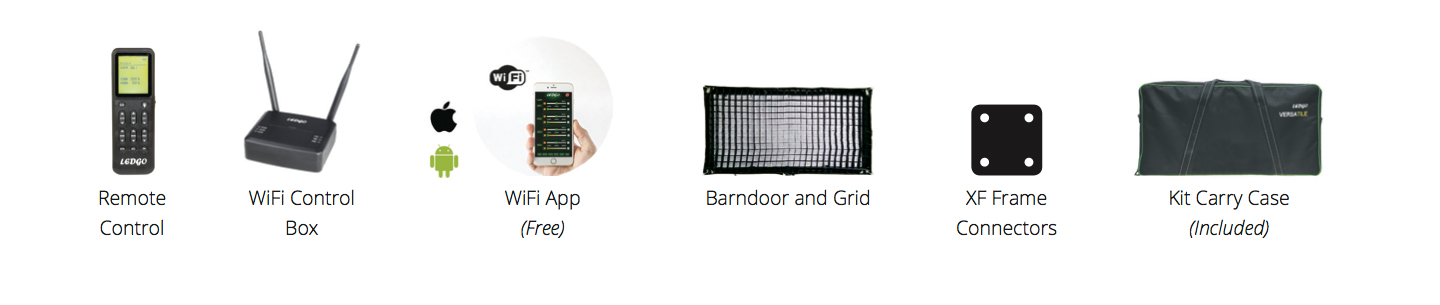

VERSA TILE OPTIONAL ACCESSORIES

a
