Lease this for: $71.05 Learn More
Unbelievable HDR, real-time Dolby Vision monitoring

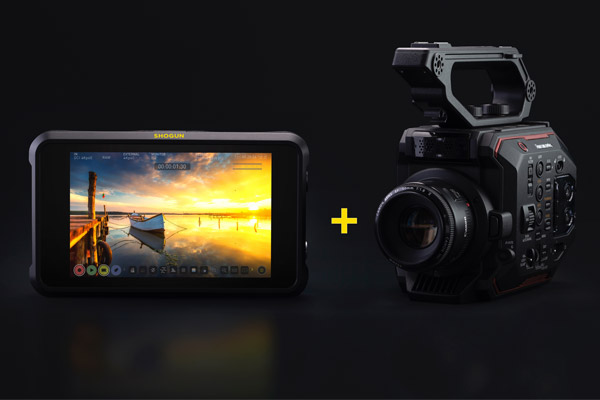

Atomos Shogun 7 is a precision HDR monitor-recorder-switcher designed for the film and video professional. It can be used as either a stand-alone field monitor, recorder and switcher for event, documentary and live in-the-field storytelling; or as a tool for large-scale on-set episodic TV, film and cinema productions where multiple crew members such as focus pullers, grips and cinematographers require a consistent visual reference across the field monitor ecosystem. Shogun 7's portable size lets you monitor, analyze and tag while on set; and check how your content will look in your audience’s home via real-time Dolby Vision output. With Shogun 7 you’re not locked into any format, camera manufacturer or pipeline. It is a completely flexible master recording and production station.
Atomos technology brings the real world to your monitor
Introducing Dynamic AtomHDR technology, designed by Atomos to yield a 1,000,000:1 screen contrast ratio. With Shogun 7 blacks and colors are rich and deep. Images appear to ‘pop’ with added dimensionality and detail. The incredible Atomos screen uses a unique combination of advanced LED and LCD technologies which together offer deeper, better blacks than rival OLED screens, but with the much higher brightness and vivid color performance of top-end LCDs. Objects appear more lifelike than ever, with complex textures and gradations beautifully revealed. In short, Shogun 7 offers the most detailed window into your image, truly changing the way you create visually.
The best HDR just got better

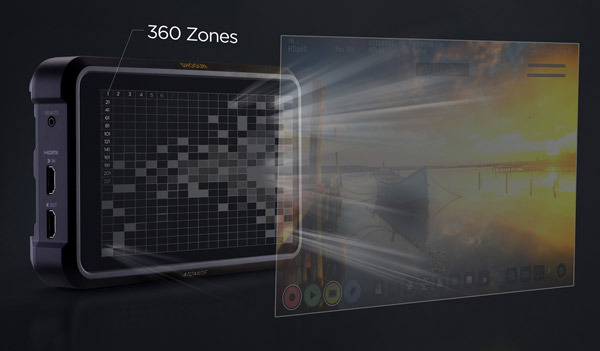

A new 360 zone backlight is combined with our new screen technology and controlled by the Dynamic AtomHDR engine to show millions of shades of brightness and color, yielding jaw-dropping results. It allows Shogun 7 to display 15+ stops of real dynamic range on-screen. The panel is also incredibly accurate, with ultra-wide color and 105% of DCI-P3 covered. For the first time you can enjoy on-screen the same dynamic range, palette of colors and shades that your camera sensor sees.
Record RAW, deliver accurate Dolby Vision HDR
The challenge with HDR production is maintaining the creative intent of the production at the time of shooting vs the finished product that is viewed on devices and TVs. Atomos and Dolby have teamed up to give you Dolby Vision live HDMI out, in real-time, from any SDI or HDMI HDR camera. All courtesy of AtomOS 10.
Simply connect your Dolby Vision capable TV or monitor to your Shogun 7 or Ninja V and magically, automatically, the AtomOS analyses the image, queries the TV, and applies the right color and brightness profiles for the maximum HDR image on the display or TV. This ensures the HDR image always looks – as it was creatively intended by the creator. This is a valuable on-set reference check for the creative director and client.
This function is also available in playback and playout from RAW and Log recorded ProRes RAW, ProRes and DNx rushes for instant time-saving, on-set and in-studio review. Utilise playback functions like slow motion, and insert edit and in and out points to speed up playlist compilation.
Live Atomos to Dolby Vision TV workflow
AtomOS 10 – pocket size monitoring & playback

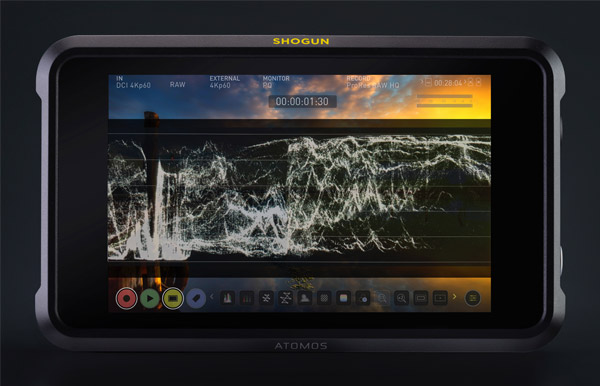

AtomOS 10 includes a redesigned touch user interface for improved HDR image viewing via our Dynamic AtomHDR engine. It allows for accurate set up and one-touch operation, a complete suit of scopes, exposure, zoom, calibration and focus tools to ensure a great recording every time.
A recording isn't complete until checked. Shogun 7 allows instant playback, slow motion and frame-by-frame analysis for immediate HDR review either on-screen or out to any Dolby Vision capable TV or monitor, playing out SDR is just as easy, you can even review them side by side.
Edit HDR in the field
Shorten the gap between capture and final edit with AtomOS real-time production tools and functions. Monitor analyze and tag shots, making the most of portability while being on the go. Record direct to the desired NLE editing/grading/transcoding formats; from camera to standard industry finishing workflows, enjoy support for Apple Final Cut Pro, Avid Media Composer and Adobe Premiere. With the new ProRes RAW metadata functions, never lose sight and have peace of mind in post-production. Playback rushes on-set on-device to the best quality display or to a TV with full Dolby Vision support.
Eliminate the need for a separate audio recorder. Add 48V stereo mics via the balanced XLR breakout cable. Select Mic or Line input levels, record up to 12 channels of digital audio from HDMI or SDI. Monitor selected stereo via the 3.5mm headphone jack. There are dedicated meters, gain controls and adjustments for frame delay.
High Speed Connections

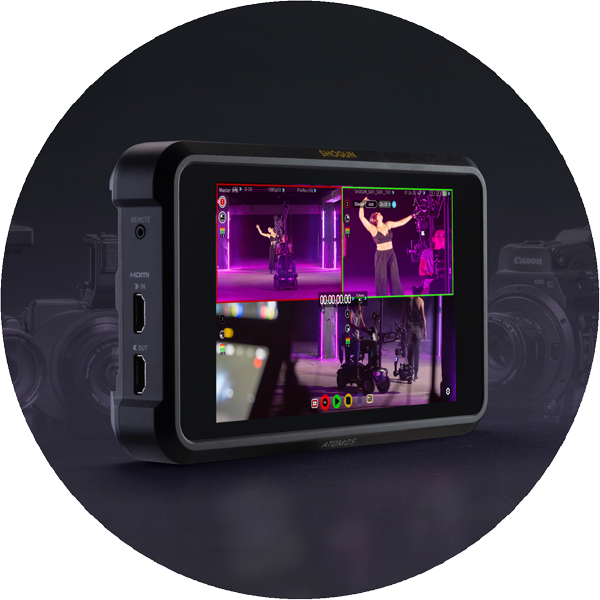

Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quad Link SDI in almost any combination and eliminate the need for specialist converters.
- 12Gb/s HDMI/SDI
- 500MB/s Record write - SATA III SSD
- 120mins Record on 2TB SSD
- 2TB Playback read - SATA III SSD
What's IncludedShogun 7 Monitor
Master Caddy II
12V-3A AC power supply
Quick Start guide
|Without batteries & media||709g / 25oz.|
|Dimensions (W x H x D mm)||214 x 127 45mm|
|Mounting points||1/4”-20 screw mount. 1x top and 1x bottom|
|Operating power||10 - 33W|
|Compatible batteries||Atomos NP-F series and supporting accessories|
|Input voltage (battery)||6.2V to 16.8V|
|Battery time (based on 2 x 7.4V)||5200mAh - up to 1.5hrs (monitor & record 4K 30p)|
|7800mAh - up to 2.2hrs (monitor & record 4K 30p)|
|DC In||1 x DC in (6.2 - 16.8V)|
|Resolution||1920 x 1280|
|Aspect ratio||16:9 native|
|Color Gamut||Up to Wide color gamut (105% DCI-P3)|
|Look up table (LUT) support||3D LUT (.cube format)|
|Anamorphic de-squeeze||2x, 1.5x, 1.33x|
|Technology||Dynamic AtomHDR zoned backlight
Dynamic AtomHDR Technology
|Zones||360 direct backlight individual LEDs|
|LEDs||Wide Color Calibrated D65 or D95|
|Bit depth||10-bit (8+2 FRC)|
|Brightness||1500nit (+/- 10%)|
|Control||On the fly real-time brightness analysis for LED control|
|HDR Conversion||Log/RAW to HLG or PQ|
HDR Monitoring Technology
|Gamma||Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm FujiFilm F-log Nikon N-Log PQ10k HLG|
|Gamut||Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon Bt2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 /|
Video Input/Loop Out
|HDMI||HDMI 1 x HDMI (2.0)|
|SDI||Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI|
|Signal||Uncompressed true 10-bit or 8-bit 422
|Genlock||Genlock input signal and output signal|
Video Output (Play Out)
|HDMI||1 x HDMI (2.0)|
|SDI||2x 4K-SDI 12G or HD-SDI 3G/6G|
|Signal||Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
Video Signal Conversion
|HDMI to SDI||-|
|SDI to HDMI||-|
Audio In/Out (48kHz PCM Audio)
|HDMI||2 or 8ch 24-bit, camera dependent|
|SDI||12ch 48kHz 24-bit|
|Audio||2ch balanced XLR analogue in/out
Dynamic range >90dB
Max signal level +24dBu
Max analogue gain +52dB
48V Phantom Power for Mic
|Headphone out||3.5mm 2ch.|
Supported Codecs & Frame Rates (Record & Playback)
|Raw to:||ProRes RAW
(CDNG up to 30p only)
FS700, FS-5, FS-7, FS-7MkII
|4K DCI; 24/25/30/50/60p
4K UHD; not supported in camera
1080; not supported in camera
|4K DCI; 24/25/30p
4K UHD; 24/25/30p
2K; not supported in camera
1080; not supported in camera
|5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)
4K DCI; 24/25/30/50/60p
4K UHD; 24/25/30/50/60p
2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera
|Supported base resolution & FPS from cameras||4K DCI: 23.98/29.9/59.94p
4K UHD: 23.98/29.9/59.94p
2K DCI: 23.98/29.9/59.94p
|Supported FPS & resolution from gaming consoles and graphic cards||1080p; 24/25/30/50/60/100/120|
|Pulldown removal||24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
|4K UHD downscale for HD monitoring||Yes - Loop-out and playback (Not available in RAW)|
|HDMI||Auto HDMI Trigger
Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard
|SDI||SDI trigger camera selectable|
|Other||LANC control - Slave|
|Playlist / Genlock / LTC||Yes / Yes / Yes|
|CDNG (Recorded content)||No support|
|ProRes (Recorded content)||All recorded files can playback. Playback in slow motion >= 100fps.|
|DNxHR / DNxHD (recorded content)||All recorded files can playback. Playback in slow motion >= 100fps.|
|Pre-roll record||Yes (HD 8s, 4K 2s)|
|Supported media||2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives|
|Master caddy case||Master Caddy II (included)
75mm x 105mm x 12mm
|Master caddy dock||2.5” SATA to USB 2.0/3.0|
|Supported applications||Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke|
