- Webcode: 435693 • Mfr: SCT5470M
Product Highlights
- Printer & Scanner
- 91 cm (36") Max. Print Width
- 2400 x 1200 dpi Max. Resolution
- UltraChrome XD2 pigment ink/4-colour Ink Type
- 22 seconds (A1/D-sized print) Print Speed
- 91 cm x 30.5 m (36" x 100') Max Scan Length
- USB 3.0, Ethernet & Wi-Fi Connectivity
- Toronto Available for Drop Shipment
- Ottawa Available for Drop Shipment
- Mississauga Available for Drop Shipment
- Calgary Available for Drop Shipment
- Edmonton Available for Drop Shipment
Overview

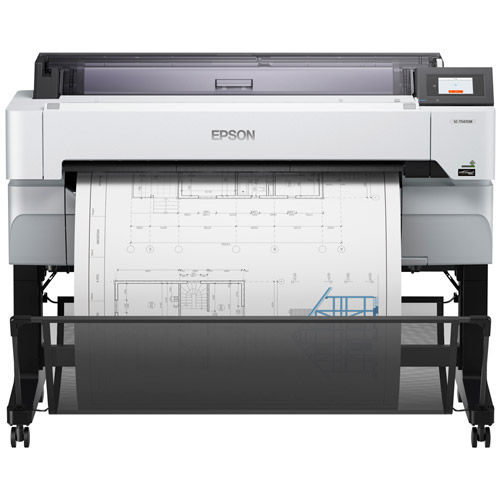

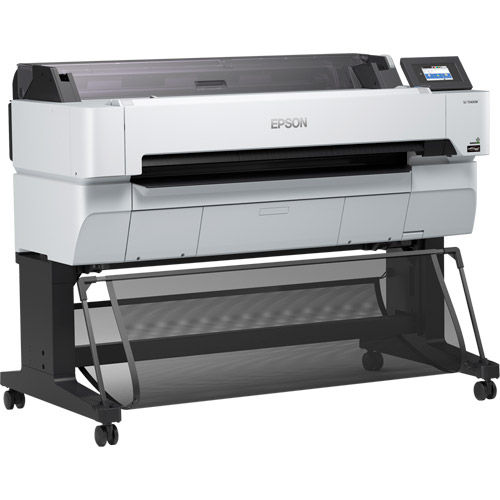

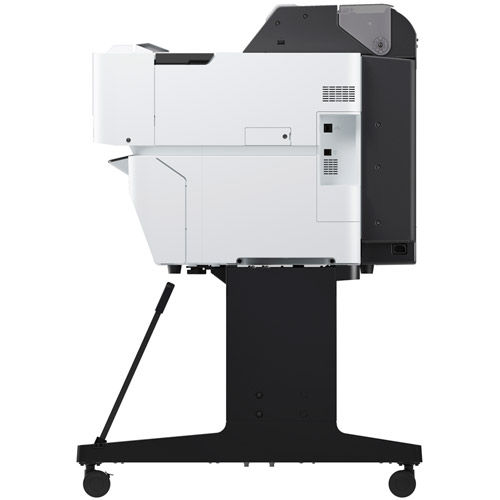

SureColor T5470M 36" Printer and Scanner
The ultra productive print/copy/scan solution for convenient collaboration.
Enhance collaboration and streamline your workflow with the SureColor T5470M. Combining a 36" printer and integrated scanner in a sleek, space-saving design, the T5470M offers a faster, multifunction solution for printing, sharing and saving your business documents. The innovative print/copy/scan combo produces accurate A1/D-size prints in as fast as 22 seconds1, making it an ideal choice for managing blueprints, charts, posters and more. It comes equipped with a variety of usability features, including an intuitive 4.3" LCD touchscreen, and is designed for use with high-capacity replacement ink cartridges. Plus, the T5470M offers versatile print options, such as easy printing from tablets and smartphones2, for enhanced flexibility and productivity.
Ultra fast print speeds
Print A1/D-size prints in as fast as 22 seconds
Fast, easy navigation
Includes a built-in, 4.3" LCD screen with touch panel.
Powerful features, small footprint
36" MFP solution in a space-saving design
Optimize your workflow
Integrated 36" scanner for easy collaboration and document sharing
Replace Ink Less Often
High-capacity cartridges up to 350 mL
Integrated Security
Protect your information with advanced network security and encryption
Versatile printing options
Easily print direct from USB thumb drives, tablets, smartphones and more2 with integrated wireless plus router-free Wi-Fi Direct® printing
Outstanding image quality
PrecisionCore® MicroTFP® printhead with Precision Droplet Control for crystal-clear images, precise lines and crisp text
Vibrant, durable prints
Next-generation UltraChrome® XD2 archival pigment ink for high-quality printing
Industry-leading reliability
Permanent printhead with advanced Nozzle Verification Technology, plus world-class service and support, including a 1-year limited warranty
Eco Features:
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay® Transport Partner
What's Included
SureColor T5470M 36" Printer and ScannerPrinter Stand
UltraChrome XD2 T41W Cyan Ink Cartridge (110mL)
UltraChrome XD2 T41W Magenta Ink Cartridge (110mL)
UltraChrome XD2 T41W Yellow Ink Cartridge (110mL)
UltraChrome XD2 T41W Black Ink Cartridge (110mL)
Start Here Poster
User Guide
AC Power Cable
Reviews
Product Specifications
SureColor T5470M 36" Printer and Scanner |
|
|---|---|
|
|
|
| Printing Technology | PrecisionCore MicroTFP 4-channel, drop-on-demand printhead |
| Minimum Ink Droplet Size | 4 picoliters; Variable Droplet Technology can produce up to three different sizes per line |
| Maximum Print Resolution | 2400 x 1200 dpi |
| Print Speed | A1/D-sized print: 22 seconds |
| Nozzle Configuration | Colour and monochrome heads; 800 nozzles x 4 channels |
Ink |
|
| Ink Type | UltraChrome XD2 pigment ink; 4-colour (C, M, Y, K) |
| Replacement Ink | Ink Cartridge (110 ml)
Ink Cartridge (350 ml)
|
Printable Area and Accuracy |
|
| Minimum Paper Width | Roll: 10" Sheet: 8.27" |
| Minimum Cut-sheet Size | 8.27 x 11" |
| Maximum Paper Width | 36" Wide |
| Maximum Printable Length | Limited by application, OS and driver/RIP used |
Scan Features |
|
| Copy/Scan Modes | Text/Line Drawing Tracing Paper Recycled Paper Blueprint Inverted Blueprint Poster Watercolour Drawing Reduction / Enlargement: 25% to 400% Max. copies: Up to 99 |
Scanner Specs |
|
| Scanner Type | CIS with RGB filters |
| Scanner Features | Scan to Network Folder Scan to FTP Server Scan to Email Scan to USB File types supported: PDF / TIFF / JPEG Security features: Encrypted PDF Support |
| Maximum Scan Area | Max width: Up to 36 inches Max length: Up to 100.06 feet |
| Scanning Speed | Colour: Up to 4.5 ips Mono: Up to 7.5 ips |
Sheet Media Handling |
|
| Single Sheet, Top-loading | Up to 36" wide |
| Left/Right Margins | 0 to 3 mm each (0.24" total) |
Roll Media Handling |
|
| Single Roll-to-Roll / Top-loading Roll | 36" Wide |
| Media Core | 2” or 3" User-adjustable roll media adapters |
| Maximum Roll Diameter | Up to 6.6" |
| Media Thickness | Up to 11.8 mil |
| Roll Cutting | High-speed internal rotary cutter; auto or manual |
| Roll Paper Remaining | The amount of remaining paper can be controlled from the control panel |
| BorderFree Print Widths | 10.0", 11.8", 13.0", 16.0", 17.0", 19.7", 20.3", 23.0", 24.0", 27.6", 28.7", 33.1", 36.0" |
Printer |
|
| Display | 4.3" Touchscreen |
| Printer Language | Epson ESC/P® raster HP-GL/2, HP RTL |
| Interfaces | SuperSpeed USB (compatible with USB 3.0 specification), USB Direct, Wireless LAN IEEE (802.11 b/g/n)4, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct |
Power |
|
| Rated Voltage | AC 110–240 V |
| Rated Frequency | 50–60 Hz |
| Power Consumption | Printing: Approx. 38 W Ready: Approx. 13 W Sleep: approx. 1.3 W Power Off (Stand By): 0.25 W |
| Rated Current | 2.8 A |
Epson Intelligent Ink Cartridges |
|
| In-box Cartridge Fill Volume | C, M, Y, K: 110 mL |
| Retail Cartridge Fill Volume | C, M, Y, K: 110 or 350 mL |
| Ink Cartridge Shelf Life | 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink. |
General |
|
| Operating Systems | macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP |
| Eco Features | ENERGY STAR® qualified, RoHS compliant, Recyclable product8, Epson America, Inc. is a SmartWay® Transport Partner |
| Safety Approvals | UL (MET), FCC (Class A), CSA, CE, EMC |
| Country of Origin | Indonesia |
| Warranty | Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday |
Physical Specs |
|
| Temperature | Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C) |
| Humidity | Operating: 20–80% (no condensation) Operating (Recommended): 45–60% (no condensation) Storage: 5–85% (no condensation) |
| Sound Level | Operating: Approx 50 dB(A) Sleep: Approx 32 dB(A) |
| Dimensions | 1385 x 696 x 1060 mm (55 x 28 x 42") * With stand |
| Weight | 76 kg (168 lbs) * With stand |
