  • Webcode: 439470 • Mfr: CV630-IP
Product Highlights
  • 8 MP 1/2.5" Sensor
  • HDMI / 3G-SDI / Ethernet / BNC Output
  • Up to UHD 4K Max. Resolution
  • 30x Optical Zoom
  • 340° / 120° Pan / Tilt
Marshall Electronics CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera (White) Marshall Electronics CV630-IP Broadcast Pro AV UHD ...
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $104.90 Learn More

Overview

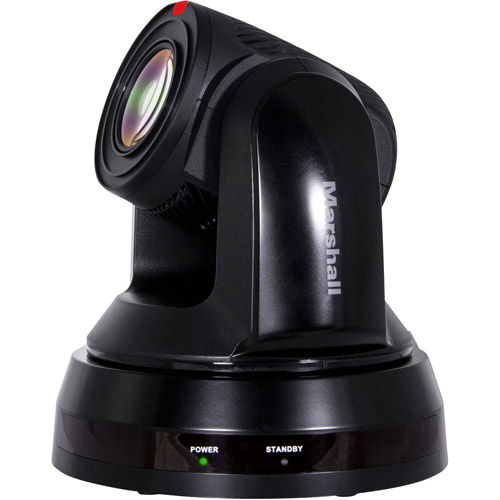

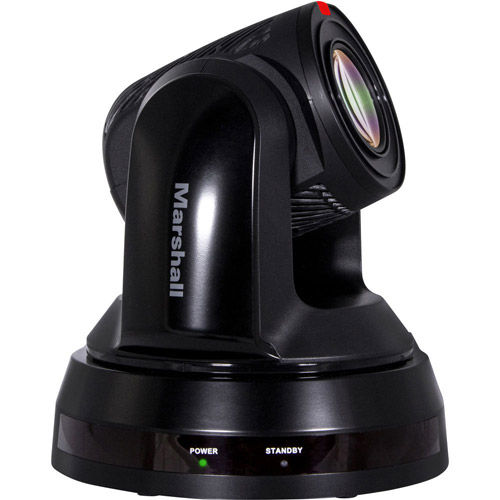

CV630-IP Broadcast Pro AV UHD PTZ Camera

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.

High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

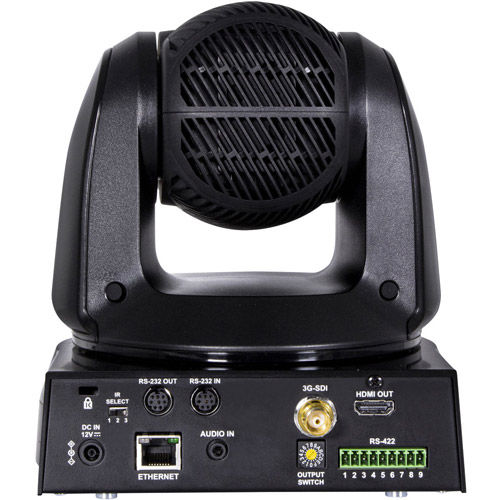

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms. Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

Reviews

Product Specifications

CV630-IP Broadcast Pro AV UHD PTZ Camera

Sensor 8 MP 1/2.5"
Optical Zoom 30x (4.6 ~ 135mm)
Outputs Ethernet / 3G-SDI / HDMI / IP Simultaneous outputs
Max. Resolution 3840x2160p, 1920x1080p, and 1280x720p
Pan / Tilt 340° / 120°
Protocol Free-D
CGI
