- Webcode: 442163 • Mfr: 320900000
Product Highlights
- Capture HDMI + Embedded Audio
- HDMI Loop-Through
- HDMI 2.0, 4Kp60 4:4:4 Input Support

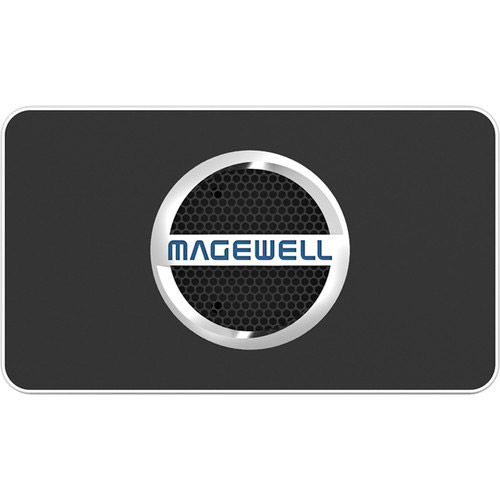

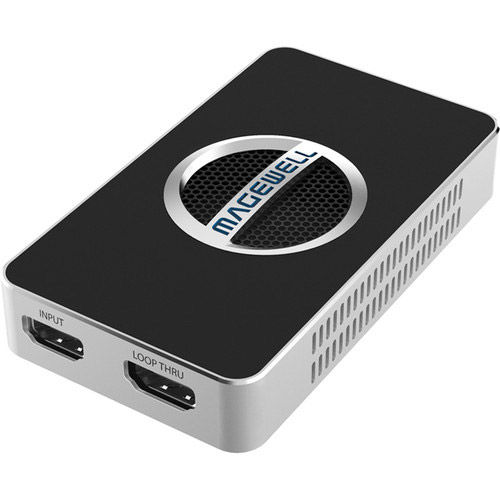

Magewell USB Capture HDMI 4K Plus
Magewell USB Capture HDMI 4K Plus
$759.99
Add to Cart
Web Availability:
Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See the Availability Guarantee at the bottom of this page or click here for more info.
Overview
USB Capture HDMI 4K Plus
One-channel 4K capture device
Key Features:
- Capture HDMI + embedded audio
- Loop-through HDMI signal
- Audio input via mic
- Extract HDMI embedded audio output via headphones
- Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S
What's Included
USB Capture HDMI 4K PlusUSB 3.0 Cable
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
USB Capture HDMI 4K Plus |
|
|---|---|
| Supported OS | Windows
|
| Recommended OS (tested) | Windows
|
| Supported APIs | Windows
|
| Compatible Software | Zoom Skype Mircosoft Teams GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software |
| Input Interfaces | HDMI
|
| Host Interface | USB 3.0
|
| Output Interface | 3.5mm audio jack
|

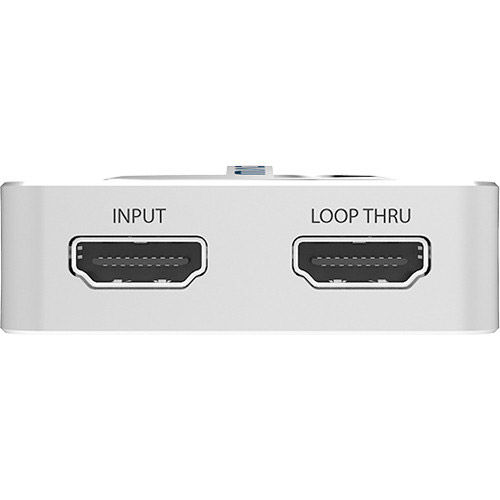

| Loop-through Interface | HDMI
|
| Input feature | Support for input video resolutions up to 4096x2160 |
| HDMI Specific Features | 600MHz HDMI receiver Adaptive HDMI equalizer Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for up to 4096x2160 4:4:4 60fps input signals Support for 2 channel IEC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |

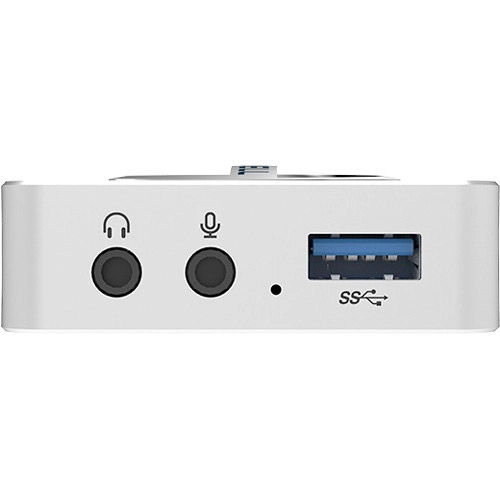

| Analog Audio Features | Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out Capture of analog audio via 3.5 mm microphone interface Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer. |
| Video Capture format | Support for capture resolutions up to 4096x2160 Support for capture frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB3.0 controller are as follows.)
Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096x2160) Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048x2160) The default capture formats are YUY2 & NV12. More capture formats can be set using USB Capture Utility. |
| Video Processing Features | Video processing pipelines with 640 Mpixels/s processing bandwidth Video cropping Video scaling Video de-interlacing
Vertical flip and mirror |
| Multiple devices on one computer | Support for connecting multiple USB devices to one system Support for setting the device serial number as the device name shown in the system using USB Capture Utility |
| SDK | The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc. |
| Firmware Upgrade | Multiple devices in one system can be upgraded simultaneously |
| LED Indicator | Status LEDs indicate the working state of each channel:
|
| Power Consumption | 5V max current: ~ 1.4A Max power consumption: ~ 7W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
| Form Factor (LxWxH) | 98.1 x 56.8 x 17 mm (3.9 x 2.2 x 0.7") |
