- Webcode: 442420 • Mfr: SE-500HD
- FREE SHIPPING Available
Product Highlights
- Full HD / SD Supported Formats
- 4 Video Inputs
- 2 Video Outputs
- HDMI Inputs / Outputs
- Stereo RCA / 2x Mono microphone / Stereo headphone Audio Inputs / Outputs
- 12 VDC Power
- 2 kg (4 lbs) Weight
- 40 x 25 x 8 cm (16 x 10 x 3") Dimensions

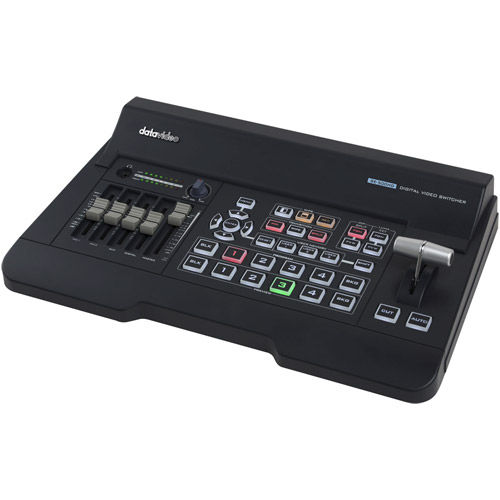

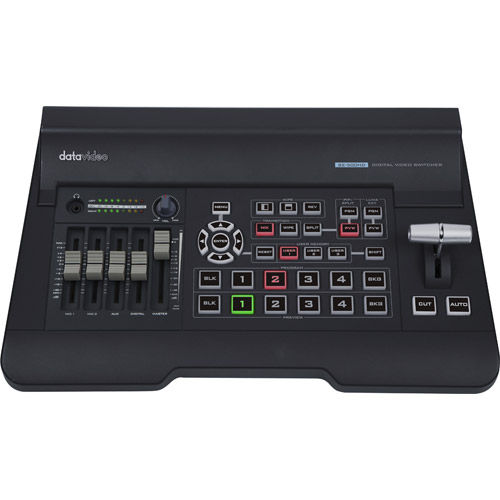

Datavideo SE-500HD 4 Input HDMI 1080p Video Switcher with Built-in Audio Mixer
Datavideo SE-500HD 4 Input HDMI 1080p Vi...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $84.00 Learn More
Overview
4-Channel HDMI Video Switcher
Supports up to Full HD 1080P (4:4:4, 10-bit)
Scale mixed resolution/standards inputs up to 1080p. 4:4:4 sampling at 10-bit
HDMI 1080p switching with advanced features, at a fraction of the cost
Don't let the SE-500HD fool you with its affordability and compact design. This 1080p switcher comes loaded with features such as luma key for graphic overlays, split screen for podcast interviews, and PiP for Powerpoint presentations.
Built-in audio mixer
The SE-500HD's built-in audio mixer means that you've got everything you need to control your audio input levels. For most productions, this means that there's no need to buy a separate external audio mixer.
Supports lumakey for titles
With built-in lumakey, user can use PPT to easily create titles by graphic overlays.
User memories
You can save a complex process into a user memory, turning multiple tasks into a one-finger job.
Supports Vertical video multiview
It's an ideal solution for the videos on social media. The vertical video is more favorable while playing on the mobile device.
Professional 10-bit processing switcher
Providing you the best and professional quality of video processing.
What's Included
SE-500HD productAD Switch DC 12V with AC Cord
Reviews
Product Specifications
SE-500HD HDMI Video Presentation Switcher |
|
|---|---|
| Video Standard | Full HD & SD |
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i 50Hz 480i 59.94Hz |
| Video Processing | HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 |
| Video Input | 4x HDMI |
| Mix HD & SD Source | Yes |
| Computer Graphic Interface | 4 via HDMI |

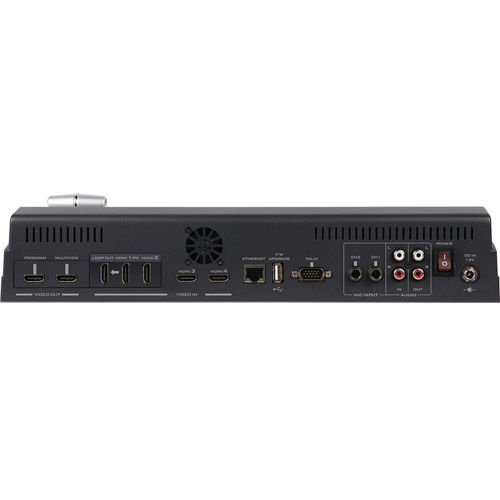

| Video Output | 2 x HDMI (1 is MV, 1 is PGM) HDMI 1 (PC) Loop Out |
| Down-converted Output | Yes |
| Built-in Multi-view Monitoring Out | HDMI |
| Analogue Audio Input | Stereo RCA (L/R) 2x Mono Microphones |
| Analogue Audio Output | Stereo RCA (L/R) Stereo headphone (Mini Jack with volume control) |
| Embedded Audio Support | Input 2 channels, Output 2 channels |
| A+V Switching | Yes |
| USK | Lumakey |
| Picture in Picture | 1 |
| Effects | FTB, Cut, Wipe with border |
| Sync / Reference In/Out | Built-in Genlock (internal) |
| Tally Output | D-sub 15pin, dual color |
| Built-in Audio Mixer | Yes, 4 Channels |
| Special Features | Built-in video scaler for mixed resolution inputs |
| Chassis | Unibody |
| Weight | 1.7 kg (3.7 lbs) |
| Dimensions | 40 x 25 x 8 cm (16 x 10 x 3") |
| Power | DC 12 V / 29 W |
| Operating Temperature Range | 0~40 °C |
| Options | CB-46/47/60/61/62 |
