Product Highlights
- HDC / HSC Series Broadcast Camera Compatibility
- 8x SDI / 4x 3G-SDI Outputs
- 12G-SDI Interface
- 100-240 VAC Power Source

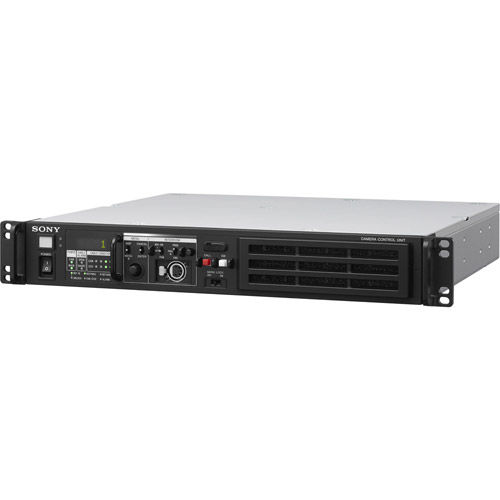

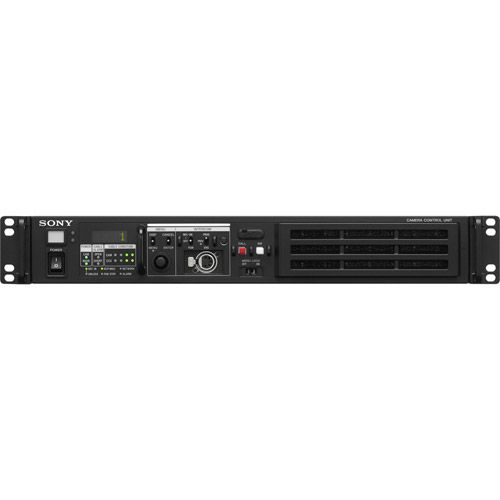

Sony HDCU-3100L HD Fiber Camera Control Unit
Sony HDCU-3100L HD Fiber Camera Con...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $721.50 Learn More
Overview
HDCU-3100L Camera Control Unit
Add IP production capabilities to system cameras
The HDCU-3100 camera control unit adds IP capabilities to our full range of broadcast and studio system cameras, from the flagship 4K HDC-4300 to the HDC-2000/1700 series and HSC fibre system cameras. Connecting to compatible cameras via optical fibre cable, the compact HDCU-3100 supplies power to the camera, performs signal processing and provides an interface with external equipment. Combined with the HKCU-SFP30 option board, designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, the HDCU-3100 camera control unit supports essential functionalities required for live IP production including tally, intercom and return. By installing the optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected with an HDC-Series System Camera. In addition, adding the optional 12G-SDI Interface Kit HKCU-SDI30 allows transfer of 4K signals through a single BNC cable.
Compact and versatile
The 1.5 RU-size Camera Control Unit creates a standardised 19-inch rack system that is ideal for space-limited production areas.
IP functionality for live production
The optional HKCU-SFP30 interface kit adds essential functionality required for IP live production such as Tally, Intercom and Return.
Eight built-in SDI outputs
The HDCU-3100 is equipped with eight built-in SDI outputs, including four 3G-SDI outputs. A built-in USB connector slot and support of 12G-SDI will both be available in future updates.
4K output option
By installing an optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected to an HDC-Series System Camera. In addition the HDCU-3100 with an optional 12G-SDI Interface Kit HKCU-SDI30 can transfer 4K signals through a single BNC cable.
High quality long distance signal transmission
The optical fibre transmission system maintains high picture quality across cable runs of up to 2000 m. Combined with the HKCU-SM30 interface kit, the compact HDCU-3100 can be directly connected on Single Mode Fibre (SMF) for long distance transmission up to 10 km, making it ideal for space-limited operations like OB Trucks.
MENU setting from web browser
The CCU support menu control from web browser. The status monitoring of multiple CCU, setting file import/export and remote firmware update enhance the efficiency and convenience of the operation.
What's Included
Number PlateBefore Using this Unit
Reviews
Product Specifications
HDCU-3100L Camera Control Unit |
|
|---|---|
| Power Requirements | 100 V to 240 V AC, 50/60 Hz |
| Current Consumption | 4.5 A (max.) |
| Operating Temperature | 5 °C to 40 °C (41 °F to 104 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Weight | Approx. 7.3 kg (16 lb. 1.5 oz.) |
| Camera | Optical fiber connector (x1) |
| INTERCOM/TALLY/IO PORT | D-sub 50-pin connector (x1) INTERCOM (PROD/ENG), 4 W: 0 dBu, RTS: 0 dBu, CC: –14 dBu PGM, 3 systems, 0 dBu/–20 dBu TALLY (R, G, Y) FLAG |
| RCP / CNU | 8-pin multi-connector (x1) |
| TRUNK | 12-pin (x1) |
| LAN-COM | 8-pin (x1) |
| NETWORK TRUNK | 8-pin (x1) |
| SDI OUT | SDI OUT 1 to 4 : 3G/HD/SD SDI OUTPUT BNC (x4) 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbps |
| SDI I/O | SDI I/O 1 to 4 : 3G/HD/SD SDI I/O BNC (x4) 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270Mbps |
| SDI RET | SDI RET 1 to 4 : BNC (x4) 3G-SDI: SMPTE ST424/425, 2.970 Gbps/2.967 Gbps HD-SDI: SMPTE ST292, 1.485 Gbps/1.4835 Gbps SD-SDI: SMPTE ST259, 270 Mbps |
| Reference In/Out | BNC (x2), loop-through output HD: 3-level sync, 0.6 Vp-p, 75 Ω, SD: 2-level sync, 0.3 Vp-p, 75 Ω |
| PROMPTER 1 PROMPTER 2/VBS-RET |
BNC (x2), loop-through output during 1CH mode, terminate internally at 75 Ω during 2CH mode, analog signal, 1.0 Vp-p, 75 Ω |
| AUDIO OUT | AUDIO OUT CH1, CH2 : XLR 3-pin, male (x2), 0 dBu/–20 dBu/+4 dBu |
| CHARACTER / AES / EBU | BNC (x1), VBS: 1 Vp-p, 75 Ω, AES/EBU: 0.5 Vp-p, 75 Ω |
| AC/IN | 100 V to 240 V AC (x1) |
