MSU3500 Half Rack Master Setup Unit
No Reviews Q & A
Write your Review
Product Highlights
  • HDC Series Camera Compatibility
  • 7" LCD Display
  • 1000Base-T Ethernet LAN Connection
Sony MSU3500 Half Rack Master Setup Unit Sony MSU3500 Half Rack Master Setup...
$19,810.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $707.22 Learn More

For Québec residents: See the Availability Guarantee at the bottom of this page or click here for more info.

Overview

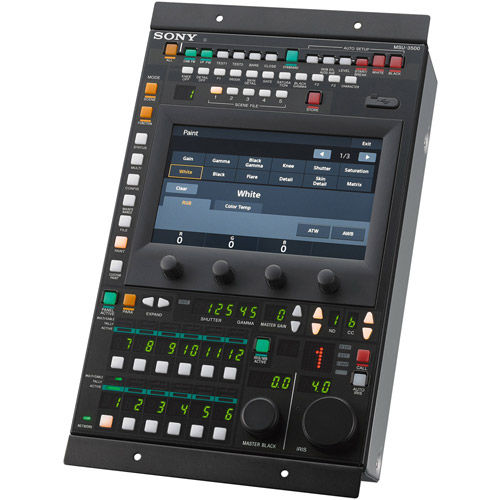

MSU-3500 Half Rack Master Setup Unit

The MSU-3500 master setup unit allows intuitive control and maintenance for the connected Sony HDC series system cameras.

Sharing the same compact vertical form factor and familiar ergonomics as the MSU-1500, the MSU-3500 fits a 9.5-inch EIA rack (half rack mount size). It can control multiple camera systems via either 1000Base-T LAN, or a single camera by direct peer-to-peer connection via Sony CCA cable. Operability is enhanced via a new touchpanel with improved visibility plus additional LED indicators and assignable keys. The menu page gives direct access to camera, CCU and BPU functions for greater usability and expandability.

Flexible, scalable system configuration

The MSU-3500 can be configured for use with large and small-scale camera control systems, sharing the same mechanical dimensions and interface system as the MSU-1500 model. A MSU-3500 can flexibly control up to 96 units of HDC Series system camera.

Customizable Switches

Functions and Menu can be mapped to the assignable keys via the Menu Control page, allowing quick and easy access. There are 3 assignable keys on the panel. This is available via SW Customize menu with the categorized items.

USB flash drive

The MSU's settings can be saved or loaded via USB flash drive. CAM/CCU/BPU Scene files/Reference files can also be saved, and for the HDRC-4000's HDR Production Converter Unit the All Setting file can be saved.

New LCD touchpanel

The large LCD touchpanel features a new 7-inch WVGA (800x480) panel with improved visibility.

High speed LAN connection

The MSU-3500 supports connectivity via 1000Base-T Ethernet LAN in addition to a single connection by Sony CCA 8-pin cable.

Web UI application

Allows convenient remote operation for MSU initial settings from a remote networked PC with intuitive user interface (UI).

Status indication

By the Status key, the connected camera/CCU/BPU's alert status can be indicated on the LCD panel if it occurs. Some of the setting status can be also indicated.

For Québec Residents – Disclosure Under the Consumer Protection Act

In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.

Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.

Click here for more info.

Reviews

Product Specifications

MSU-3500 Half Rack Master Setup Unit
Power Supply AC 100 - 240 V 50/60 Hz 0.30 A (Max.)
DC 10.5 - 17 V 2.3 A (Max.)
Operating Temperature 5 °C to 40 °C (41 °F to 104 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Mass Approx. 3.4 kg (7 lb. 8 oz.)
Dimensions 204 x 310 x 67 mm (8 1/8 x 12 1/4 x 2 3/4 inch) (excluding protrusions)
LAN RJ-45 8pin (x1)
1000BASE-T, 100BASE-TX, 10BASE-T
Remote CCU / CNU Multi-connector 8-pin, female (x1)
Aux Multi-connector 8-pin, female (x1)
I/O Port D-Sub 50-pin, female (x1)
AC In 3-pin (x1)
DC In XLR 4-pin (x1)
