- Webcode: 446482 • Mfr: CV612HT4K
Product Highlights
- 9 MP 1/2.3" UHD Sensor
- f/1.8 - f/2 Aperture Range
- 3.0 lux Min. Illumination
- Up to 3840 x 2160p (UHD) Max. Resolution
- HDBaseT / HDMI Interface
- 12 / 12 Optical / Digital Zoom
- 1/1 - 1/10,000 sec Shutter Speed
- -170° ~ +170° Pan Range
- -30° ~ +90° Tilt Range

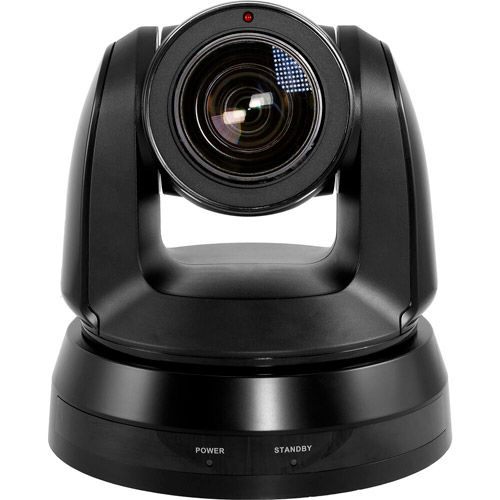

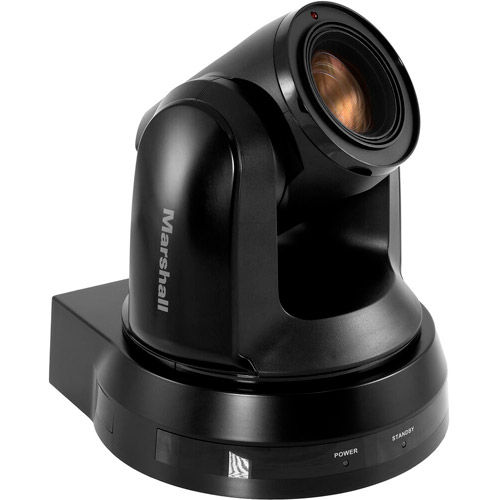

Marshall Electronics CV612HT-4K 12x UHD30 HDI/HDBT PTZ Camera
Marshall Electronics CV612HT-4K 12x UHD30 HDI/HDBT ...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $88.10 Learn More
Overview
CV612HT-4K 12x UHD30 HDI/HDBT PTZ Camera
Marshall Electronics Broadcast ProAV 4K PTZ HDBaseT/HDMI Camera is built around a 4K UHD 9 Megapixel 1/2.8-inch sensor with durable and smooth simultaneous Pan-Tilt-Zoom operation. One Cat5e/6 cable carries PoE (48V), uncompressed 4K video, and command control to camera. Remote operation and control using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use.
Key Features:
- 1/2.3" 9MP UHD Sensor
- 4K/UHD/HD: 3840x2160p(UHD), 1920x1080p(HD),
- 1920x1080i(HD) & 1280x720p
- High Speed: 59.94, 50, 29.97, 25fps (NTSC/PAL)
- Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical - 12x digital
- Wide Angle-of-View @ 3.9mm - 74° Panoramic AOV
- Pan Range: -170° ~ +170°, Tilt Range: -30° ~ +90°
- 128 preset locations with variable transition speeds
- Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
- HDBaseT (uncompressed), HDMI outputs
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- Compatible with integrated video conferencing systems (VISCA/PELCO)
- PoE (IEEE802.3af) over HDBaseT (Cat5e/6) - one Cat5e/6 hookup to camera
- Tally Light on front camera panel
Reviews
Product Specifications
CV612HT-4K 12x UHD30 HDI/HDBT PTZ Camera |
|
|---|---|
| Sensor | 1/2.3” 9MP CMOS |
| Video Output | 3840 x 2160p @ 29.97 / 25 fps 1920 x 1080p @ 59.94 / 50 fps 1920 x 1080i @ 59.94 / 50 fps 1280 x 720p @ 59.94 / 50 fps NTSC / PAL |
| Optical Zoom | 12x |
| Clear Image Zoom | 1.67x (4K:20x) 2.0x (1080P:24x) |
| Digital Zoom | 12x |
| Video Output Interface | HDBaseT, HDMI simultaneous |
| Horizontal Viewing Angle | 74° at widest |
| Panning Angle | -170° ~ +170° |
| Tilting Angle | -30° ~ +90° |
| Preset Positions | 128 savable |
| Panning Speed | 300°/sec |
| Tilting Speed | 300°/sec |
| Video S/N Ratio | > 50 dB |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Focal Length | f = 3.9mm~46.8mm |
| Aperture | F1.8 ~ F2.0 |
| Tally Light | Yes |
| PoH (PoE over Cat6e) | Yes (IEEE802.3af) |
| Camera Control Interface | RS-232/ RS-422 |
| Camera Control Protocol | VISCA, PELCO D |
| Minimum Illumination | 3.0 lux (F1.8, 50 IRE, 30 fps) |
| Minimum Object Distance (MOD) | 10mm (Wide) ~ 1500 mm (Tele) |
| Gain Control | Auto, Manual |
| White Balance | Auto, Indoor, Outdoor, One-Push, Manual |
| Exposure Control | Auto, Manual |
| Focus System | Auto, Manual |
| Image Flip / Joystick Flip | Yes |
| 3D NR | Yes |
| Weight | 2 kg (4.4 lbs) |
| Dimensions | 18.6 x 17.4 cm (7.3 x 6.8") |
