Product Highlights
  • 4-Way True Diversity Antenna Splitter/Combiner
  • SpeechLine Digital Wireless Microphone Compatibility
  • 1880 - 1930 MHz Frequency
  • 10x RP-SMA Connection
  • 1.5 W Power
  • 8 dB Attenuation
Sennheiser SL PASC 4 Passive 4-way True Diversity Antenna Splitter/combiner for SpeechLine Digital Sennheiser SL PASC 4 Passive 4-way True D...
$1,095.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

SL PASC 4 True Diversity Antenna Splitter/Combiner

The SL PASC 4 is a passive 4-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 4 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.

Key Features:

  • 1880 - 1930 MHz (DECT range)

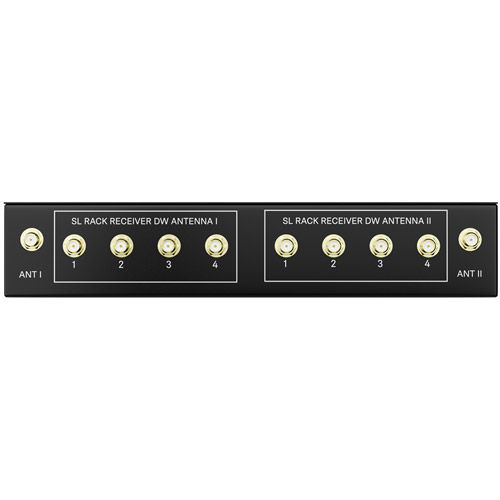

  • 8 RF outputs for connecting up to 4 SL Rack Receiver DW units
  • 2 RF inputs to connect AWM 2 or AWM 4
  • SMA-RP connectors
  • Passive antenna combiner / splitter

What's Included

SL PASC 4 True Diversity Antenna Splitter/Combiner
SL PASC 4
8x SMA-RP Cable (length 50 cm)
Quick Guide
Safety Guide

Reviews

Product Specifications

SL PASC 4 True Diversity Antenna Splitter / Combiner
Dimensions 21 x 16 x 4.1 cm (8.2 x 6.2 x 1.6")
Weight 663 g (23.3 oz)
Attenuation 8 dB typ
Operating Temperature -40 to 85°C
Colour Black
Frequency 1880 - 1930 MHz
Frequency Band DECT
Antenna Connector 10x RP-SMA (AC Coupled)
Input Power 1.5 W Max
Max. Number of Connected Receivers 4
