AK-HVF75GJ 17.8 cm (7 inches) LCD Color Viewfinder
No Reviews Q & A
Write your Review
Product Highlights
  • AK-HVF75GJ Colour Viewfinder
  • 1280 x 800 (WXGA) Max. Resolution
  • 400 nits Brightness
  • 800:1 Contrast Ratio
  • D-Sub 29-Pins Connection
  • LCD Display
  • 12 VDC Power Source
Panasonic AK-HVF75GJ 17.8 cm (7 inches) LCD Color Viewfinder Panasonic AK-HVF75GJ 17.8 cm (7 inches) ...
$8,559.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $314.12 Learn More

Overview

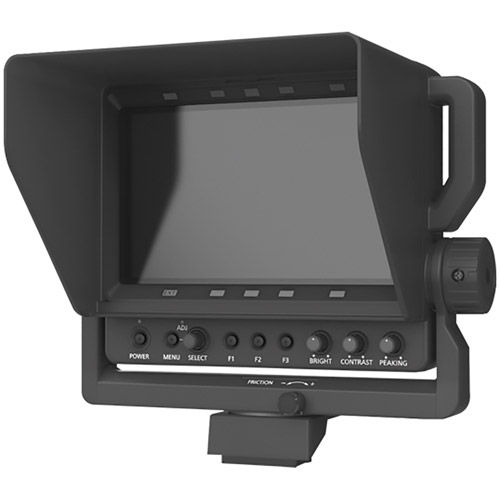

AK-HVF75GJ LCD Colour Viewfinder

The AK-HVF75GJ LCD colour viewfinder weighs in at just 1.8 kg (4 lbs), with low power consumption and high resolution. Equipped with advanced assist functions.

Key Features:

  • Equipped with 1280 x 800 (WXGA) resolution 17.8 cm (7 inches) color LCD panel.
  • Wide horizontal/vertical viewing angle of 176°, screen brightness of 400 nits and contrast of 800:1.
  • Equipped with focus assist functions (Focus in Red, Pixel to Pixel).
  • Direct camera menu control is possible.
  • Equipped with three assignable function switches.
  • Contrast, brightness, and peaking can be adjusted.
  • Tilting (90° up, 60° down) and panning (90° left and right) is possible.

Reviews

Product Specifications

AK-HVF75GJ LCD Colour Viewfinder

General


Power DC 12 V (supplied from camera)
Power Consumption 11 W
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F )
Storage Temperature −20 °C to 60 °C (−4 °F to 140 °F)
Operating Humidity 10% to 85% (no condensation)
Weight Approx. 1.6 kg (3.53 lbs.) (not including hood)
Dimensions (W x H x D) 243.5 mm x 212 mm x 85 mm
(9-19/32 inches x 8-11/32 inches x 3-11/32 inches)
(not including hood)
243.5 mm x 212 mm x 172 mm
(9-19/32 inches x 8-11/32 inches x 6-25/32 inches)
(including hood)

Display Panel


Dimensions 7.0 inches
No. of Pixels 1280 x 800 (WXGA)
Display Colour Approx. 16.77 million colors

Switch Function/Connector


Operation <POWER> switch, <MENU> button, <SELECT> dial button,
<F1>/<F2>/<F3> buttons, <BRIGHT> knob, <CONTRAST> knob,
<PEAKING> knob
Connector Camera I/F connector (D-sub 29 pins x 1)

Switch Function/Connector


CAM 1080/59.94i, 1080/50i
