Vaxis Atom A5 Monitor

Atom A5 Monitor

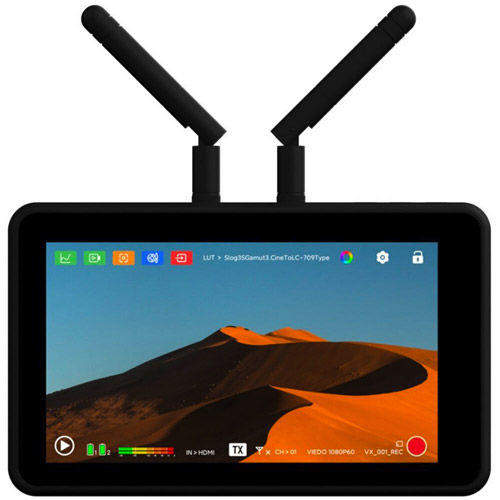

Transmit, receive, monitor, and record high-quality wireless video transmissions using this compact Atom A5 5.5" Wireless RX/TX Monitor from Vaxis. The Atom A5 features a 5.5" touchscreen display that provides a sharp 1920 x 1080 resolution and 1000 cd/m² brightness.

Key Features:

• 5.5″ standard pixel, super retina screen
• 1000 nits peak brightness, 1200:1 contrast ratio, 401PPI
• Record & playback, timecode sync recording
• Built-in wireless video transmission system, can be used both as TX and RX
• 150m transmission range, 80ms delay
• 1 Transmitter × 2 Receivers
• Dual HDMI ports, support HDMI loop out
• Ultra-low Power Consumption. A single NPF-550 battery (3500mAh) can last up to 4.5 hours of continuous use
• Compatible For All Vaxis Atom Series Products

Its built-in wireless transmitter and receiver allow you to send and receive video between the Atom wireless transmitter/receiver ecosystem up to 492' away. It has enough sharpness to be a great companion for your wireless follow focus.

Video Transmission System & Monitor In One

Wireless Monitoring. Video transmission system and monitor unit as one.

150m Transmission Range

Extreme Distance. Remains stable for long distances, meets most usage scenarios,

Lower Latency Faster Follow Focus

80ms Delay. Almost insensitive time-lapse, easy to follow focus.

Dual NPF Battery Slots

Ultra-Low Power Consumption

A single NPF-550 battery (3500 mAh) can last up to 4.5 hours of continuous use.

Multiple Ports

Dual HDMI Ports. Support HDMI loop out, it can be used as an on-camera monitor or as a receiver to loop out signal to broadcast monitor.

External Antenna

Replaceable Antena. Instant replacement according to different needs in different scenarios.

Break the Chain

5.5" Screen Adaptation. Redesigned CINE OS for 5.5" monitor screen, new interactive way, increase your creative passion.

New Menu

Scope

Accurate picture restore the most realistic colour and exposure.

3D-LUT

Customize 5 shortcuts up to 50 LUTs can be stored in the monitor.

Peaking

AFCA intelligent focus assist algorithm, sharp focusing.

Zoom

Multi-touch, two-finger zoom.

Tx/Rx In one

Both Tx and Rx. The transmit and receive states can be switched according to your existing Atom series products.

Record & Playback

Record & Playback in one. The recorded MPG-4 filer are stored in the TF Card, you can instantly playback and review the footage on set. Preserved files can also be edited directly as proxy files.

Synchronous Recording

Timecode Sync. No need to manually record. When the camera starts recording, both the transmitter and receiver will start recording synchronously.
