Product Highlights
- WSM Control Software Compatibility
- 100 m (300') Transmission Range
- A: 470-516 MHz Frequency Range
- Up To 16 Channels
- 2.3 Ah Capacity
- Up To 42 MHz Bandwidth

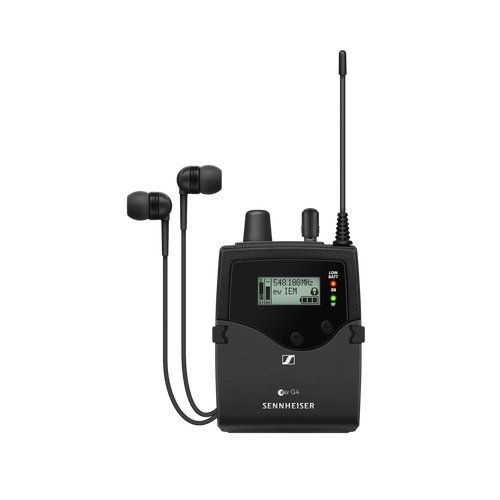

Sennheiser Stereo bodypack receiver. Includes (1) pair of IE4 earbuds, frequency range:A1 (470 - 516 MHz)
Sennheiser Stereo bodypack receiver. Incl...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
EK IEM G4-A1
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage. Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Key Features:
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 50 mW) depending on country regulations
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications. Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage. Full control over your performance – your direct link, everywhere, everyday.
What's Included
EK IEM G4 Stereo Receiver2x AA Batteries
IE 4 Earphones
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
EK IEM G4-A1 Bodypack Receiver |
|
|---|---|
| Dimensions | Approx. 82 x 64 x 24 mm / Approx. 202 x 212 x 43 mm |
| Frequency range | 470.000 - 516.000 / 516.000 - 558.000 |
| Signal-to-noise ratio | approx. 90 dBA / >90 dB / ≥ 110 dBA |
| Warranty (years) | 2 |
| Receiver principle | Adaptive diversity |
| Total harmonic distortion (THD) | ≤ 0.9 % |
| RF sensitivity | < 4 μV, typ. 1.6 μV for 52 dBA rms S/N |
| Battery capacity (Ah) | 2.3 |
| Battery count | 2 |
| Battery voltage (V) | 1.5 |
| Battery operating time (h) | approx. 4 to 6 hours (depending on volume level) |
| Product weight (g) | 125 |
| Package dimensions | 103 x 205 x 63 mm |
| Audio input | 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced |
| Audio output | ¼" (6.3 mm) stereo jack socket, balanced |
| Connection | Wireless |
