- Webcode: 473674 • Mfr: Q18-8K-VBP
Product Highlights
- 17.3" Broadcast Studio Monitor
- 3840 x 2160 Max. Resolution
- 400 cd/m² Brightness
- 1200:1 Contrast
- 4x 12G / HDMI 2.0 Input / Output
- 170° View Angle

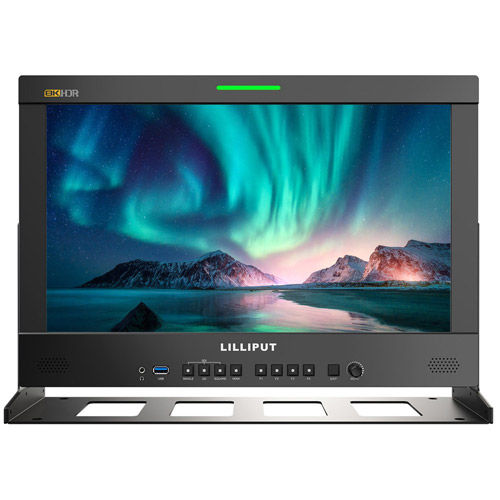

Lilliput 18-8K 17.3" 12G-SDI/HDMI Broadcast Studio Monitor
Lilliput 18-8K 17.3" 12G-SDI/HDMI Broad...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $104.90 Learn More
Overview
18-8K 17.3" 12G-SDI/HDMI Broadcast Studio Monitor
Production / Broadcast monitor for professional camcorder & video camera Application for video post production & making movies.
8K 12G-SDI SIGNAL
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
Accurate Colour Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.
LAN/RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.
Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+ Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring. When the quad split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively. The photographer can quickly switch between different input signals through these four buttons.
RACK MOUNT
INTELLIGENT SDI MONITORING
It has a various of mounting methods for broadcast, on-site monitoring and live broadcast truck, etc. The 17.3" monitor's housing can be perfectly embedded in a 19-inch cabinet. This monitor is featured with mutiview functions that allow users to check out different video signals at the same time, making it easy to create a multi-camera monitoring scenario.
Easy-to-use
F1~F4 user-definable buttons to custom auxiliary functions as shortcut, uch as peaking, waveform and histogram. Use the rotary button to select and adjust the value among of sharpness, saturation, tint and volume, etc.
Reviews
Product Specifications
18-8K 17.3" 12G-SDI/HDMI Broadcast Studio Monitor |
|
|---|---|
Display |
|
| Panel | 17.3″ |
| Physical Resolution | 3840*2160 |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Contrast | 1200：1 |
| Viewing Angle | 170°/170°（H/V) |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
| Look up Table(LUT)support | 3D LUT (.cube format) |
| Technology | Calibration to Rec.709 with optional calibration unit |
Video Input |
|
| SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| SFP | 1×12G SFP+(Fiber module for optional) |
| HDMI | 1×HDMI 2.0 |
Video Loop Output |
|
| SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| HDMI | 1×HDMI 2.0 |
Supported Formats |
|
| SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
AUDIO IN/OUT (48kHz PCM AUDIO) |
|
| SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
Remote Control |
|
| RS422 | In/out |
| GPI | 1 |
| LAN | 1 |
Power |
|
| Input Voltage | DC 12-24V |
| Power Consumption | ≤40W (15V) |
| Compatible Batteries | V-Lock or Anton Bauer Mount |
| Input Voltage (battery) | 14.8V nominal |
Environment |
|
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
Other |
|
| Dimension(LWD) | 433.9mm × 294.2mm × 45.7mm |
| Weight | 3.9kg |
