- Webcode: 473675 • Mfr: PTZ1271-20X-NDI
- FREE SHIPPING Available
Product Highlights
- 2.07 MP 1/2.8" High Quality HD CMOS Sensor
- f/1.6 - f/3.5 Aperture
- 0.5lux Min. Illumination
- HDMI / SDI Video Output
- 3.5mm Audio Audio Input
- 20x / 10x Optical / Digital Zoom
- 12 W Max. Power
Avmatrix PTZ1271-20X-NDI Full HD PTZ Camera with NDI HX
Avmatrix PTZ1271-20X-NDI Full HD PTZ Ca...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $68.17 Learn More
Overview
PTZ1271-20X-NDI Full HD PTZ Camera

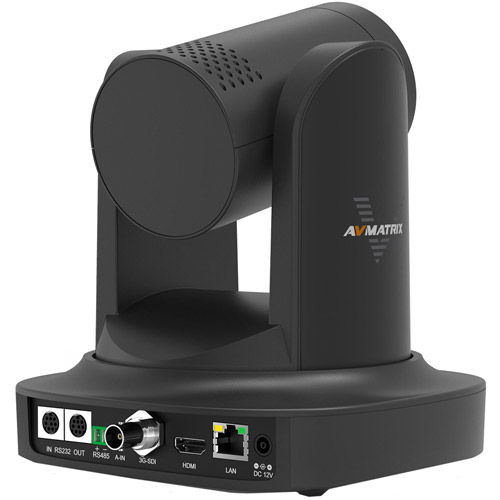

Multiple Outputs
The PTZ camera includes various interfaces. SDI, HDMI, IP outputs allow users to output an up to FHD 1080p signal simultaneously. The LAN port supports Power Over Ethernet (PoE), NDI|HX 5.0 (optional) and IP streaming via RTSP, RTMP protocols. It offers an audio line-in for NDI/IP streams. Users can control the PTZ camera easily via LAN port or RS-232/RS-485 serial port.
Zoom Lens Optional
Provides 20x/30x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, colour, saturation, contrast, sharpness provide precision control of your images.
Easily Control
The PTZ camera can be easily controlled by IR remote control, Web UI as well as the joystick camera controller via IP or serial port. Multiple control protocols are supported includinge ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.
A Variety of Installation
Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.
What's Included
PTZ1271-20X-NDI Full HD PTZ CameraPower Supply
RS232 Control Cable
Remote
Reviews
Product Specifications
PTZ1271-20X-NDI Full HD PTZ Camera |
|
|---|---|
Interfaces |
|
| Video Out | SDI HDMI |
| Audio Input | 3.5mm Audio (Line-Level) |
| Control Interface | RS-232 In and Out RS-485 In |
| Control Protocol | Onvif VISCA over IP VISCA PELCO-D/P |
| Video Format | HDMI/SDI Video up to 1080p60 |
Camera Parameters |
|
| Optical Zoom | 20x |
| Focal Length | f= 5.5-110 mm |
| View Angle | 3.3 degree (tele) 54.7 degree (wide) |
| Aperture Value | f/1.6 - f/3.5 |
| Sensor | 1/2.8" High Quality HD CMOS Sensor |
| Effective Pixels | 16:9 2.07 MP |
| Digital Zoom | 10x |
| Min. Illumination | 0.5lux |
| DNR | 2D 3D DNR |
| SNR | > 55 dB |
| White Balance | Auto / Manual / One Push / 3000K / 3500K / 4000K / 4500K / 5000K / 5500K / 6000K / 6500K / 7000K |
| WDR | Off / Dynamic Level Adjustment |
| Video Adjustment | Brightness, Colour, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve |
| Other Camera Parameters | Auto focus, Auto aperture, Auto Electronic Shutter, BLC |
PTZ Parameters |
|
| Rotation Angle | Pan: 170-degree Tilt: -30 to 90 degree |
| Rotation Speed | Pan: 60-degree/sec (Range: 0.1-180 deg/sec) Tilt: 30-degree/sec (Range: 0.1-80 deg/sec) |
| Preset Number | 255 Presets (10 presets by remote controller) |
Others |
|
| Input Voltage | DC 12V |
| Input Current | 1A (max) |
| Consumption | 12W (max) |
| Temperature | Working Temperature: -10 to 50 degree C Storage Temperature: -10 to 60 degree C |
| Working Humidity | Working Humidity: 20-80% RH (no condensation) Store Humidity: 20-95% RH (no condensation) |
| Dimensions | 17 x 17 x 18 cm (6.6 x 6.6 x 7.08") |
| Weight | 1.25 kg (2.75 lbs) |
