Product Highlights
- 2.26 MP CMOS Sensor
- 1920 x 1080 Max. Resolution
- Full-Frame Format
- 3G/HD-SDI Output
- Ethernet / RJ45 / SDI / HDMI Connection
- EF Mount

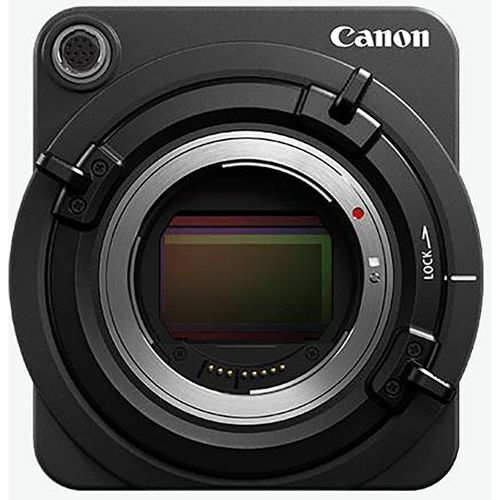

Canon ME20F-SHN Multi-Purpose Camera
Canon ME20F-SHN Multi-Purpose Camera- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See the Availability Guarantee at the bottom of this page or click here for more info.
Overview
Multi-Purpose Network Camera ME20F-SHN
A professional Full HD network camera offering superb low light performance from a 2.26MP CMOS sensor and an ISO in excess of 4 million.
A professional Full HD network camera for low light shooting
With a maximum ISO in excess of 4 million from a Full Frame 2.26MP CMOS sensor, the ME20F-SHN offers Full HD colour video in almost total darkness plus networking and remote control capability for critical surveillance applications.
Capture video in the dark
Shoot Full HD video with a 2.26MP 35mm Full Frame CMOS sensor and capture full colour footage in 0.0005 lux, over 4 million ISO.
Network capable
Connect via Ethernet (RJ45, 100Base-TX) for remote operation such as camera settings, monitoring and recording.
Wide range of applications
Multiple video outputs via Ethernet, SDI and HDMI port for choice of recording system. Automated operations triggered by alarm Input and built-in video analytics.
High quality Full HD output
High quality video via Ethernet (Full HD 1080P), 3G/HD-SDI (Full HD 1080P / 720P 4:2:2) and HDMI (Full HD 1080P / 720P 4:4:4).
Flexible Installation
Choose from a wide range of EF and Cine Servo Lenses (including those with a 12-pin serial terminal). Quick and easy installation with a single LAN cable thanks to PoE+.
What's Included
ME20F-SHN Multi-Purpose Camera
Power connector block (L-shaped)
Power connector block (straight)
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Multi-Purpose Network Camera ME20F-SHN |
|
|---|---|
| Sensor | 35mm Full Size CMOS Sensor |
| Filter | RGB Primary Colour Filter (Bayer array) |
|
Effective pixels per sensor |
Approx. 2.26MP (2000 x 1128) |
| Min. Illumination | 0.0005 lux or less (Gain 75dB, f/1.2, shutter speed 1/30, 50 IRE, custom picture [Off]) |
| Horizontal Resolution | Depending on selected lens |
| Lens Mount | Canon EF mount with Cinema Lock |
| ND Filter | Yes, 2 density (1/8, 3 stops or 1/64, 6 stops) Manually selected electronic control |
| Focus Control | Manual Focus, One Shot AF |
| Iris Control | Manual; 1/2 stop increments, 1/3 stop increments, fine adjustment. Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter and ND filter operation) |
| Aperture Range | Depending on selected lens |
| Filter Diameter | Depending on selected lens |
| Image Stabilization System | No |
| Digital Teleconverter | Yes : X2/X3/X4 tele converter |
| Type | DIGIC DV 4 |
| Sampling Accuracy | YbCbCr 422 via 3G/HD-SDI; RGB 444, YCbCr 444, YCbCr 422 via HDMI |
| Bit Depth | 10 bit (8 bit effective) |
| Type | DIGIC NET II |
Server |
|
| Simultaneous Client Access | Max. 30 Clients + 1 Admin Client – H.264: Max. 10 Clients |
| Bit Rate Control | Variable bit rate / Constant bit rate Target Bit Rate: 64/128/256/384/512/768/1024/1536/2048/3072/4096/6144/8192/10240/12288/14336/16384 kbps |
| ADSR: Area specific Data Size Resolution | Number of Specified Areas: Max. 8 areas Data Size Reduction Level: 3 levels |
| Security | Camera Control: Administrator, Authorized user, Guest user (level of control varies depending on user) Access Control: User authority (user name and password), Host Access Restrictions (IPv4, IPv6) IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP Encrypted Communications: SSL/TLS, IPsec |
| Protocols | IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary) |
| ONVIF Profile | Profile-S, Profile-G |
| Audio Compression Mode | G.711 μ-law (64 kbps) |
| Audio Communication Method | Full-duplex (two-way)/half-duplex RTP, Sound Transfer Protocol by Canon |
| Privacy Mask | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
| Preset | Digital PTZ and Camera setting Number of registration: Max. 20 positions (+Home Position) |
| Event Trigger Type | External Device Input, Intelligent Function (Video), Timer, Infrared Switching |
| Image Upload | FTP/HTTP/SMTP (e-mail) |
| Event Notification | HTTP/SMTP (e-mail) |
| Log Notification | SMTP (e-mail) |
| Image Cropping Function | Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72 |
| On-Screen Display | Available German/English/Spanish/French/Italian/Russian/Turkish/Japanese |
| Daylight Saving Time | Available |
Video Output |
|
| Video Compression Method | JPEG, MPEG4-AVC/H.264 |
| Video Quality | 10 levels |
| Video Size and Frame Rate | JPEG: 1920 x 1080: 0.1 – 30 fps MPEG4-AVC/H.264: 1920 x 1080: 1/2/3/5/6/10/15/30 fps – Only the following combination is available for video output via a network. System frequency: 59.94 Hz, Frame rate: 29.97P, Resolution: 1920 x 1080 – Values represent streaming performance from the camera. – The frame rate may be reduced due to Viewer computer's specs, the number of clients accessing at the same time, network loads, video quality setting, type or movement of the subject or other reasons. Maximum frame rate when used in the following combinations: When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps |
| I-Frame Interval | 0.5/1/1.5/2/3/4/5 sec. |
3G/HD-SDI or HDMI Terminal |
|
| Video Size and Frame Rate | 3G/HD-SDI Output: 1920x1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P 1280x720: 59.94P/50P/29.97P/25P/23.98P HDMI Output: 1920x 1080: 59.94P/59.94i/50P/50i/29.97PsF/25PsF 1280x720: 59.94P/50P 640x480: 59.94P 768x576: 50P |
System |
|
| Automatic Exposure Setting | Shutter Priority, Aperture Priority, Auto Gain Control (AGC) |
| Audio Input | 3.5mm stereo mini jack, plug-in power mic supported |
| Headphone Output | No |

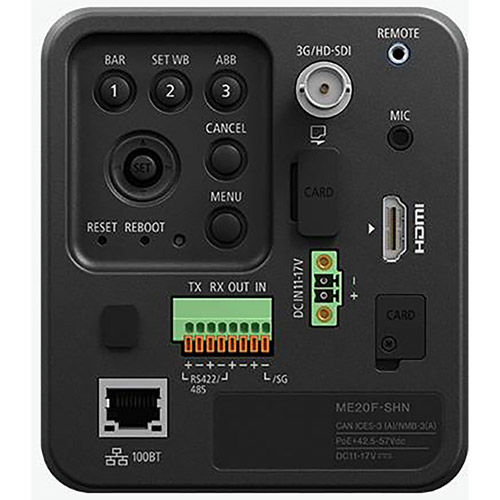

| Video Output | Yes, Ethernet x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) , 3G/HD-SDI (BNC) , HDMI. |
| Ethernet | Yes (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
| HDMI Output | Yes |
| USB | No |
| 3G/HD-SDI Output | Yes, OSD compatible. |
|
Time code |
No |
| Genlock | No |
| Component Out | No |
| AV Terminal | No |
| DC Input | Yes. 2-Pin connection. Input voltage 11 - 17V |
| Lens Terminal | Yes, 12-pin connector |
| Remote Control Terminal | Yes, 2.5mm mini jack (Canon Unique Protocol) |
| Alarm IN/OUT | Input x 1, Output x 1 |
| Serial Port | RS-422/RS-485 x 1 |
| Memory Card Connector | 1x microSD Memory Card (for recording) – microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card Compatible. 1x microSD Memory Card (for firmware update only, no recording capability) |
| Colour Bars | Yes, SMPTE, EBU and ARIB depending on system frequency |
| Tally Lamp | No |
| Custom Key | No |
| User Assigned Functions | Yes, 4 buttons. Assignable items: One-Shot AF / Push Auto Iris / ABB /AE Shift + / AE Shift - / Color Bars / Aspect Marker / Set WB / Tele-converter / Infrared / External Rec / Custom Picture / Camera Mode A/M. Assignable button 4 is located on the optional RC-V100 Remote Controller. |
| Custom Dial | No |
| Exposure Metering | Backlight, Standard, Spotlight, Selectable |
| Exposure Compensation | Yes: ±2.0, ±1.75, ±1.50, ±1.25, ±1.0,±0.75, ±0.50, ±0.25 or ±0 |
| Exposure Lock | No |
| Auto Gain Control Setting | Yes , OFF (75dB) or value from 36dB to 75 dB (in 3 dB increments) |
| ISO Sensitivity | Maximum in excess of ISO 4,000,000 equivalent at -75dB |
| Dynamic Range | Canon Log/Wide DR mode: 800%/12 stops at +9.0dB (Approx. ISO2300) |
| Gain Setting | 0dB to -75dB in 3dB intervals. |
| Control Modes | Manual 1/4 stop increments, Auto (combined function combining Iris, Gain, Shutter and ND filter operation) |
| Shutter Angle | No |
| Slow Shutter (SLS) | Yes |
| Scan Reverse | Yes |
| Clear Scan | No |
| Infrared Shooting Mode | Yes: IR Cut-out filter, electrically operated, manual only |
| Built-In IR Lamp | No |
| Auto | Yes |
| Preset | Daylight/Tungsten/Color Temperature |
| Shockless WB | Yes, via Custom Function Menu |
| Manual Setting | Set A, Set B (Default 5,500K) Kelvin (2,000K - 15,000K) |
| Custom Picture Options | Ten Custom Picture options: Canon Log, Wide DR, EOS Standard, Blue Scr, Green Scr, Crisp Img, CP1 - CP4. User customisable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance |
| Count Up System | No |
| Start Value Setting | No |
| Input | Linear PCM 48 kHz 16-bit digital conversion, 2 channels |
