- Webcode: 478481 • Mfr: ATOM-SHB004
- FREE SHIPPING Available
Product Highlights
- 5" HDR Monitor
- 1920 x 1080 Max. Resolution
- SuperAtom IPS Panel IPS Technology
- HDMI (1.4) Input
- 1500 nits Brightness
- 178° View Angle

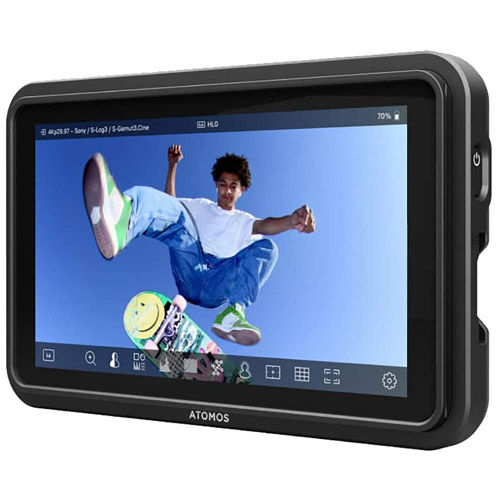

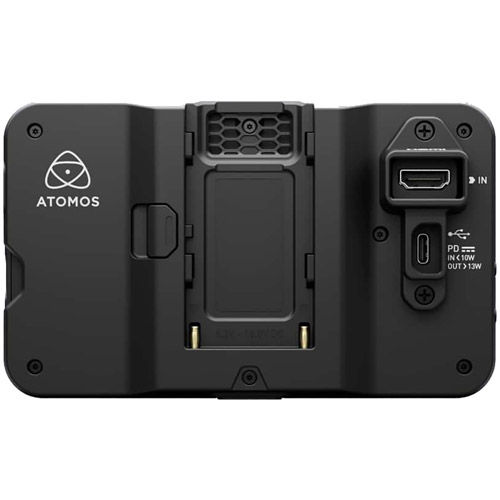

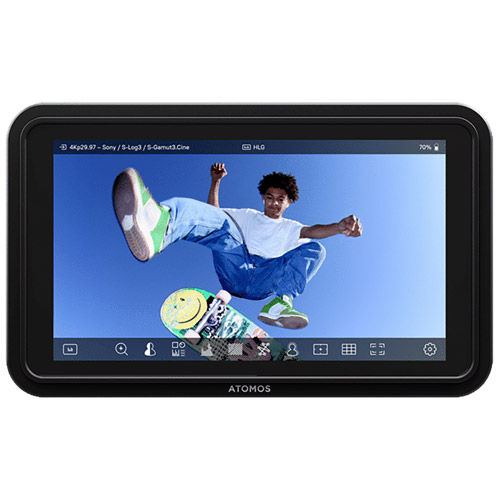

Atomos Shinobi GO, Slim, Lightweight, High Brightness, 5-inch 1500nit HDR Monitor
Atomos Shinobi GO, Slim, Lightweight...
$369.00
Add to Cart
FREE SHIPPING
Available
Web Availability:
In Stock
Product is In Stock in our Warehouse or in one of our store locations. We will confirm stock is available and process your order. If the available stock is sold before your order is processed, you will receive an email from us.
In-store
- Available in Toronto
Vistek Locations
- Toronto In Stock
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary Available for Order
- Edmonton Available for Order
Overview
Shinobi GO 5" HDR Monitor
A high brightness, lightweight, 5-inch, 1500nit HDR touchscreen camera monitor that’s perfect for vloggers, filmmakers and photographers. Monitor HDMI signals up to 4K UHD using the waveform, histogram and vectorscope tools simultaneously. Built-In LUT to preview looks – store up to 8 LUTs. Low power draw – can run all on single battery. Frame Guides – frame shots with confidence, for social media or cinematic productions. USB-C PD – power Shinobi GO via USB-C PD; power/charge your camera too.
Key Features:
- Slim, Lightweight, Low-Profile Design
- 5.2″ 1920 x 1080 Capacitive Touchscreen
- USB PD Power
- High 1500 cd/m² Brightness
- 4K HDMI Input, HDR/HLG/PQ Support
- AtomHDR Mode with 10-Stop Dynamic Range
- USB Calibration Support
- Single Sony L-Series Battery Slot
What's Included
Shinobi GOUSB-C 2.0 Cable
HDMI + USB-C Locking Cable Adapter
Reviews
Product Specifications
Shinobi GO 5" HDR Monitor |
|
|---|---|
Physical |
|
| Dimensions | 151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached) |
| Weight | 210g / 7.4oz |
| Mounting Points | Bottom: 1 x 1/4-inch 20 with anti-rotational points |
Environmental |
|
| Ambient Operating Temperature | Up to 40 Degrees Celsius |
Construction |
|
| Body | ABS Polycarbonate Plastic |
| Cooling | Passive heat sink |
| Multi-Function Button | Power / Lock Screen |
| Touch Screen | Capacitive Touch |
Power |
|
| Input Voltage | 6.2V to 16.8V |
| Compatible Batteries | NP-F / L-Series |
| Built-In Battery | No |
| Continuous Power | Via NPF battery or USB-C PD |
| DC-In Connector | Via Battery Eliminator (separate purchase) |
| D-Tap | Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable (separate purchases) |
Display |
|
| Display Panel | SuperAtom IPS Panel (Capacitive Touch) |
| Size | 5.2" |
| Resolution | 1920 x 1080 |
| View Angle | 178 + H & V |
| PPI | 427 |
| Bit Depth | 10-Bit (8+2 FRC) |
| Backlight Type | Edge-Lit |
| Brightness (cd/m² / nits) | 1500 |
| Aspect Ratio | 16:9 |
| Colour Gamut | Rec.709 |
| Calibration Support | No on-device calibration Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus |
Colour Pipeline |
|
| Gamma | Sony S-Log / S-Log2 / S-Log3, Canon C-Log / C-Log 2 / C-Log3, Panasonic V-LOG, JVC J-Log1, Fujifilm F-Log / F-Log2, Nikon N-LOG / HLG, Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT, Leica L-LOG |
| Gamut | BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, JVC LS300 |
| 3D LUT Display | .Cube Format (17 & 33 points supported) |
| 3D LUT 50/50 Split | Yes |
| Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
| Display Controls | Backlight, Lift, Gamma, Gain |
| AtomHDR | Built-in Technical Log to HDR EOTF |
| 3D LUTs | Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring |
Video Input |
|
| HDMI | 1 x HDMI (1.4) |
| Bit Depth | 8 / 10-Bit |
| Chroma Subsampling | YCbCr 4:2:0 & 4:2:2 |
Audio In/Out |
|
| HDMI Embedded | 2-channel, 24-bit, input dependent |
| Headphone OUT | 3.5mm headphone jack, 2-channel |
Resolution and Frame Rates |
|
| 4K DCI | No 4K DCI Resolution Support |
| 4K UHD | 23.98/24/25/29.97/30 |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60 |
| FHD 1920 x 1080 Interlaced | 50i/60i |
| 1280 x 720 Progressive | 50/59.94/60p |
Supported Media |
|
| SD Card | Update firmware & upload LUTs |
| File System | FAT32, NTFS |
On-Screen Tools |
|
| MultiScope Analysis View | Image, waveform, histogram, & vectorscope |
| Waveforms | 3 Sizes – Adjustable Opacity & Brightness |
| Histogram | 3 sizes – adjustable opacity & brightness |
| RGB Parade | 3 Sizes – Adjustable Opacity & Brightness |
| Vector Scope | 1 Size – Adjustable Opacity & Brightness |
| 1x Zoom | Tap to Zoom |
| 2x Zoom | Tap to Zoom |
| 4x Zoom | Tap to Zoom |
| Focus Peaking | 4 Modes (Color, Black & White, Outline, Edge Sharpening) with adjustable Outline Color & Peaking Intensity |
| Colourized Exposure | Atomos False Color |
| Zebra | Adjustable Threshold (50% to 105%) |
| Isolate Color Channel | Blue Only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame Guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe Area | SMPTE Safe Title Area – 93% & 90% |
| Grid Markers | 9 Grid |
| Display Flip | Horizontal & Vertical |
External Device Control |
|
| USB-C | USB-C for device power |
| Serial 2.5mm Jack | Use with Atomos calibration cables, and calibration software |
