- Webcode: 479243 • Mfr: SWPANELCCU1
- FREE SHIPPING Available
Product Highlights
- Control Up To 8 Cameras
- 8 NKK Buttons
- 1 / 1 Joystick / Preview Button
- USB Type-C / Bluetooth Connection
- 2x 100-240 VAC Power Source
- Mac 14.0 Sonoma / Mac 15.0 Sequoia / Windows 10/11 OS
Blackmagic Design ATEM Micro Camera Panel
Blackmagic Design ATEM Micro Camera Panel- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Overview
ATEM Micro Camera Panel
Introducing low cost, multi camera, live production with advanced broadcast features
ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and business presentations using Zoom or Teams! Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. You can use the built in DVE for exciting picture in picture effects, perfect for commentary.
Plus, ATEM Mini is loaded with video effects and secret broadcast features you can use to produce high end work! ATEM Mini supports SRT streaming for low latency and secure streaming. You can even sync your recording to Blackmagic Cloud, so you can edit your live production with DaVinci Resolve anywhere in the world. Powerful live switcher with 8 HDMI inputs, built in streaming engine, multi-view, Thunderbolt for record/playback. USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.
Add a Camera CCU Style Camera Panel

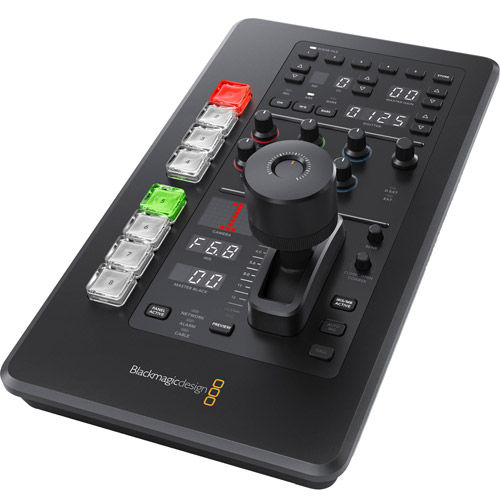

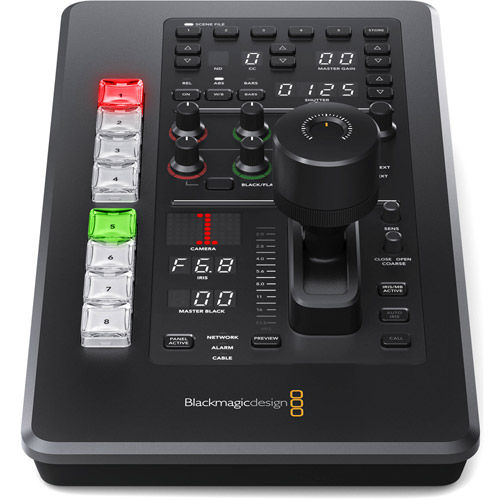

The ATEM Micro Camera Panel lets you control your cameras with a high end broadcast CCU style controller! It's portable because it has an internal battery and connects via Bluetooth or USB‑C. Buttons along the side let you select between 8 cameras, plus you can check which cameras are currently on‑air before adjusting them! The design features a smooth machined metal control for adjusting iris and pedestal. You can also control the camera's shutter speed, white balance, RGB gain and more.
What's Included
ATEM Micro Camera PanelUSB‑C Cable
Welcome Wallet with QR Code
Reviews
Product Specifications
ATEM Micro Camera Panel |
|
|---|---|
Connection |
|
| Computer Interface | USB Type-C |
| Bluetooth | Bluetooth 5.1 LE |
| Software Updates | 1 x USB‑C for firmware updates. |
Product Specifics |
|
| Camera Selection Buttons | 8 x NKK buttons. Assignable via setup utility. |
| Camera Number Display | Green off air, red on air. |
| Setup | White and black balance setup. Flare via modifier key. |
| 3 Axis Joystick | 1 |
| Preview Button | 1 |
| Iris Control | Auto Iris On, Coarse control. |
| Iris Range | CLS f32 to f1.2 |
| Gain Range | -12dB to +32dB |
| ND Filters | 0, 2, 4, 6. |
| Shutter Range | 1/24 to 1/2000 |
| White Balance Range | 2500K to 10,000K |
| Recallable Scenes | 5 per camera. |
| Panel Active | Protects settings. |
Software |
|
| Software Applications | ATEM Micro Panel controls ATEM Software Control Panel running on the host computer. |
| Operating Systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11 Windows 11 for ARM |
| Power Requirements | Power Supply: Internal battery with power switch. USB-C port for external power supply and battery charging. |
Physical Specifications |
|
| Dimensions | 25.7 x 14.5 x 5.7 cm (10.11 x 5.7 x 2.2") |
| Weight | 1 kg (2.2 lbs) |
Environmental Specifications |
|
| Operating Temperature | 5° C to 40° C (41° - 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
