PortKeys LS7P 7' 4K HDMI Touchscreen Monitor , 1000 nits w/ BD1 Dummy Battery

LS7P
7-inch HDMI/SDI Wireless Camera Control Monitor

The Portkeys LS7P is a rugged 7-inch on-camera monitor featuring 1,000 nits of brightness, HDMI/SDI video input and output ports, and wireless camera control capabilities.

Key features:

• 7-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Daylight-viewable with a maximum brightness of 1,000nits.

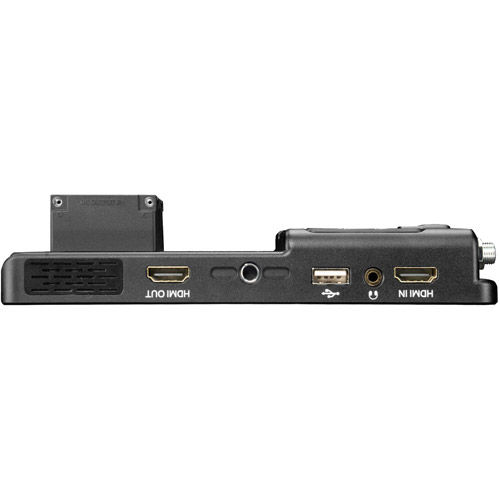

• 1 x 4K30P HDMI input, 1 x 3G-SDI input, 1 x 1080P60 HDMI output, 1 x 3G-SDI output, cross-conversion from SDI input to HDMI output is possible.
• Powered by MOVNORM OS.
• Professional monitoring tools: Log Stops, Waveform, Histogram, Zebra, Vectorscope, Peaking, ARRI False Colour, Anamorphic image de-squeeze, Audio Meters.
• 3D LUT monitoring and 3D LUT output capabilities.
• Wireless camera control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and Blackmagic Design cameras.
• Touchscreen autofocus (wireless) feature is available for select Sony, Nikon, RED, Canon, Panasonic, and Blackmagic Design cameras, including the Sony FX3/FX6, Sony a7S III/A7C, Canon EOS C80, and EOS C400.
• Built-in Sony NP-F style battery plate.

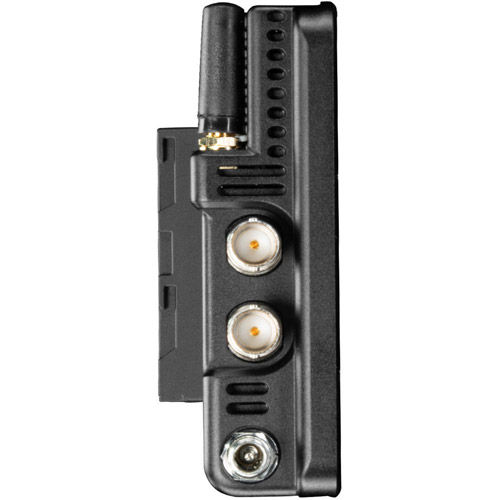

• DC 7-24V 5.5mm barrel connector power input for external power (D-Tap cable included).

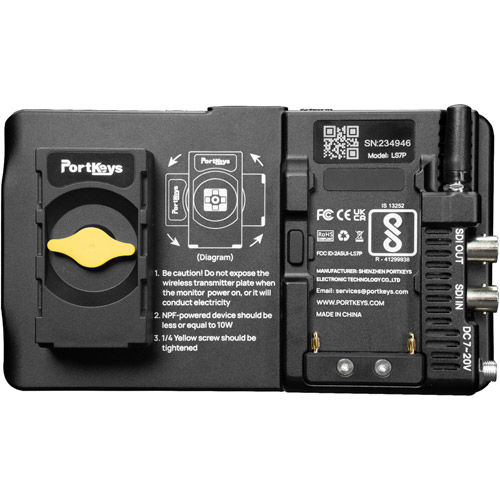

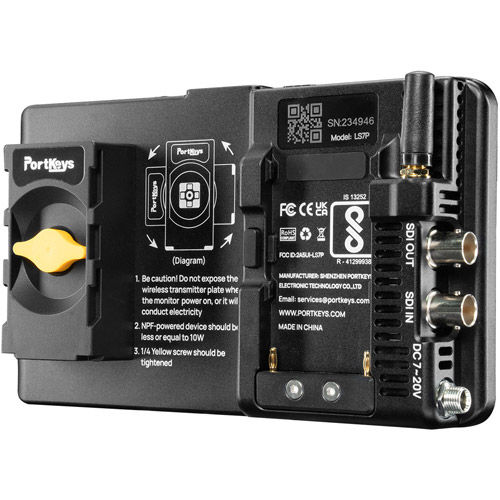

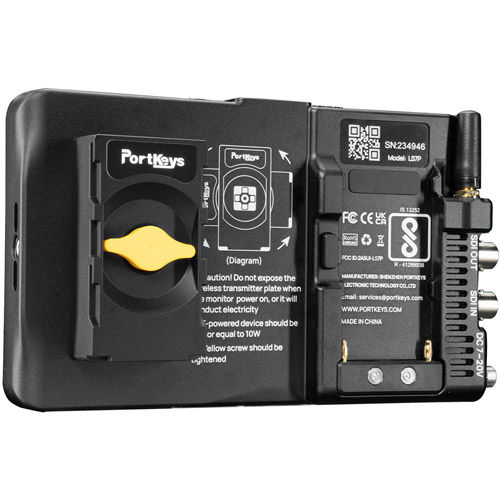

• Built-in Sony NP-F dummy battery plate with power passthrough(8V/10W) to attach and power a wireless video receiver at the back of the LS7P.
• Lightweight and rugged aluminum housing: only 409g/14.42oz.
• Factory colour-calibrated, each monitor undergoes individual factory colour calibration in REC.709, ensuring accurate colour reproduction right out of the box.

Pro Cinema Camera Control
Wireless Control of Cinema Cameras

One-click adjustment of parameters for more free and efficient shooting.

Coordinated Control
One-to-Many Control System

One device to control multiple units, making team collaboration smoother.

Patented Innovation
LOG Stops

An assistive exposure tool based on 19 exposure levels, utilizing false colour, zebra pattern, and histogram for visualization.

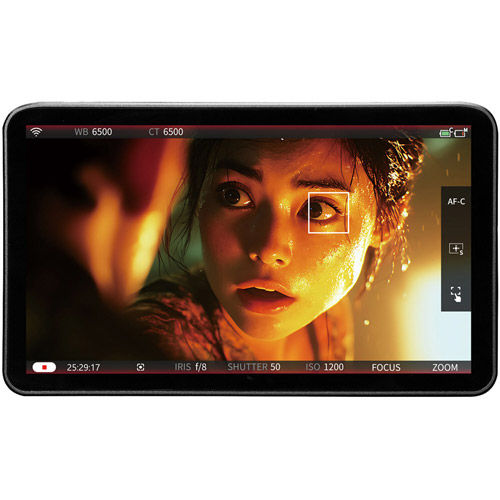

Touch Focus Frame

Slightly touch brings up the focus frame, ensuring precise focus for every sharp and clear frame

Ultra HD Quality, Ultimate Visual Experience
HDMI 4K Oversampling

Supports 4K 30P Oversampling to 1080 P60, and Output Via HDMI.

Not Distortion Anymore, Restore True Colours
3D LUT HD Output

More Vivid Visuals, More Intuitive Monitoring.

Patented Innovation, Optimized User Experience
Sony NP-F Dummy Battery Module

Equipped with NP-F dummy battery, providing synchronized power for video transmitters and receivers.

Multi-Functional Monitoring
All-Around and Powerful, High-Efficiency Monitoring

With multiple professional monitoring tools, helping users capture and evaluate image quality more effectively.
