- Webcode: 482178 • Mfr: MP0506013X
Product Highlights
- Select amaran Ace/COB/Halo/Pano/Ray Light Compatibility
- 24000 mAh Capacity
- 86.4 Wh
- 60 mins Charge Time
Amaran Peak Portable Battery System (86.4Wh)
Amaran Peak Portable Battery System (...- Toronto On Order
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary On Transfer
- Edmonton Available for Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Peak Portable Battery System for LED Lights
86.4Wh All-In-One Portable Battery System
Cable-Free Power with amaran Ace E-Lock Expansion Module
Seamlessly powers compatible lights like amaran Pano 60c & 120c without cables
Up to 170W Combined Constant Output
Powers lights, cameras, laptops via 2x USB-C, 1x USB-A ports
Flexible Mounting Options
Compatible with 3/8-16in & 1/4-20in light stands, tripods, accessories
140W USB-C PD Fast Charging
Recharge to 50% within 30 minutes or 100% in 1 hour with PD3.1 charger
Compatibility:
- amaran Ace 25C
- amaran Ace 25X
- amaran COB 60D S
- amaran COB 60X S
- amaran Halo 100X
- amaran Halo 60X
- amaran Pano 120C
- amaran Pano 60C
- amaran Ray 120C
- amaran Ray 60C

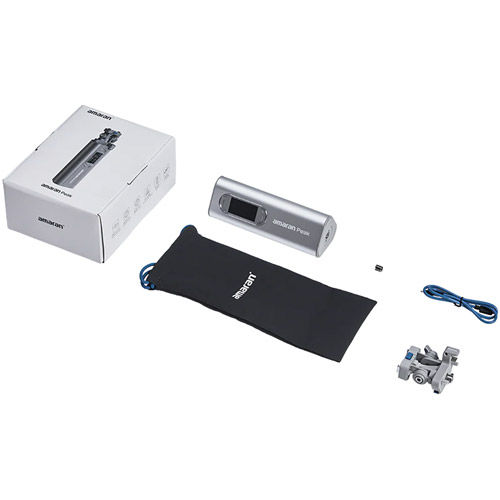

What's Included
PeakAce E-Lock Expansion Module
USB-C Charging Cable (50cm)
1/4-20in to 3/8-16in Screw Adapter
Drawstring Pouch
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Peak Portable Battery System for LED Lights |
|
|---|---|
Output |
|
| USB-C1 | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max) |
|
USB-A |
5V⎓3A, 9V⎓3A, 12V⎓5A (30W Max) |
|
USB-C1 + USB-A |
140W + 30W (170W) |
|
USB-C1 + USB-C2 + USB-A |
65W + 65W + 18W |
| USB-C2 | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max) |
|
USB-C1 + USB-C2 |
100W + 65W (165W) |
| USB-C2 + USB-A | 140W + 30W (170W) |
Input |
|
| USB-C1 | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A |
| USB-C2 | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A |
General |
|
|
Battery Capacity (Max) |
86.4Wh / 24,000mAh |
| Ports | 2x USB-C, 1x USB-A, 1x amaran Ace E-Lock |
| USB-C Max Power Input | 140W |
| Supported Protocols | PD, QC |
| Charge Time | 60 Mins. |
| Storage Temperature | -20°C - 80°C / -4°F - 176°F |
| Cooling Method | Passive Cooling |
| Cycle Life | 800+ Cycles (80% Capacity) |
| Dimensions | 6.93 x 2.52 x 2.40in |
| Battery Capacity (Min) | 82.08Wh / 22,800mAh |
| Max. Total Output | 170W |
| Rated Capacity | 13,200mAh (5V⎓3A) |
| Charge Time (65 W) | 75 Mins. |
| Operating Temperature | -10°C - 40°C / 14°F - 104°F |
| Control Method | Button |
| Noise Level | 0 dBA |
| Conversion Efficiency | ≥78% |
| Weight | 791.0g / 1.74lbs |
