  • Webcode: 483288 • Mfr: SA651203
Product Highlights
  • 2.4GHz Digital Frequency
  • Up to 100 m (328') Operating Range
  • Omnidirectional Pickup Pattern
  • 20Hz to 20KHz Frequency Response
  • 3.5mm Mic In / Line In Input
  • Built-In Li-ion / USB-C Rechargeable Battery
  • Approx. 10 hrs Battery Life
  • Kit Includes 500 ProRx Tx, 500 ProRx Rx, Case, Microphone, Microphone Clip, 2x Windscreens, 2x Cables & Pouch
Saramonic Blink 500 PRO-X B1 Kit 3.5mm 2.4G 1x Dual RX, 1 x Saramonic Blink 500 PRO-X B1 Kit 3.5mm 2...
SAVE $80   $199.99 Add to Cart
Find it for less? Let us know.
Web Availability: In Stock
Product is In Stock in our Warehouse or in one of our store locations. We will confirm stock is available and process your order. If the available stock is sold before your order is processed, you will receive an email from us.
In-store
  • Available in Calgary
  • Available in Edmonton
  • Available in Mississauga
  • Available in Toronto
Vistek Locations
  • Toronto In Stock
  • Ottawa Available for Order
  • Mississauga In Stock
  • Calgary In Stock
  • Edmonton In Stock
Please call and verify availability at the store as stock changes daily.

Overview

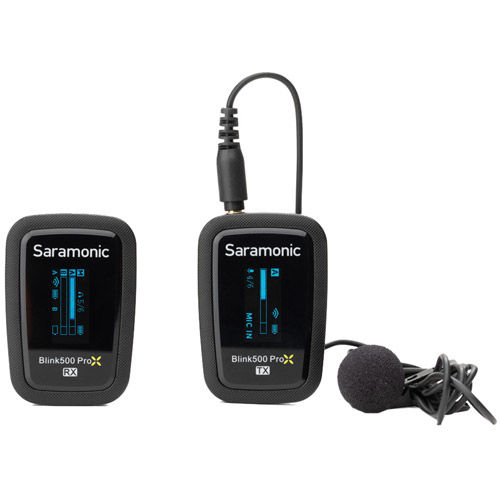

Blink 500 PRO-X B1 Kit

The Saramonic Blink 500 ProX B1 is a 2.4 GHz wireless system that delivers exceptional, broadcast-quality sound to cameras, recorders, mixers, mobile devices, computers, and other 3.5mm input devices.

Key Features:

  • Incredibly easy-to-use clip-on wireless mic system with lavalier that delivers high-quality sound to cameras, recorders, mixers, mobile devices, computers, and other 3.5mm input devices
  • Transmitter (TX) has a built-in omni mic and can be clipped to clothing, used as a belt pack with included lavalier, or transmit line-level audio. Features OLED display with metering, input level control, and mute
  • Camera Mountable Dual receiver (RX) features a Mono/Stereo output setting, headphone out, OLED display with metering, includes both 3.5mm TRS and 3.5mm TRRS output cables, and can add second ProX TX transmitter.

Ideal for content creators, filmmakers, journalists, vloggers, live streaming, and so much more. This ultra-portable and incredibly lightweight mic system comes with a wireless transmitter with a built-in mic, professional lavalier microphone, a dual-channel receiver, and an advanced portable charging carry case.

Additional Features:

  • Ultracompact and Lightweight, the system features a remarkable 10-hour battery run time on a full charge, 328-feet (100m) line-of-sight range, and automatic channel switching
  • The system powers on and off, automatically when opening and closing the 2000mAh charging case. Case can charge the system up to 2.5 additional times anywhere, for up to an incredible 35-hrs of power on the go

Upgraded in Every Way: The Industry Original Dual-Channel 2.4GHz System Just Keeps Getting Better

The Blink 500 ProX is the next generation of the immensely successful, and much copied Blink 500 Pro system. Combining the innovative features of the original Blink 500 Pro system with a smaller and lighter updated design, less latency, more reliability, upgraded OLED displays with real-time metering, longer battery life, higher resolution audio signal, wider frequency response, higher signal-to-noise ratio, and even more new features that set the ProX apart from the original Pro system and competitors. While still being incredibly easy to use.

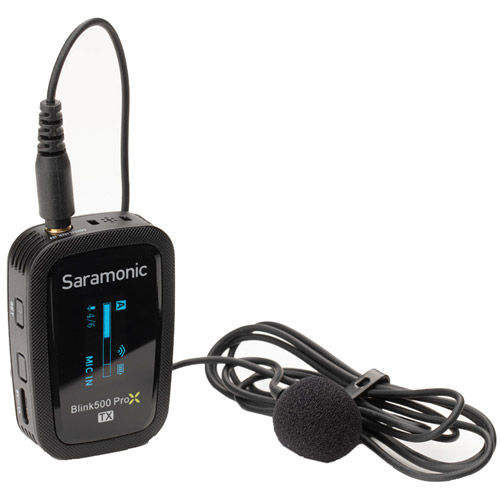

Tiny and Light TX Transmitter, with Big and Heavy Features

The Blink 500 ProX TX transmitter features a built-in omnidirectional microphone with an impressive sensitivity of -39dB. Giving you professional dynamic sound quality on a transmitter small and light enough that you can easily clip it to a shirt or collar. The transmitter includes a lavalier microphone, allowing you to use it as a traditional belt pack transmitter for an even more discreet miking solution. A vivid OLED display gives real-time input level metering, and tactile input gain controls allow you to adjust the audio gain with ease. It also features a soft-touch mute button to quickly mute the transmitter for privacy.

Wireless Transmit Line-Level Audio and Other 3.5mm Microphones

The Blink 500 ProX TX transmitter also allows you to transmit line-level signal or microphone-level wirelessly and provides plug-in power to microphones. This stand-out feature makes the system tremendously versatile, allowing you to connect it to virtually any audio source. Switch the TX transmitter to line-level and connect it to mixers, music players, or any line-level device output you want to transmit wirelessly to the receiver. You can use the included SR-M1 lavalier, or you can add a headset microphone, a higher-end lavalier like the Saramonic DK3G, or even plug in a mini-shotgun microphone. Just about any 3.5mm microphone wired for standard TRS pin-out will work, and the adjustable mic gain, and input gain meter lets you get perfect levels every time.

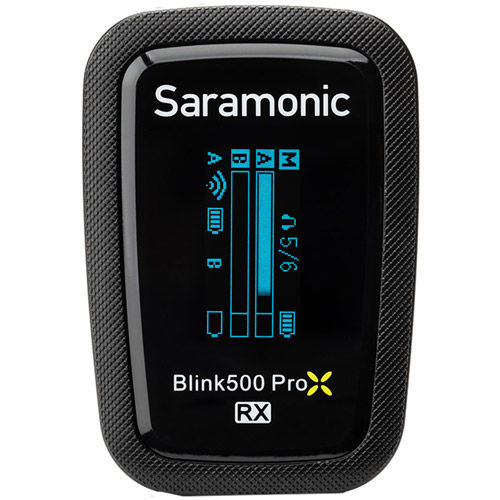

Compact Dual Receiver with Headphone Out, OLED Display, Mono/Stereo Out and More

The Blink 500 ProX B1 system’s RX dual-channel receiver includes both a 3.5mm TRS output cable and a 3.5mm TRRS output cable. Allowing the system to work perfectly with cameras, mobile devices, recorders, mixers modern computers, and much more. The RX features a selectable Mono / Stereo output setting, giving you the ability to record each mic to separate channels when using an additional ProX TX transmitter (sold separately). Its 3.5mm headphone output with level control lets you monitor the sound in real-time, especially vital if your camera or device lacks a headphone output. It also features a vivid OLED display that shows you the RX’s battery life and headphone level, and the transmitter’s level meter, battery life, and wireless connection strength with just a glance. You can also easily adapt the receiver’s 3.5mm TRS output to Lightning, USB-C, USB, or XLR devices with an inexpensive Saramonic audio adapter or interface (sold separately).

Remarkable Power and Convenience for Creators on the Move

The Blink 500 ProX B1 features a system battery life of up to 10-hours, nearly double the power of other 2.4GHz micro wireless systems. Giving users the ability to shoot for an entire day on one charge! It also includes a 2000mAh car case that provides an additional 2 and 1/2 full system charges anywhere. That gives you up to an incredible 35-hours of filming on a full system and case charge! Opening the charging case turns the system on and closing the case turns the system off, automatically. Because the transmitter and receiver also feature USB-C charging ports, they can be powered while in use or charged outside of the case using USB battery packs or a power supply for even more powering versatility.

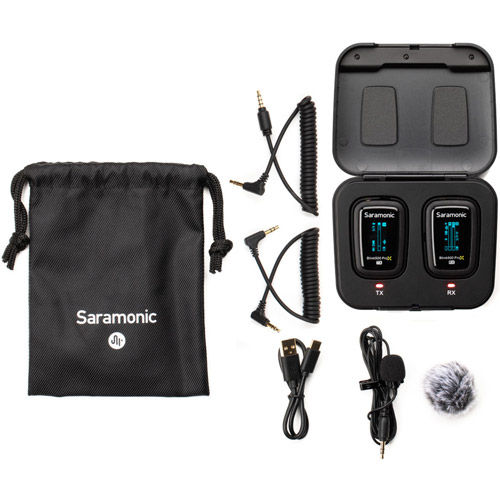

What's Included

Blink 500 ProX TX Transmitter with OLED Display, Built-In Microphone and Clip
Blink 500 ProX RX Dual Receiver with OLED Display, Built-In Clip and Camera Shoe-Mount
Blink 500 ProX B1 Portable Charging Carry Case
SR-M1 Omnidirectional Lavalier Microphone
Alligator-Style Lavalier Microphone Clip
Foam Lavalier Windscreen
Furry High-Wind Press-On Windscreen for Blink 500 ProX TX Transmitter
Carry Pouch With Accessory Pocket
1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable
1’ (30.5 cm) Gold-Plated USB-A to USB-C Charging Cable

Reviews

Product Specifications

Blink 500 PRO-X B1 Kit

RX Receiver


Reception Type 2.4GHz Digital Frequency
Modulation Digital Modulation
Antenna Built-In FPC Antenna
Operating Range Up to 328' (100m)
Line Output Connector 3.5mm TRS
Output Level -16.5dBu
Output Mode Types Mono / Stereo
Headphone Output Connector 3.5mm TRS
Headphone Output Level -6dBu
Frequency Response 20Hz to 20KHz
Digital Signal Resolution 16bit / 48kHz
Signal-to-Noise Ratio ≥84dB
Distortion ≤0.1%
System's Voice Delay ≤8ms
High Contrast OLED Screen Resolution 128 x 64 pixels
Other Functions Tactile Output Mute Function
Power Requirements Built-in Li-ion Battery, USB-C DC 5V or Charging Contact
Battery Life Approximately 10-hours
Battery Specifications 3.7V / 400mAh
Weight 1.08oz (30.5g)
Dimensions 2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)
Operating Temperature 0° to 122°F (0°C to 50°C)
Storage Temperature -50° to 122°F (–10°C to +50°C)

TX Transmitter


Transmission Type 2.4GHz Digital Frequency
Modulation Digital Modulation
Antenna Built-In FPC Antenna
Operating Range Up to 328' (100m)
RF Output Power <10mW
Frequency Response 20Hz to 20KHz
Reference Audio Input Level -20~-42dBv (MIC input, 0dB Attenuation)
Input Connector 3.5mm Mic In / Line In (Mic with Plug-in-Power)
Built-In Microphone Polar Pattern Omnidirectional
Built-in Microphone Maximum SPL 106dB
Built-in Microphone Sensitivity 39±2dB (Tested at 2V 2.2KΩ)
Lavalier Microphone Maximum SPL 120dB
Lavalier Microphone Sensitivity 39+/-2dB (0dB=1V/Pa,1kHz)
Digital Signal Resolution 16bit / 48kHz
Signal-to-Noise Ratio ≥84dB
Distortion ≤0.1%
System's Voice Delay ≤8ms
High Contrast OLED Screen Resolution 128 x 64 pixels
Other Functions Tactile Microphone Mute Function
Power Requirements Built-in Li-ion Battery, USB-C DC 5V or Charging Contact
Battery Life Approximately 10-hours
Battery Specifications 3.7V / 400mAh
Weight 1.04 oz (29.5 g)
Dimensions 2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)
Operating Temperature 0° to 122°F (0°C to 50°C)
Storage Temperature -50° to 122°F (–10°C to +50°C)

SR-M1 Lavalier


Acoustic Principle Electret Condenser
Pickup Pattern Omnidirectional
Connector 3.5mm
Cable Length 4.1’ (1.25m)
Max. SPL 110dB
Sensitivity -39dB+/-2dB(0dB=1V/Pa,1kHz)
Signal-to-Noise Ratio ≥60dB
THD <1% (94dB SPL at 1kHz)
Power Requirements Plug-in-Power (1V~10V)
Standard Operating Voltage 3V
Current Consumption <500μA
Output Impedance <2.2KΩ

Blink 500 ProX B1 Charging Case


Powered Requirements Powered by USB-C port
Capacity 2000mAh
System Charging Time Approximately 2-hours
Case Charging Time Approximately 2.5-hours
Charge Cycles for Transmitter and Receiver Approximately 2.5 Times
Weight 6.98 oz (198 g)
Dimensions 4.84 x 3.91 x 1.51” (123 x 899.5 x 38.5mm)
Operating Temperature 0° to 122°F (0°C to 50°C)
Storage Temperature -50° to 122°F (–10°C to +50°C)
