FM Mount Projection Attachment 18°-36°

Zoom Fast. Focus Sharp.

As smaller fixtures are taking on more refined roles in professional production, it generates higher expectations for lighting control among users. Nanlite introduces the FM Mount Projection Attachment 18°-36° (PJ-FMM-18-36), specially designed for FM mount fixtures. It boosts illuminance, delivers precise zoom control, and maintains imaging quality, helping creators achieve expressive lighting effects.

Powerful Projection for Compact Lights

The PJ-FMM-18-36 is developed specifically for FM mount fixtures, with an optical system fully matched to the fixture's light characteristics. It ensures a clear and even beam while significantly increasing illuminance, further expanding the application potential of smaller lights in professional production.

Versatile Control

The PJ-FMM-18-36 integrates multiple lighting control mechanisms within a compact body, offering a convenient and precise control experience. From adjusting the beam angle and focus to rotating patterns, all functions are easily accessible, allowing seamless operation and quick adaptation to changing lighting needs on set.

Rotatable Pattern

The lens barrel can rotate 360° to adjust the angle of the beam without removing the gobo or altering the shutters.

Focusing

Slide the lens to fine-tune the focus and control beam clarity.

18°-36° Stepless Zoom Range

By rotating the zoom ring, it enables stepless beam angle adjustment from mid to tele, allowing quick changes to the illuminated area.

Precise Optics for Outstanding Light Quality

The PJ-FMM-18-36 features a high-precision optical design tailored to its zoom structure, ensuring a high standard of imaging quality. It maintains consistent optical performance across the zoom range to meet professional demands for light quality.

Aspherical Lens

Minimizes aberration, enhances uniformity and reduces distortion.

Lens Coating

Improves light transmission and color accuracy, maintaining illuminance with minimal color shift.

Matte Inner Barrel

Reduces internal reflections and stray light for sharp beam.

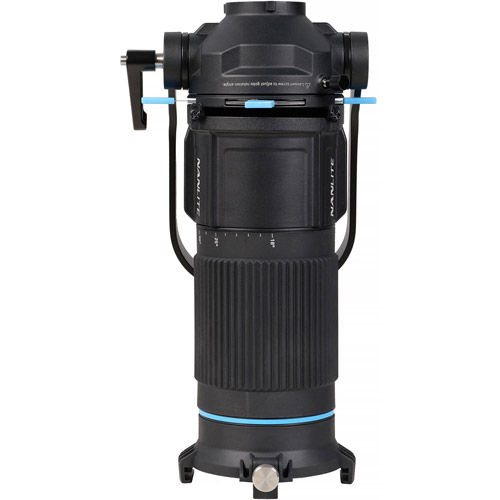

Refined Structure for On-Set Versatility

The PJ-FMM-18-36 features a composite housing made primarily of aluminum alloy, supplemented with nylon, enhancing durability while reducing weight. It is designed for reliable use in demanding production environments.

Stepless Locking Mechanism

Paired with an adjustable locking handle, it allows the tilt angle to be fixed at any position.

Curved Yoke

Allows for wider angles when tilting down.

Two-in-One Mounting Options

Compatible with both 1-1/8" junior receivers and 5/8" baby pins, allowing setup on different light stands.

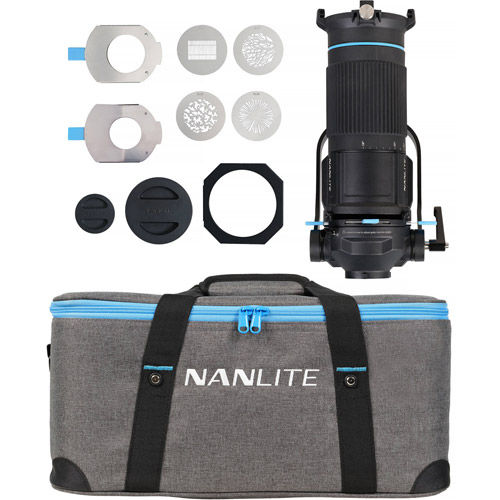

Creative Control with Multiple Accessories

A range of standard and optional accessories are available for the PJ-FMM-18-36, including shutters, gobos, gobo holder, iris diaphragm, and gel frame. These support various lighting control methods such as cutting, projecting, focusing, and color tinting, expanding creative freedom and bringing visual ideas to life.

Iris

The optional 18-blade iris diaphragm (PJ-FMM-AI), also compatible with FM Mount Projection Attachment with 10°/19°/36° Lens (PJ-FMM-10/19/36), allows easy control over beam diameter.

Gobo

4 gobos are included, with another 4 optional gobo sets available. The included gobo holder accepts standard M-size patterns for wide compatibility.

Gel Frame

With a simple lock catch design, the included gel frame allows for easy insertion of gels to tint the light.

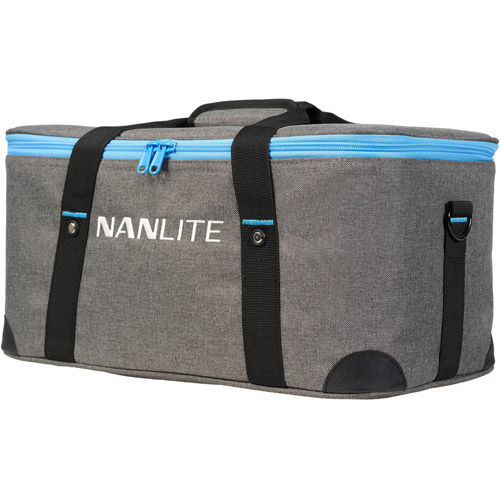

Secure Storage and Transport

A premium padded carrying bag with a thick lining is included. It fits the projection attachment snugly and provides excellent shock protection during transport.
