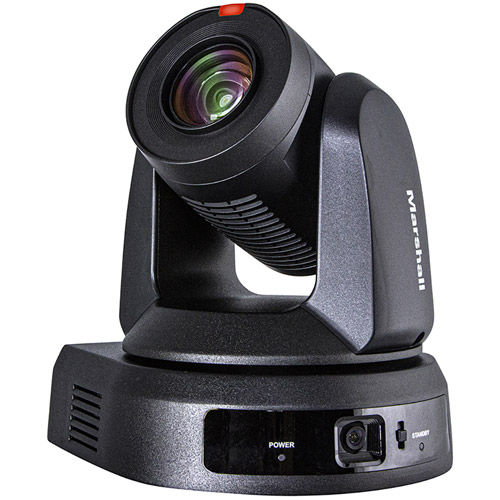

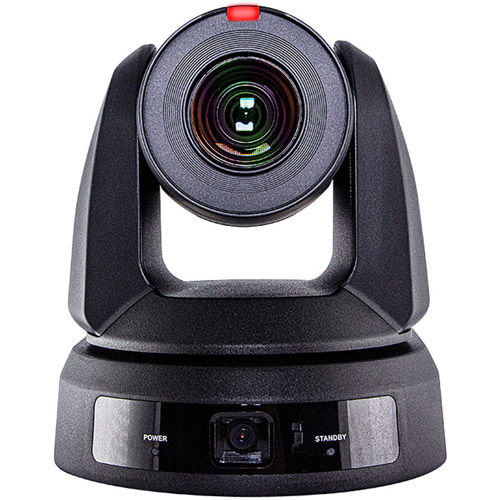

Marshall Electronics CV625-TB PTZ Camera

CV625-TB PTZ Camera

Marshall CV625-TB/TW PTZ cameras feature the ability to automatically AI track, follow, and frame presenters for a more accurate and smoother self-adjusting presentation. The CV625 4k UHD cameras feature a high-performance 8-Megapixel 1/1.8-inch sensor to capture crisp, high-quality UHD video. The camera delivers up to 3840 x 2160 resolution at 60 frames per second (fps) with an 83-degree horizontal angle of view. The second static camera is a wide-angle view camera made for that panoramic angle of view. The CV625 offers versatility for various applications with its range of outputs, including 4K HDMI/RTSP streaming, Full HD 3G-SDI, Ethernet, and USB 3.0. Combining a 2-camera featured set for both remote and live installations, where the versatility of having a panoramic view of the area and a focused view of the subject or content is vital.

Key Features:

• Accurate auto-track, follow and frame
• 8 Megapixel FHD Sensor (1/1.8") – 2160p, 1080p, & 720p (progressive), and 1080i (interlaced HDMI Output only)
• 3G-SDI, HDMI, Ethernet and USB outputs
• 25x optical zoom (7.1 mm ~ 171.95mm) starting at 83° H.AOV
• 340° pan and 120° tilt range with selectable PTZ maneuver speeds
• IP formats: RTSP, RTMP, RTMPS, SRT, Dante AV-H (Dante Ready)
• 3.5mm TRS Stereo Audio Input (Mic/Line) embedding on all available outputs
• PoE+ (IEEE802.3at), DC: 23.5W (max), PoE: 24.5W (max)

AI Auto Track, Follow and Frame

Take the reins of your production with our AI auto-tracking system, designed to be proactive and predictive. This cutting-edge technology allows you to follow and frame presenters with natural and smooth maneuvers. Use the auto-tracking feature along with the panoramic camera to capture the perfect presentation. With the ability to pan, tilt, and zoom, the system uses AI to recognize faces and learn the movement dynamics of the subject, thereby anticipating motion and ensuring accurate following and framing with smooth transitions.

Two Camera Production

The CV625-TB/TW 4K UHD is equipped with a two-camera set featuring a perfect combination for both your remote and live presentations. With an optical 25X zoom lens, ideal for capturing the presenter or a focused presentation in 4K while having a fixed panoramic wide view of the audience, and the capability to generate a head count.

Control Features Made Simple

With the two-camera feature in one unit, you can switch between two cameras or have a picture-in-picture as your output.

Crisp Full-HD Video Output

The CV625-TB/TW 4K UHD are built around a professional-grade 8-Megapixel 1/1.8-inch Sony sensor with smooth 25x Optical Zoom (7.1 mm ~ 171.95 mm) producing clear HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p. Smart AI auto-focus identifies faces and maintains accurate and sharp focus of subjects.
