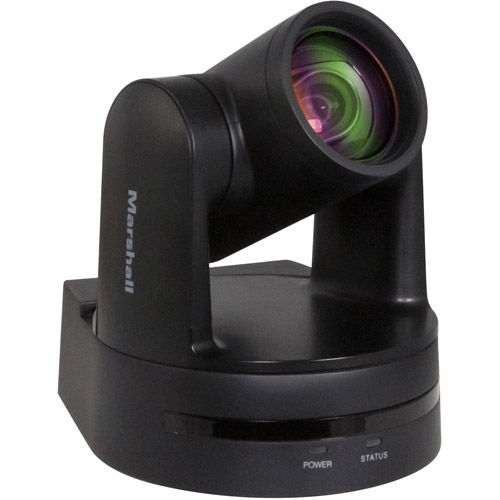

Marshall Electronics CV612-TBI PTZ Camera

CV612-TBI PTZ Camera

The CV612-TBI/CV612-TWI 12X optical zoom 3GSDI camera utilizes a professional-grade 2.07-megapixel sensor to capture crisp HD video starting at a Pan rotation of 170° and a tilt rotation of -90°-+90°, all in a 1920x1080p resolution. Multiple available outputs include 3GSD, HDMI, USB 3.0 and IP. Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of live streams, broadcast, and professional A/V applications for all your streaming applications.

Key Features:

• Accurate auto-track, follow and frame subjects using AI facial learning technology
• 1/2.8" high quality HD CMOS sensor with 2.07 megapixel-inch
• Format Resolutions 1920x1080, 1280x720, 640x480
• Video outputs include: 3GSDI, HDMI, USB3.0 and IP
• 12x optical zoom (4.1~49.2mm)

AI Auto Track Technology

The CV612 models can automatically track, follow, and frame presenters using AI facial learning for accurate and smooth self-adjusting maneuvers. Tracking features include Presenter real-time tracking and Zone regional tracking, Presenter mode follows a single person and ignores others.  Regional mode follows a person from one established shot to another.

Additional Features:

• Supports real time tracking and regional tracking up to 8m
• Dante Ready AV-H supports up to 1080p and 2 audio channels (Requires end user activation in Dante Controller)
• Horizontal Angle of View 6.6°- 70.3°
• Pan rotation of +/- 170°, Tilt rotation of -90°-+90°

Live Streaming Made Simple

The camera can stream HEVC/H.264 directly via RTSP/RTMP/SRT while simultaneously outputting video via SDI, HDMI making it an ideal solution to stream live to YouTube, Livestream, Facebook (Meta), Twitch, etc. High quality USB-C is available also. When USB and SDI are set to the same format/frame rate, all four video output types are available simultaneously.

Flexibility Workflow

CV612 camera is equally at home in houses of worship, classrooms, reality shows, pod casting channels and corporate boardrooms. It's compact size allows it to fit on a desktop, on a shelf, or concealed by set decorations in a reality shoot. It operates equally well on a surface or mounted upside down from an overhead location.

High Compatibility

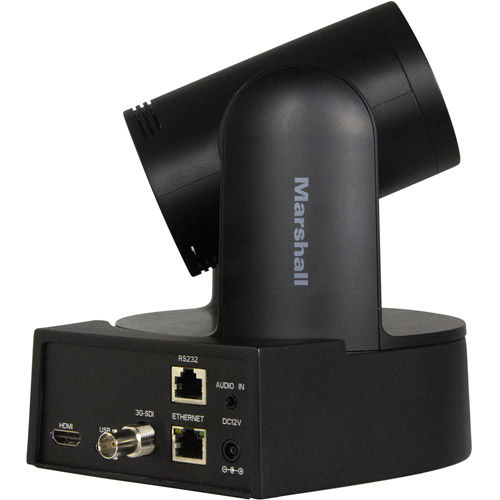

Multiple output types, multiple control methods and P0E+ power make life easy for system designers. Nearly all common control methods are supported including Visca & Pelco (RS232), Visca-over-IP, ONVIF, USB UVC, Web Browser setup and control, plus a hand-held IR Remote. It's a perfect match for Marshall’s VS-PTC-300 PTZ control panel as well as many 3rd party products.
