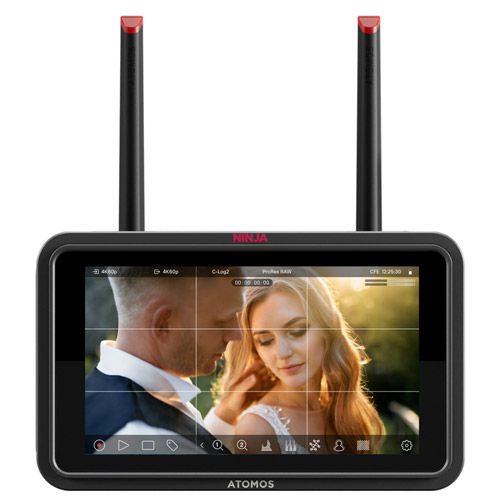

Atomos Ninja TX GO HDMI & CFexpress 5-inch Monitor-Recorder

Ninja TX GO
The Ultimate Monitor-Recorder for HDMI Cameras

Ninja TX GO combines HDMI I/O, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools, camera control and touch to focus. It features built-in camera-to-cloud, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. Ideal for content creators with HDMI DSLRs and mirrorless cameras.

Key Features:

• Record up to 6Kp30 RAW over HDMI
• Encode to Apple ProRes / ProRes RAW / Avid DNx / H.265 / H.264
• Capture to CFexpress Type B or USB-C external storage
• Super-bright, 1500-nit, 5-inch touchscreen display
• Free camera control and touch-to-focus on supported camera models
• Built-in Wi-Fi 6E for camera to cloud workflows
• NDI 6 / HX3 TX/RX streaming capability
• AtomOS Linux-based operating system with OTA updates
• Secure locking HDMI / USB-C cable system
• Powered by USB-C, NP-F battery or AC adaptor

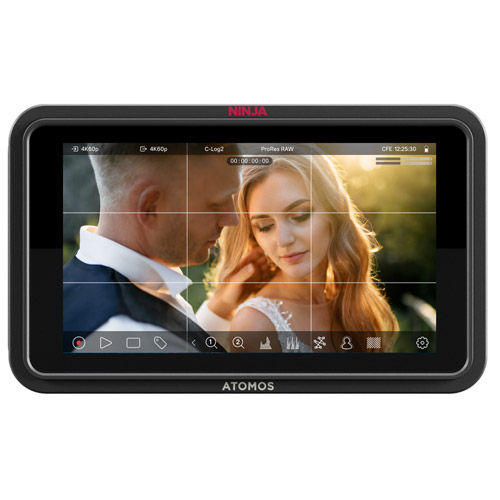

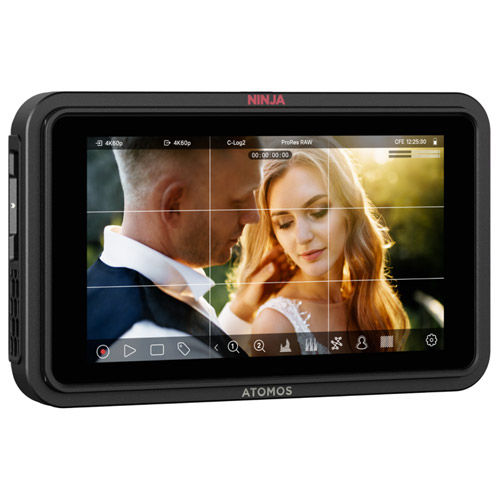

Display

5.2″ IPS touchscreen, with increased brightness to 1500nits – perfect for clear, precise and vivid monitoring in any setting, from the outdoors in sunlight, to a studio.  The 8/10-bit colour processing, HDR support, Rec. 709 colour gamut, and calibration support ensure accurate and defined colour and high-quality monitoring.

New Operating System & Build

Powered by the lightning-fast AtomOS Linux operating with user-friendly UX and a full suite of professional monitoring tools, and a re-engineered build providing a quieter, cooler and more efficient operation.

Wireless Features and Camera to Cloud

Ninja TX GO camera monitor & recorder comes with connectivity built-in, including, camera-to-cloud with free ATOMOSphere membership, NDI 6 streaming and full integration into an NDI network,

Ninja TX GO is also the leader in Camera to Cloud (C2C) workflows – allowing you to upload your video files directly from your Atomos monitor-recorder to the cloud. Atomos supports direct progressive upload to ATOMOSphere (with a free 20GB starter storage plan), as well as Adobe Frame.io and Dropbox.

The wireless capabilities also provide ‘over the air’ (OTA) firmware updates, for a quick and convenient way to keep the OS current.

Comprehensive Colour and Metadata

The Ninja TX supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

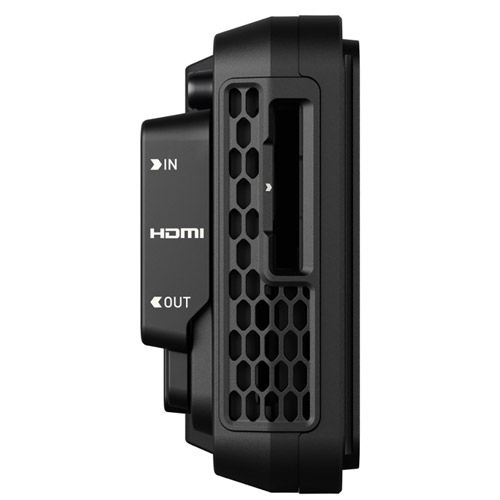

HDMI Input/Output

HDMI input supports 6K video up to 30 fps, up to 4K60, and up to 1080p120. Loop-through passes the incoming HDMI signal from the camera to another device, for example, an external monitor, wireless transmitter, or live streaming encoder. Via the HDMI input, you can record raw metadata such as white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, and gamut.

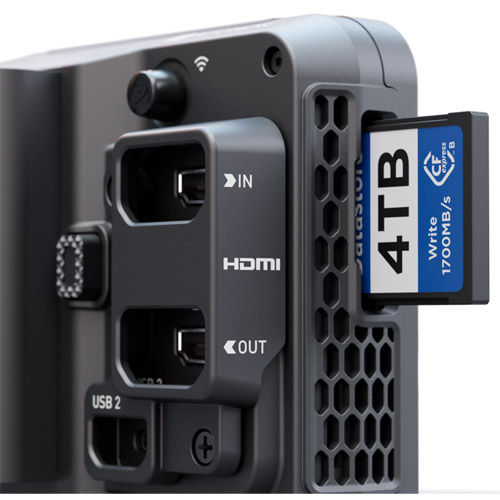

Recording & Media Options

The Ninja TX now includes a CFexpress Type B slot and dual USB-C recording outputs supporting fast data transfer to external USB media. The optionality is designed for scalability and futureproofing. In addition to recording directly to storage, the USB-C ports can also be used for calibration, custom 3D LUT uploads, adding audio devices.

Professional Monitoring Tools

The Ninja TX offers a n expansive suite of easy to use, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false colour (including ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveforms, RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). It also provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups.

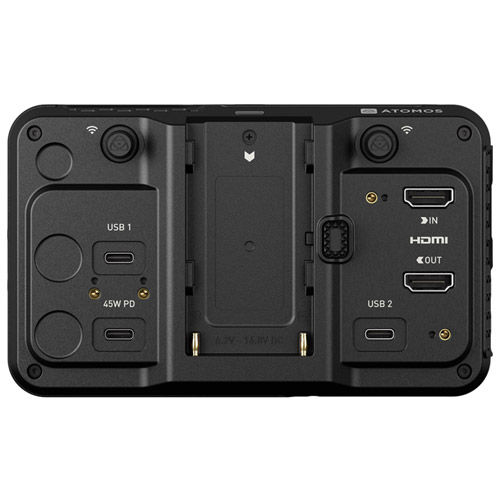

Power Options

An L-series battery on the back of the Ninja TX supports NP-F L-series batteries. Alternatively, a battery eliminator can be used to provide DC power to the monitor, or a USB-C port supports 30W PD power delivery with the included cable.
