- Webcode: 487973 • Mfr: Q43-8K
Product Highlights
- 43" 8K Studio Production Monitor
- 3840 x 2160 Max. Resolution
- 400 cd/m² Brightness
- 4x 12G-SDI / 12G SFP+ / HDMI 2.0 Video Inputs
- 4x 12G-SDI / HDMI 2.0 Video Outputs
- 1200:1 Contrast Ratio
- 178° View Angle

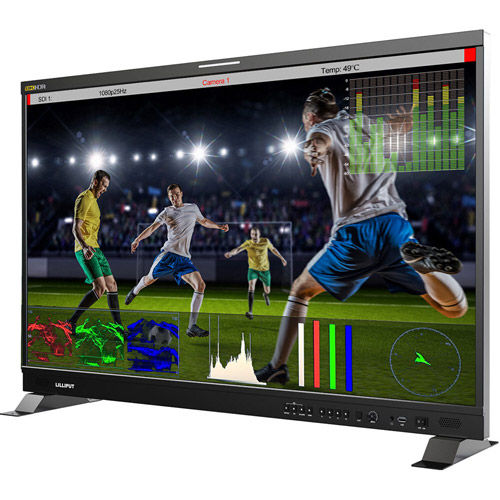

Lilliput Q43-8K 43 inch 8K 12G-SDI 3840 x 2160 Studio Production Monitor
Lilliput Q43-8K 43 inch 8K 12G-SDI 3840...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Q43-8K 8K | 12G-SDI 43" Production Monitor
Production / Broadcast monitor for professional camcorder & video camera Application for video post production & making movies.
8K 12G-SDI Signal
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.
LAN/RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.
Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+ Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring.
Easy-to-use
F1~F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc.

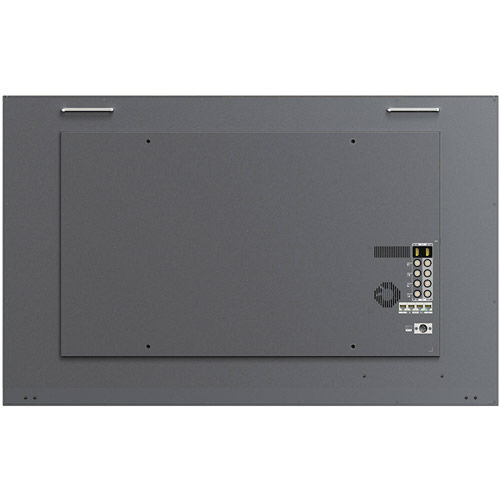

Wall Mount
Compatible with most 400x400mm wall-mounted brackets on the market. (Screw: M6/30mm)
Studio Monitoring
Monitor can be used for 4K video monitoring in the studio, and can also be combined with other video monitor to create a video wall.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Q43-8K 43 inch 8K 12G-SDI 3840 x 2160 Studio Production Monitor |
||
|---|---|---|
Display |
Panel | 43″ |
| Physical Resolution | 3840*2160 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400 cd/m² | |
| Contrast | 1200：1 | |
| Viewing Angle | 178°/178°（H/V) | |
| HDR | ST2084 300/1000/10000/HLG | |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… | |
| Look up Table(LUT)support | 3D LUT (.cube format) | |
| Technology | Calibration to Rec.709 with optional calibration unit | |
Video Input |
SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| SFP | 1×12G SFP+(Fiber module for optional) | |
| HDMI | 1×HDMI 2.0 | |
Video Loop Output |
SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| HDMI | 1×HDMI 2.0 | |
Supported Formats |
SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | |
Audio In/Out (48kHz PCM AUDIO) |
SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 2 | |
Remote Control |
RS422 | In/out |
| GPI | 1 | |
| LAN | 1 | |
Power |
Input Voltage | DC 24V |
| Power Consumption | ≤77W (24V) | |
Environment |
Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ | |
Other |
Dimension(LWD) | 968.5mm × 604.9mm × 48.5mm |
| Weight | 14.5kg | |
