- Webcode: 488876 • Mfr: Q18-ABBP
Product Highlights
- 17.3" 4K Broadcast Monitor
- 3840 x 2160 Max. Resolution
- 400 cd/m² Brightness
- HDMI 2.0 / 2x BNC (12G-SDI) / 2x BNC (3G-SDI) Video Input
- HDMI 2.0 / 2x BNC (12G-SDI) / 2x BNC (3G-SDI) Video Output
- 1200:1 Contrast Ratio
- 170° View Angle
- G Mount

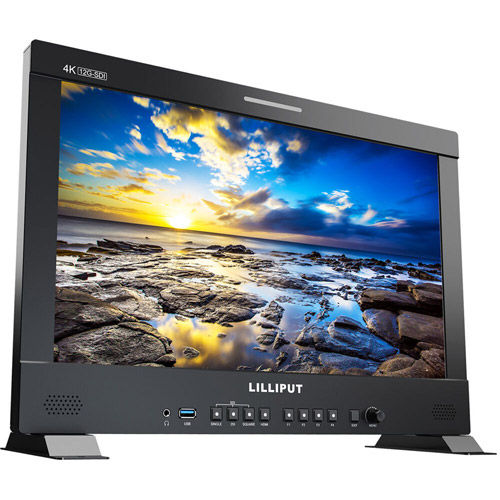

Lilliput Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)
Lilliput Q18 17.3" 12G-SDI/HDMI Broadca...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor
8K 12G-SDI SIGNAL
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

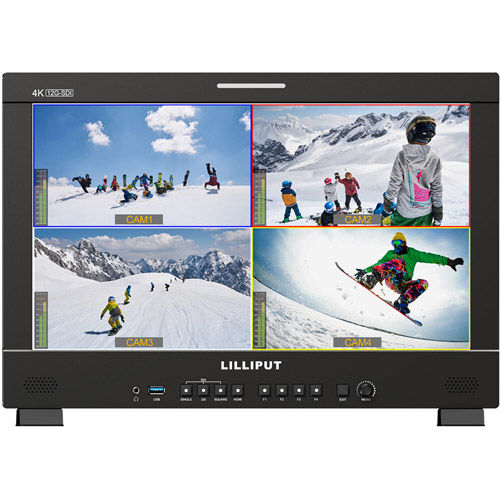

Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+ Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring.
Rack Mount Intelligent SDI Monitoring
It has a various of mounting methods for broadcast, on-site monitoring and live broadcast truck, etc. The 17.3" monitor's housing can be perfectly embedded in a 19-inch cabinet. This monitor is featured with mutiview functions that allow users to check out different video signals at the same time, making it easy to create a multi-camera monitoring scenario.
Easy-to-use
F1~F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, waveform and histogram. Use the rotary button to select and adjust the value among of sharpness, saturation, tint and volume, etc.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor |
|
|---|---|
Display |
|
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 |
| Display Screen | 17.3" |
| Resolution | 3840 x 2160 |
| Viewing Angle | 170° / 170° |
Monitor Specifications |
|
| Video Inputs | SDI: 4x12G, (Supported 8K-SDI Formats Quad Link) SFP: 1×12G SFP+(Fiber module for optional) HDMI: 1xHDMI 2.0 |
| Video Loop Output | SDI: 4x12G, (Supported 8K-SDI Formats Quad Link) HDMI: 1xHDMI 2.0 |
| Supported Formats | SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60... SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60... HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| Audio In/Out | SDI 16ch 48kHz 24-bit HDMI 8ch 24-bit Ear Jack 3.5mm Built-in Speakers 2 |
| Remote Control | RS422 In/out GPI 1 LAN 1 |
|
Power |
Input Voltage: DC 12-24V Power Consumption: ≤40W (15V) Compatible batteries: V-Lock or Anton Bauer Mount Input voltage (battery): 14.8V nominal |
| Environment | Operating Temperature 0°C~50°C Storage Temperature -20°C~60°C |
| Other | Dimension(LWD): 433.9 x 294.2 x 45.7mm Weight: 3.9 kg (8.5 lbs) |
