- Webcode: 488881 • Mfr: TK2150/C
Product Highlights
- 21.5" Full HD Monitor
- 1920×1080 Max. Resolution
- 1000 nits Brightness
- 2x HDMI / 3.5 mm Ear Jack Audio Input
- 1000:1 Contrast Ratio
- 178° View Angle
- IP65 IP Rating

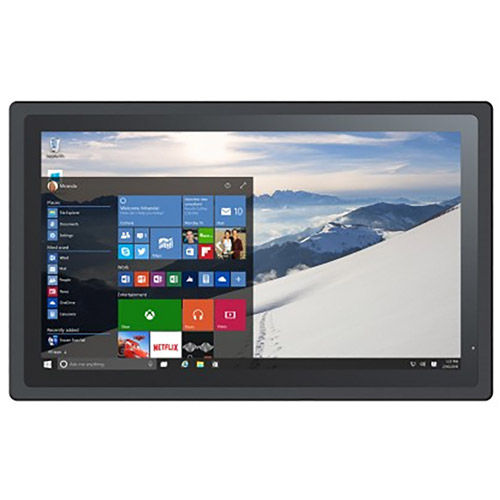

Lilliput 21.5" Full HD Industrial Display
Lilliput 21.5" Full HD Industrial Displ...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
TK2150/C - 21.5” Monitor
The Lilliput TK2150/C monitor is solid size LED screen with a 1000 nits high brightness screen panel. Ideal for use in information points, or point of sale terminals he interfaces support a wide range of customization options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP65 front panel design is a great convenience for installation methods and application.
21.5" Touch Screen Monitor
The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP65 front panel design is a great convenience for installation methods and applications.
1000 nits & 10-Point Capacitive Touch
Selection of high-quality industrial-grade screen on the market, which not only has prominent color representation, but also high brightness of 1000 nits screen makes it suitable for outdoor sunlight environment.
Rich Interfaces
In addition to the interfaces shown, the engineers have creatively reserved a number of expansion ports on the mainboard that can be uniquely customized for different requests The readily replaceable sheet metal also provides a great deal of ease in modifying the interfaces.
IP65 Rating Screen Panel
The front panel is designed to carry IP65 degree of protection which offer complete protection against particles, and a good level of protection against water, up to water projected by a nozzle against front panel from any direction.
Industrial HMI Applications
Due to increasingly developed world of industrial automation, HMIs are used in a wide range of applications. As the controlling and monitoring core of automated processes, stability, efficiency and environmental adaptability are particularly important. Therefore, it is adapted to different scenarios.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
21.5" Full HD Industrial Display |
||
|---|---|---|
| Display | Panel | 21.5" LCD |
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:09 | |
| Brightness | 1000 nits | |
| Contrast | 1000:01:00 | |
| Viewing Angle | 178° 178°(H/) | |
| Input | HDMI | 1 × HDMI 1.4b |
| VGA | 1 | |
| AV | 1 | |
| Supported | HDMI | 2160р 24/25/30, 1080р 24/25/30/50/60, |
| Formats | 1080i 50/60, 720p 50/60... | |
| Audio In/Out | Speaker | 2 |
| HDMI | 2ch | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit | |
| Power | Input Voltage | DC 12-24V |
| Power Consumption | ≤37W (15V) | |
| Environment | Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C | |
| Waterproof | Front Panel IP ×5 | |
| Dustproof | Front Panel IP 6x | |
| Dimensions | Dimensions (LWD) | 556mm × 344.5mm × 48.2mm |
| Weight | 5.99 kg (13.2 lbs) | |
