- Webcode: 488885 • Mfr: TK1560/C
Product Highlights
- 15.6" Full HD Touchscreen Monitor
- 1920 x 1080 Max. Resolution
- 1000 cd/m² Brightness
- HDMI 1.4b / VGA Video Input
- 1000:1 Contrast Ratio
- LCD Display
- IP64 IP Rating

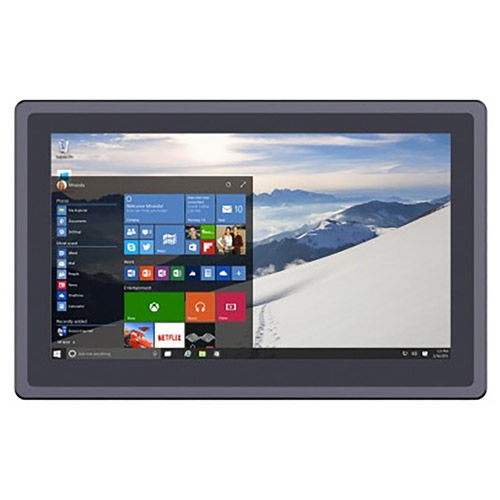

Lilliput TK1560/C 15.6" Full HD Specialty Monitor
Lilliput TK1560/C 15.6" Full HD Special...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
TK1560/T 15.6" Full HD Touchscreen Specialty Monitor

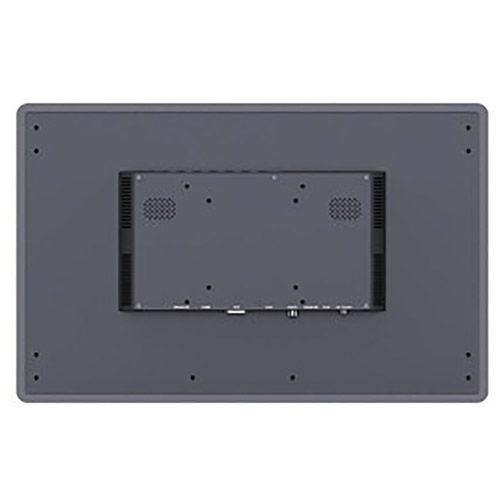

The TK1560/T monitor is a 15.6" HDMI monitor - a bigger brother to the Lilliput TK1330 - which sports a capacitive 10 point touchscreen and has a very high brightness panel - rated at 1000cdm². With a solid metal frame, it is a rugged monitor that can be used outdoors or in industrial settings with it's IP64 rating. With a neat, compact design, the TK1560 monitor has an all-metal two-box design. The electronics for the monitor are in the smaller box section at the back of the monitor (which also hosts the controls for the system), with the main panel being housed in the larger front area. The front also hosts a sensor that allows for automated dimming in accordance with brightness of the surrounding environment.
In addition to the standard video inputs, our engineers have reserved a number of expansion ports on the main board that can be customized to a customer's individual connection requirements. Further, a customisable metal covering means that the exterior of the monitor can be modified to suit. A built in cable clamp will secure any cables you plug into the monitor on to the housing. This means that in high vibration environments or with usage scenarios where "cable-jerk" may become an issue, the TK1330 has a secure option available.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
TK1560/T 15.6" Full HD Touchscreen Specialty Monitor |
|
|---|---|
Display |
|
| Brightness | 1000 cdm² |
| Contrast Ratio | 1000:1 |
| Resolution | 1920 x 1080 |
| Touch Panel | 10 Point Capacitive Touch |
| Viewing Angle | 160° / 160° |
| Screen Size | 15.6" LCD |
HDMI Video Input |
|
| Formats | 2160p 24 / 25 / 30, 1080p 24/25/30/50/60, 1080i50/60, 720p 50/60 |
Connections |
|
| HDMI Video Input | 1x HDMI 1.4b |
| VGA Video Input | 1x VGA |
| A/V Input | 1x A/V Input |
Monitor Specifications |
|
| Audio Outputs | HDMI - 2 Channel, Speakers - 2, Ear Jack - 3.5mm - 2ch 48KHz 24-Bit |
Size |
|
| Dimensions | 408mm x 259mm x 36.5mm // VESA Mount Hole Set 75mm + 100mm |
| Weight | 2900 |
Power |
|
| Input Voltage | DC 12-24V |
| Power Consumption | <= 24.5W (15V) |
Environment |
|
| IP Rating | IP64 Front Panel |
| Operating Temperature | -20°c to 60°c |
| Storage Temperature | -30°C~70°C |
