- Webcode: 488890 • Mfr: Q23-VBP
Product Highlights
- 23.8" Broadcast Studio Monitor
- 3840 x 2160 Max. Resolution
- 400 cd/m² Brightness
- HDMI / 4x 12G-SDI Video Input
- 1200:1 Contrast Ratio
- 170° View Angle
- V Mount

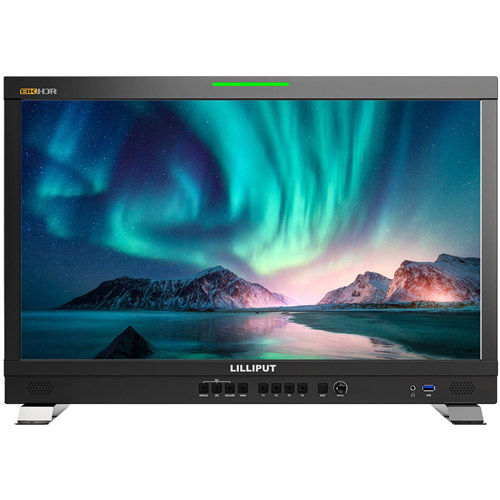

Lilliput 23.8" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
Lilliput 23.8" 12G-SDI/HDMI Broadcast S...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Q23-8K - 23.8" 8K 12G-SDI Production Monitor

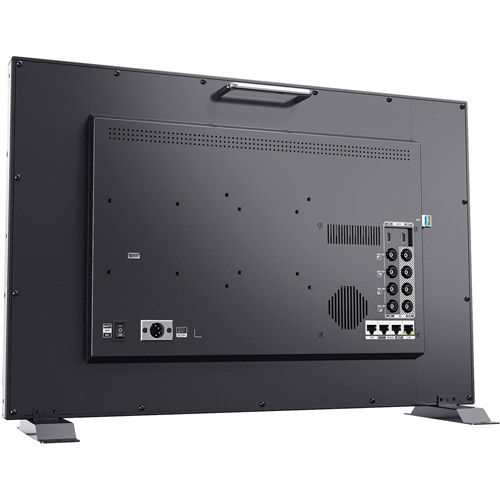

The Lilliput Q23-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel. With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.
8K 12G-SDI SIGNAL
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.
LAN/RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.
Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+
Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring.
Rack Mount
Intelligent SDI Monitoring
It has a various of mounting methods for broadcast, on-site monitoring and live broadcast truck, etc. The 17.3" monitor's housing can be perfectly embedded in a 19-inch cabinet. This monitor is featured with mutiview functions that allow users to check out different video signals at the same time, making it easy to create a multi-camera monitoring scenario.
Easy-to-use
F1~F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, waveform and histogram. Use the rotary button to select and adjust the value among of sharpness, saturation, tint and volume, etc.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Q23-8K - 23.8" 8K 12G-SDI Production Monitor |
|
|---|---|
Display |
|
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Colour Space | REC .709 and DCI-P (90%) |
| Contrast Ratio | 1200 : 1 |
| Resolution | 3840 x 2160 |
| Viewing Angle | 170° / 170° |
| HDR | ST2084 300/1000/10000/HLG |
| LUT Support | 3D LUT (.cube format) |
| Screen Size | 23.8" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use |
Supported Formats |
|
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
Monitor Specifications |
|
| Video Inputs | SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input |
| Video Outputs | SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output |
Size |
|
| Dimensions | 567 x 376.4 x 45.7 mm |
Power |
|
| Input Voltage | DC 12V - 24V |
| Power Consumption | <= 60W (15V) |
Environment |
|
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C to 60°C |
