- Webcode: 488898 • Mfr: FA1016-NP/C
- FREE SHIPPING Available
Product Highlights
- 10.1" WUXGA IPS LCD Monitor
- Up To 1920 x 1080 Max. Resolution
- 320 cd/m² Brightness
- HDMI / VGA Video Inputs
- 1000:1 Contrast Ratio
- 170º View Angle

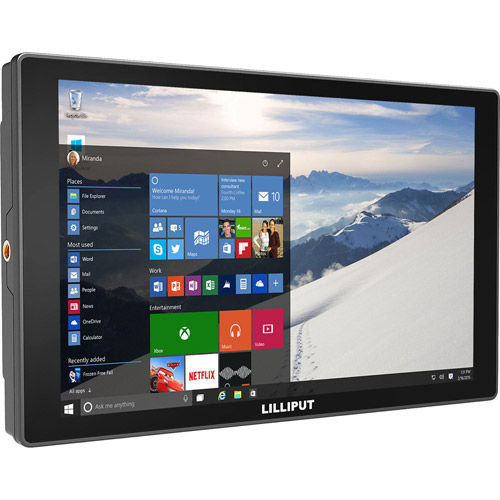

Lilliput FA1016-NP/C 10.1" Class WUXGA IPS LCD Monitor
Lilliput FA1016-NP/C 10.1" Class WUXGA ...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
FA1016-NP/C 10.1" LCD Monitor
The Lilliput FA1016-NP/C/T is a 10.1 inch 16:9 LCD monitor with HDMI and VGA video inputs. As our highest resolution HDMI 10" monitor, it has a 1920 x 1200 pixel panel, and 1000:1 contrast ratio - allowing for the clearest image for installation into either an industrial or camera based environment. This model also features a capacitive touch panel. Connected by a separate USB cable to a host device, it uses the built in HID driver set of Windows and will work right out of the box, giving you full control of your work environment with the lightest of touches. With full lamination technology you can see every detail in massive Full HD visual quality. The Lilliput FA1016-NP/C/T also features unique Glass+Glass (G+G, G&G) technology, creating a smooth appearance for its outer body. It facilitates the clearest view possible and allows for a bright, tidy visual experience in an industrial or low light environment.
HDMI+VGA Interfaces
The FA1016-NP/C/T is compatible with both HDMI and VGA signals, designed to be used with legacy VGA as well as current HDMI video input feeds. Perfect for Home Security systems, industrial machinery monitoring, and camera confidence monitoring. Wide Voltage Power - Features high level components to support 7 to 24V power supply voltage, allowing the monitor to be installed in more varied and different installation locations (PSV vehicles, trucks etc)
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
FA1016-NP/C/T |
|
|---|---|
Monitor Specifications |
|
| Screen Size (diagonal) | 10.1 inch |
| Aspect Ratio | 16:10 |
| Native Resolution | 1920 x 1200 (native) - 10.1" 8 Bit IPS |
| Maximum Resolution | 1920×1080 (maximum) |
| Viewing Angle (degrees) | 170º x, 170º y |
| Brightness Ratio (cd/m2) | 320 |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Video Inputs | HDMI, VGA |
| Audio Outputs | Internal Speaker, Earphone Jack |
| Touchscreen Technology | 10 Point Capacitive Touchscreen |
| Input Power | DC 7-24V (12V 1.5A DC Plug provided) |
| Operating Temperature | 0°c to +50° degrees |
| Mounting Options | VESA 75, ¼ inch BSW thread, vertical slot mount mechanism |
Contents of Box |
|
| Product | 1 x FA1016-NP/C/T monitor |
| Connection Cables | 1x HDMI A-A cable, 1x VGA cable |
| Power Adaptor | 1x DC 12V plug (available in UK, US and EU style), |
| Mounts and stands | Gimbal Bracket (Optional) // VESA 75 Stand (Optional) |
Dimensions |
|
| Height | 157 mm (6.1") |
| Width | 252 mm (9.9") |
| Depth | 25 mm (0.98") |
| Weight | 560 g (19.7 oz) |
| Storage Temperature | -20°c to 60°c |
