Product Highlights
- PowerLite WUXGA LCD Laser Projector
- 1920 x 1200 Max. Resolution
- Up To 1.07 billion Colours
- 6500 lumens Illumination
- 5,000,000:1 Contrast Ratio
- 2x HDMI Out / HDBase T / USB Type-A / USB Type-B / RJ45 Connection
- 100-240 VAC Power Source

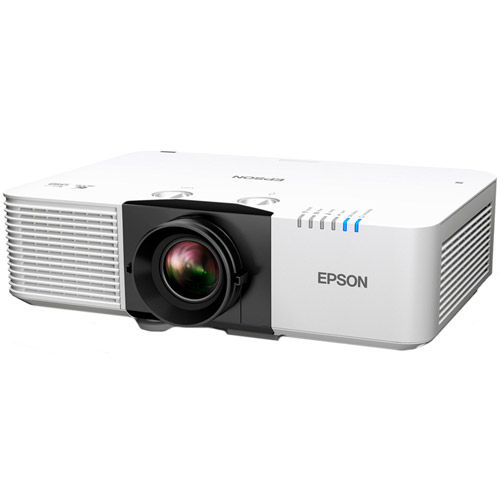

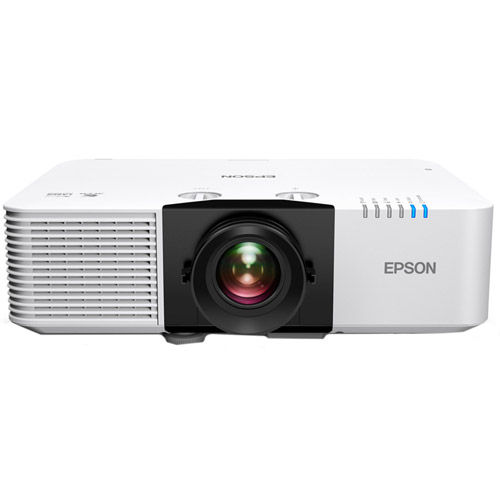

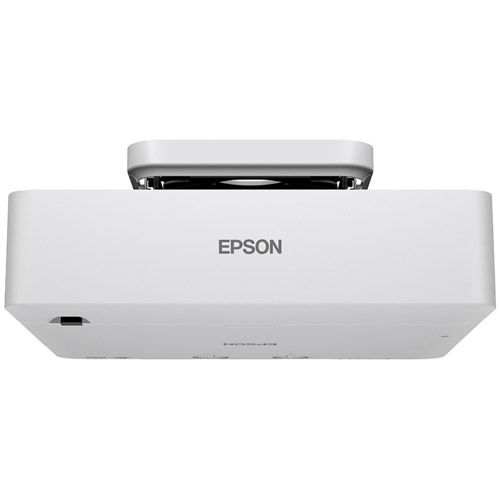

Epson PowerLite L690U 6,500-Lumen WUXGA 3LCD Laser Projector
Epson PowerLite L690U 6,500-Lumen WU...- Toronto Available for Order
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary Available for Order
- Edmonton Available for Order
Lease this for: $169.75 Learn More
Overview
PowerLite L690U 6,500-Lumen WUXGA 3LCD Laser Projector
Experience an incredibly bright and compact projector with pro-level features.
The PowerLite L690U adds pro features to the compact and versatile PowerLite L-Series projector family. Featuring 6,500-lumens of colour and white brightness, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. This powerful projector produces exceptionally vibrant, high-definition images with Full HD WUXGA resolution up to 500'' in 16:10, plus is capable of producing a variety of other aspect ratios, including ultra wide 16:6 and 21:9.
Key Features:
- 6,500 lumens colour/white brightness
- WUXGA for clear, detailed images
- Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
- Lightweight, compact design allows for easy installation
- Up to 30,000-hour laser light source and air filter
Designed with convenience in mind, the PowerLite L690U features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection, Apple AirPlay and Miracast. Plus, simplify complex multi-projector applications with the optional attachable PixAlign camera.
What's Included
PowerLite L690U ProjectorPower Cable
Projector Remote Control With Batteries
Quick Setup Sheet
Cable Cover
Reviews
Product Specifications
PowerLite L690U 6500 Lumens WUXGA 3LCD Laser Projector |
|
|---|---|
| General | Projection System: RGB liquid crystal shutter projection system Projection Method: Front/rear/ceiling mount LCD Size: 0.67" (C2 Fine) Driving Method: Poly-Silicon TFT Active Matrix Pixel Number: 2,304,000 dots (1920 x 1200) x 3 Native Resolution: 1920 x 1200 (WUXGA) Resolution On-Screen: 1920 x 1200 (WUXGA) Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050 Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9* * With vertical image shift control within letterbox area. Pixel Arrangement: Cross stripe Color Brightness: Color light output: 6,500 lumens White Brightness: White light output: 6,500 lumens Contrast Ratio: Over 5,000,000:1 Brightness Uniformity (Typical): 88% Color Reproduction: Up to 1.07 billion colors Size (Projected Distance): 50" – 500" Projected Distance: 80" screen 2.33 m – 3.78 m Lens Shift: Vertical: ±50%; Horizontal: ±20% Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees Light Source: Laser Diode Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours |
| Projection Lens | Type: Optical zoom (manual)/Focus (manual) F-Number: 1.5 – 1.7 Focal Length: 20.0 mm – 31.8 mm Zoom Ratio: 1.0 – 1.6x (optical) Throw Rate Range: 1.35 – 2.20 (optical) Lens Cover Lens cap (without string) |
| Wireless Specifications | Frequency Type (Modulations): 802.11 b/g/n/ac/ax (2.4 GHz) Supported Security Type Quick Mode: Open, WPA2/WPA3- PSK, WPA2/WPA3-EAP; Advanced Mode: WPA/WPA2-PSK, WPA/ WPA2-EAP |
| Other Features | Operating Temperature: 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C) Power Supply Voltage: 100 V – 240 V ± 10%, 50/60 Hz AC Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI, USB, VGA 15-pin, BNC) Sleep Mode: Yes (with timer) HDMI CEC Control: Yes Power Consumption: 415 W (Normal Mode) 305 W (Quiet and extended) 2.4 W (Standby comm on) 0.3 W (Standby comm off) Fan Noise: 32 dB (Normal Mode); max. 25 dB (ECO Mode) Security: Security cable hole, Kensington® lock provision A/V Mute: Yes Speaker(s): 10 W (mono) Miracast: Yes Epson iProjection: Yes (V4) Apple Airplay: Yes Split Screen: Yes (up to 2 Screens) |
| Interfaces | HDMI (HDCP 2.3) x 2 HDMI Out x 1 HDBaseT x 1 Variable Audio Out: Mini Stereo x 1 USB Connector Type-A x 1 USB Connector Type-B x 1 Serial: RS-232c x 1 Wired LAN RJ45 x 1 Wireless LAN: Built-in |
| Other Features | Content Playback Yes Quick Corner Yes Arc Correction Yes Edge Blending Yes Screen Sharing Yes Corner Wall Yes Curved Surface Yes Camera Optional |
| Effective Scanning Frequency Range | Pixel Clock 25.1 MHz to 594 MHz Horizontal 26 kHz to 135 kHz Vertical 23.98/24/25/29.97/30/50/59.94/60 Hz |
| Dimensions | Excluding Feet 17.32" x 11.97" x 4.80" Including Feet 17.32" x 13.39" x 5.43" Weight 18.1 lb |
| Network and Remote Control | Features Power, source search selection, A/V Mute, number input, menu, esc, select, Freeze, ID, Customize, E-Zoom, mute, volume, playback control and pointer functions Operating Angle Rear: Right/Left: -55 to +55 degrees; Upper/ Lower: +75 to +15 degrees; Front: Right/Left: -30 to +30 degrees; Upper/Lower: 0 to +60 degrees Operating Distance 26 ft (8 m) Network Control PJLink, Crestron Integrated partner, Crestron Connected V2 with XiO Cloud, Extron IP link, Extron XTP, AMX, Control4 |
| Eco Features | RoHS compliant End-of-life options available10 Epson America, Inc. is a SmartWay Transport Partner11 Design and Manufacturing centers utilize 100% renewable electricity Dynamic Contrast (ECO) Mode reduces power consumption by 36% |
