- Webcode: 490777 • Mfr: FL-12E
Product Highlights
- Motorized Fresnel Lens
- FE Mount (with Electronic Contacts)
- 15-35° Beam Angle
- Includes Barndoors & Carrying Bag

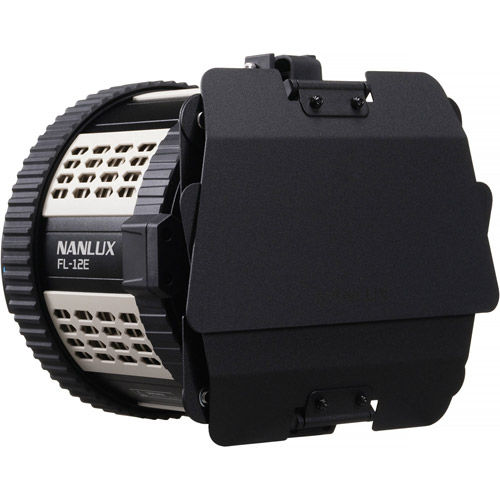

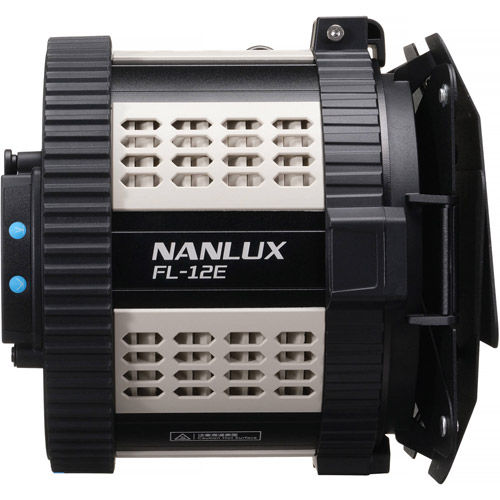

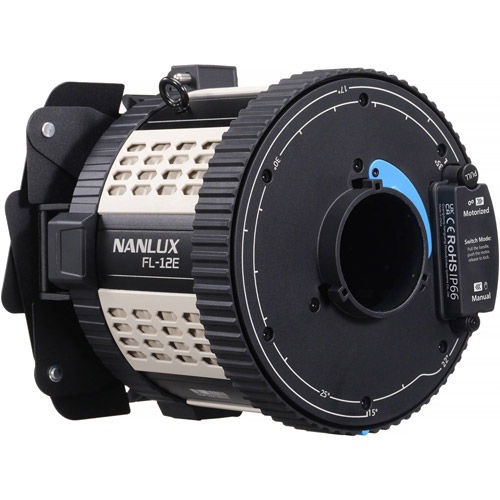

Nanlux FL-12E FE Mount Motorized Fresnel Lens (15-35 Deg)
Nanlux FL-12E FE Mount Motorized Fres...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
FL-12E
FE Mount Motorized Fresnel Lens (15-35 Deg)
Designed with an FE mount, the FL-12E Motorized Fresnel Lens is compatible with Nanlux's FE mount and FM mount fixtures. It features a 15°–35° zoom range. When paired with an FE mount fixture, the zoom can be adjusted via various motorized control methods, allowing for convenient and efficient light shaping.

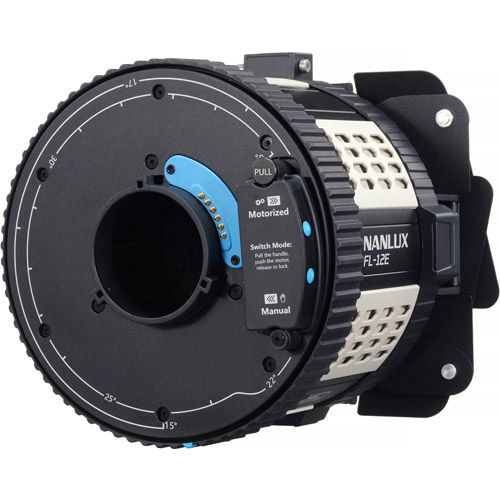

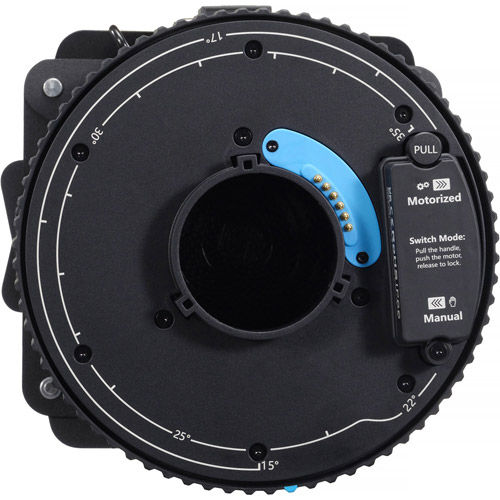

The FL-12E supports both motorized and manual control, allowing the beam angle to be adjusted between 15° and 35°. When mounted on an FE mount fixture, it supports motorized control: it can be operated directly using the buttons on the lens or the fixture’s control panel, or controlled through the fixture using various methods (including wired controllers, apps, DMX, CRMX, or Ethernet). Featuring an excellent optical design, it delivers high brightness while providing a focused and soft lighting area with natural beam edge transitions. The FL-12E features an IP66 rating, allowing it to operate normally in rain, snow, and dusty environments without the need for additional protection.

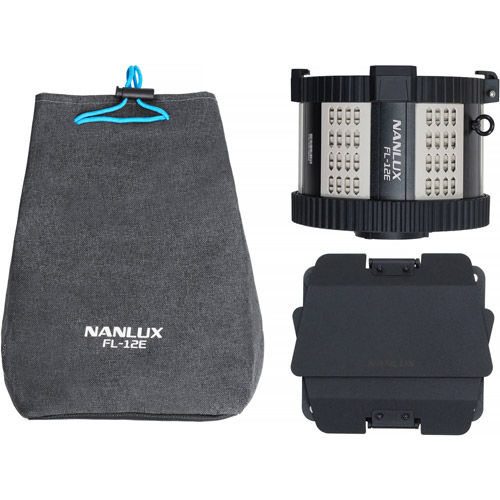

What's Included

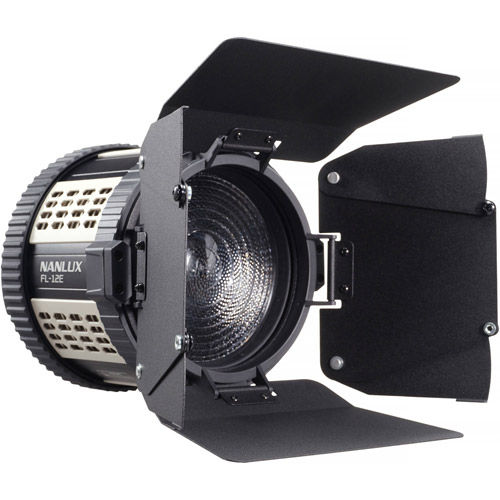

FL-12E FE Mount Motorized Fresnel LensBarndoor
User Manual
Carrying Bag
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
FL-12E |
|
|---|---|
| Compatible Product | FE mount fixtures, FM mount fixtures |
| Beam Angle | 15°-35° |
| IP Rating | IP66 |
| Certification | CE, UKCA, RoHS |
| Dimensions | FL-12E: 151 × 178 × 184 mm (5.94 × 7.01 × 7.24") Barndoor: 192 × 174 × 34 mm (7.56 × 6.85 × 1.34") Carrying Bag: 195 × 195 × 300 mm (7.68 × 7.68 × 11.81") |
| Weight | FL-12E: 1.01 kg (2.23 lbs) Barndoor: 0.39 kg (0.86 lbs) Carrying Bag: 0.19 kg (0.42 lbs) |
