- Webcode: 493603 • Mfr: UpDownCross 100G
Product Highlights
- 8 Channels
- 3840 x 2160 @ 60 fps Max. Video Resolution
- USB-C / 6.35mm Headphone Jack / RJ45 Connection
- 2x 100 ‑ 240V AC Power Source
- 2.2" LCD Display
- Mac / Windows 11 OS
Estimated Release Date: May 29, 2026
This exciting new product is being released in limited quantity. Orders will be filled on a first-come, first-served basis. A credit card pre-authorization will be taken upon placing your order. Once your order is approved, we will process a 25% deposit to hold your place in line for the next available unit to arrive.
Blackmagic Design UpDownCross 100G
Blackmagic Design UpDownCross 100G- Toronto Pre Order
- Ottawa Pre Order
- Mississauga Pre Order
- Calgary Pre Order
- Edmonton Pre Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
UpDownCross 100G

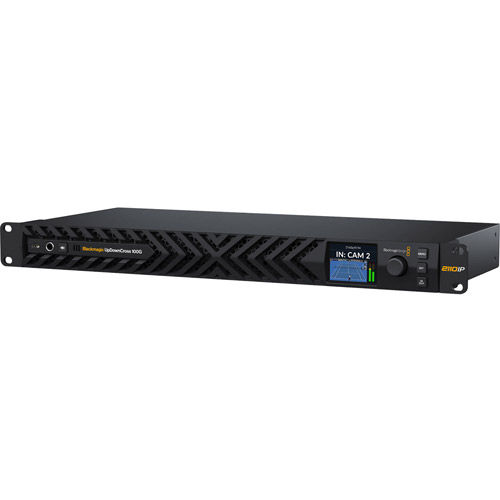

Blackmagic Design today announced Blackmagic UpDownCross 100G a powerful new standards converter that lets customers simultaneously convert up to 8 separate channels of SD, HD and Ultra HD video to any other standard. The new converter has redundant 100G Ethernet for full SMPTE 2022-7 compliance and a dedicated NMOS control port. The Blackmagic UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that’s very quiet. It also includes redundant 100G Ethernet for full SMPTE 2022-7 compliance, dual redundant AC power supplies and a separate NMOS control port for connecting to control networks.
Key Features:
- Features 8 channels of Up, Down and Cross conversion.
- Connects using high speed 100G Ethernet for SMPTE-2110.
- Supports SD, HD and Ultra HD television standards up to 2160p60.
- 2 x 100G Ethernet ports to support full SMPTE-2022-7 redundancy.
- 8 independent channels of simultaneous standards conversion.
- Includes dedicated NMOS connection for routing IP sources.

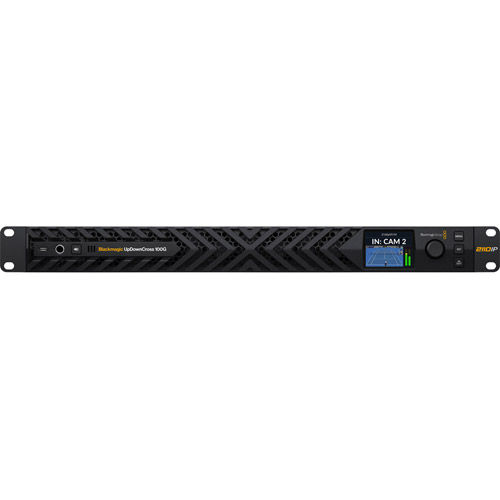

- Front panel LCD for monitoring of video inputs and outputs.
- Front panel speaker and headphone for audio monitoring.
- Dual redundant AC power supplies for broadcast reliability.
- Localized for 13 popular languages allowing international use.
Blackmagic 2110 IP products conform to the SMPTE-2110 standard, which specifies the transport, synchronization and description of 10-bit video, audio and ancillary data over managed IP broadcast networks. They can re-sync SDI inputs to a common PTP clock, or external gear can lock to the reference output generated from the PTP clock. All Blackmagic SMPTE-2110 products with 100G Ethernet, plus some 10G Ethernet models have 2 separate Ethernet ports to support redundancy. SMPTE-2110 redundancy sends two identical copies of their video and audio across two separate network connections. This works even better when the redundant Ethernet ports are connected to separate Ethernet switches. This redundancy is called SMPTE 2022-7 Seamless Protection Switching. It compares incoming RTP packets on both connections by sequence number, then reconstructs a perfect video frame from whichever packet of pixels arrives first. The switchover is real-time and totally seamless, so customers never get dropped frames or audio glitches.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications

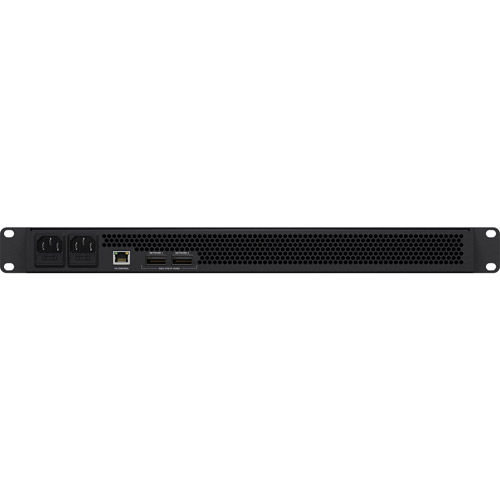

UpDownCross 100G |
|
|---|---|
|
100G 2110 IP Networks |
2 x 100G QSFP28 connections. |
|
Senders and Receivers per 100G Camera |
8 x Ultra HD or HD |
| 1G Control Network | 1 x 1G RJ45 for NMOS control, configuration and firmware updates |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet |
|
SMPTE ST 2110 IP Audio Outputs |
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet |
| Analog Audio Outputs | 1 x 6.35 mm headphone jack |
| Computer USB Interface | 1 x USB-C for configuration and firmware updates |
| Power Source | 2 x IEC C14 power inputs |
Video Standards |
|
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| SMPTE Compliance | SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Colour Precision | 10-bit 4:2:2 YUV |
| Colour Space | Rec. 709, Rec. 2020 |
IP Video Compliance |
|
|
SMPTE 2110-20 (Uncompressed Video) |
IGMP v2 |
|
SMPTE 2110-21 (Traffic Shaping) |
Sender: Narrow |
|
SMPTE 2110-30 (PCM) |
Audio Conformance level: Level C |
|
SMPTE 2110-40 (Ancillary Data) |
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec | Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. |
| Precision Time Protocol |
IEEE 1588-2008 (PTP v2) |
|
NMOS IS-04 Discovery and Registration |
v1.3.2 |
|
NMOS IS-05 Connection Management |
v1.1.2 |
|
NMOS BCP-002-01 |
Natural Grouping |
|
NMOS BCP-004-01 |
Receiver capabilities |
Audio |
|
| Headphones | Front panel headphone outputs active monitor. |
| Built In Speaker | Front panel mono speaker outputs active monitor. |
| Audio Controls | Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial. |
| Display | Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel. |
| Built-In Control Panel | 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings. |
| External Control | RJ-45 Ethernet and USB-C. |
| OS | Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 11 |
| Power Supply | 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. |
| Power Inputs | 2 x IEC C14 sockets. |
