100G 2110 IP Networks: 2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
- Webcode: 493604 • Mfr: CONVNVIPR/SBB10X8P
- FREE SHIPPING Available
Product Highlights
- 8 Channels
- RJ-45 Ethernet / USB-C Female Connection
- 2x 100‑240V AC Power Source
- 2.2" LCD Display
- Mac 15.0 Sequoia / Mac 26.0 Tahoe / Windows 11 OS
Estimated Release Date: May 29, 2026
This exciting new product is being released in limited quantity. Orders will be filled on a first-come, first-served basis. A credit card pre-authorization will be taken upon placing your order. Once your order is approved, we will process a 25% deposit to hold your place in line for the next available unit to arrive.
Blackmagic Design StudioBridge 10G PWR
Blackmagic Design StudioBridge 10G PWR
$3,719.00
Add to Cart
FREE SHIPPING
Available
Web Availability:
Pre Order
This is a NEW product available for Pre-Order only. Place your order and you will be one of the first in line to receive it when the manufacturer ships to us. Orders are filled by the date received.
Vistek Locations
- Toronto Pre Order
- Ottawa Pre Order
- Mississauga Pre Order
- Calgary Pre Order
- Edmonton Pre Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
StudioBridge 10G PWR
The Blackmagic StudioBridge 10G PWR is designed to bridge low-cost single link 10G Ethernet SMPTE-2110 connections into high-end redundant 100G Ethernet based systems. It converts and combines 8 channels of 10G Ethernet into a redundant pair of 100G Ethernet connections. That means you can plug in 8 separate 10G Ethernet Ultra HD devices. Each 10G Ethernet port has a massive 90W of PoE++ power, so you can power equipment such as converters and cameras directly from their Ethernet connections. Blackmagic 2110 IP products conform to the SMPTE-2110 standard, which specifies the transport, synchronization and description of 10-bit video, audio and ancillary data over managed IP broadcast networks. They can re-sync SDI inputs to a common PTP clock, or external gear can lock to the reference output generated from the PTP clock.
Key Features:
- Bridges 8 x 10G Ethernet connections into redundant 100G Ethernet systems.
- Redundant 100G Ethernet for full SMPTE-2022-7 compliance.
- Supports 90W of PoE++ power on each 10G Ethernet port.
- Includes dedicated NMOS connection for routing IP sources.

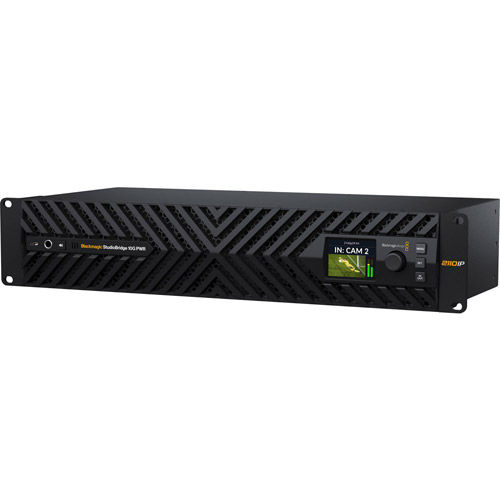

- 2RU rack mount design with front-to-back cooling.

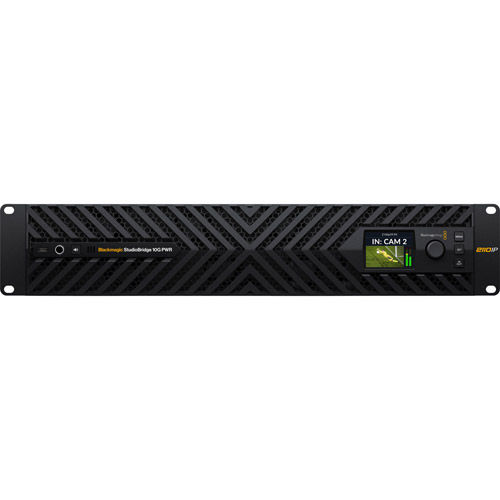

- Front panel LCD for monitoring of video inputs and outputs.
- Front panel speaker and headphone for audio monitoring.
- Dual redundant AC power supplies for broadcast reliability.
- Localized for 13 popular languages allowing international use.
All Blackmagic SMPTE-2110 products with 100G Ethernet, plus some 10G Ethernet models have 2 separate Ethernet ports to support redundancy. SMPTE-2110 redundancy sends two identical copies of their video and audio across two separate network connections. This works even better when the redundant Ethernet ports are connected to separate Ethernet switches. This redundancy is called SMPTE 2022-7 Seamless Protection Switching. It compares incoming RTP packets on both connections by sequence number, then reconstructs a perfect video frame from whichever packet of pixels arrives first. The switchover is real-time and totally seamless, so customers never get dropped frames or audio glitches.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
StudioBridge 10G PWR |
|
|---|---|
| Connections |

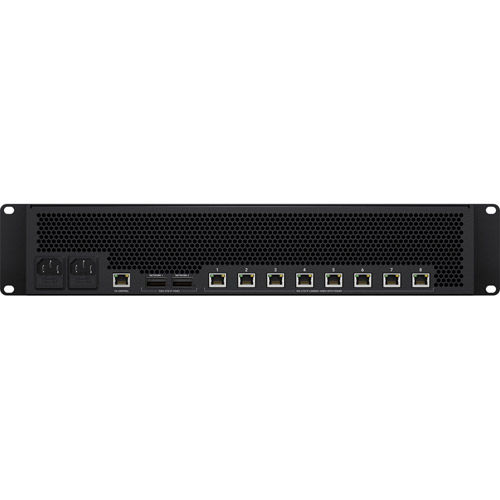

10G 2110 IP Networks: 8 x 10G PoE++ RJ45 connections. Senders and Receivers per 100G Pair: 8 x Ultra HD or HD. 1G Control Network: 1 x RJ45 for NMOS control, configuration and software updates. SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet. SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet. Multi Rate Support: Auto detection of HD and Ultra HD. Computer Interface: 1 x USB-C for configuration and firmware updates. Power: 2x IEC C14 power inputs. |
| Video Standards |
HD Video Standards: 720p50, 720p59.94, 720p60 Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 Color Precision: 10-bit 4:2:2 YUV Color Space: Rec. 709, Rec. 2020. SDI Auto Switching: Automatically detects HD and Ultra HD. |
| IP Video Compliance |
SMPTE 2110-20 (Uncompressed Video): IGMP v2 SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM): Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management: v1.1.2 NMOS BCP-002-01: Natural Grouping NMOS BCP-004-01: Receiver capabilities |
| Display | Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel. |
| Control |
Built in Control Panel: 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings. External Control: RJ-45 Ethernet and USB-C |
| OS | Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 11 |
| Power Requirements |
Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. |
Physical Specifications |
|
| Dimensions | 48.2 x 22 x 8.8 cm (19 x 8.66 x 3.48") |
| Environmental Specifications |
Operating Temperature: 5° to 40° C (41° to 104° F) Storage Temperature: -20° to 45° C (-4° to 113° F) Relative Humidity: 0% to 90% non‑condensing |
