100G 2110 IP Networks
2 x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
- Webcode: 493606 • Mfr: CONVNVIPP/EX10012G8
- FREE SHIPPING Available
Product Highlights
- 8 Channels
- 8 SDI Video Inputs / Outputs
- USB-C Female / 6.35 mm Headphone Jack / RJ45 Ethernet Connection
- 2x 100‑240V Power Source
- 2.2" LCD Display
- Mac 15.0 Sequoia / Mac 26.0 Tahoe / Windows 11 OS
Estimated Release Date: May 29, 2026
This exciting new product is being released in limited quantity. Orders will be filled on a first-come, first-served basis. A credit card pre-authorization will be taken upon placing your order. Once your order is approved, we will process a 25% deposit to hold your place in line for the next available unit to arrive.

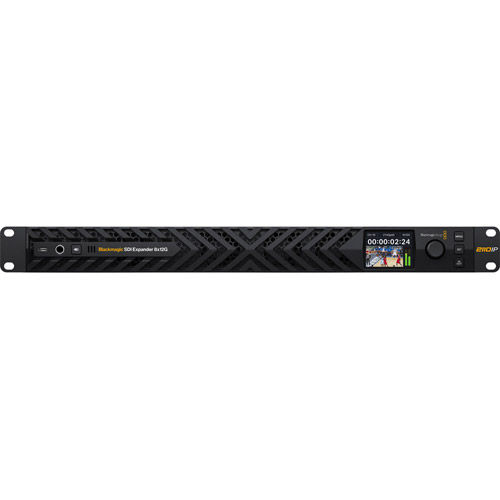

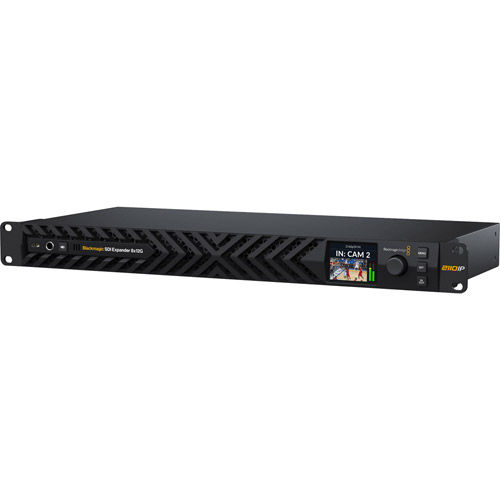

Blackmagic Design SDI Expander 8x12G
Blackmagic Design SDI Expander 8x12G
$4,465.00
Add to Cart
FREE SHIPPING
Available
Web Availability:
Pre Order
This is a NEW product available for Pre-Order only. Place your order and you will be one of the first in line to receive it when the manufacturer ships to us. Orders are filled by the date received.
Vistek Locations
- Toronto Pre Order
- Ottawa Pre Order
- Mississauga Pre Order
- Calgary Pre Order
- Edmonton Pre Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
SDI Expander 8x12G
Blackmagic SDI Expander 8x12G converts in 2 directions at the same time! It converts 8 independent channels of 12G-SDI to SMPTE-2110, while simultaneously converting a separate set of 8 channels of SMPTE-2110 back to 12G-SDI. That's 16 channels of conversion in a single rack unit! The SMPTE-2110 connections use two 100G Ethernet ports for full SMPTE-2022-7 redundancy. There is also a separate NMOS control Ethernet port and dual redundant AC power supplies for reliable broadcast operation.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
SDI Expander 8x12G |
|
|---|---|

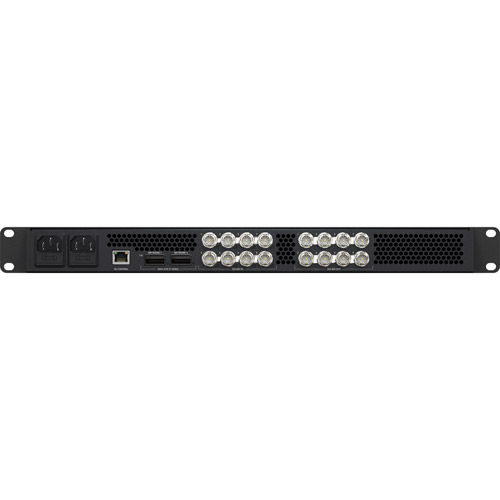

| Connections |
Senders and Receivers per 100G Pair8 x Ultra HD or HD. 1G Control Network1 x 1G RJ45 for NMOS control, configuration and firmware updates. SDI Video Inputs8 SDI Video Outputs8 SDI Rates1.5G, 3G, 6G, 12G. SDI Audio Inputs16 Ch embedded audio on SDI inputs. SDI Audio Outputs16 Ch embedded audio on SDI outputs. SMPTE ST 2110 IP Audio Inputs16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. SMPTE ST 2110 IP Audio Outputs16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. Analog Audio Outputs1 x 6.35 mm headphone jack. Power2 x IEC C14 power inputs. |
| Video Standards |
SD Video Standards525i59.94 NTSC, 625i50 PAL HD Video Standards720p50, 720p59.94, 720p60 Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SMPTE ComplianceSMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2022-7, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. SDI Color Precision10-bit 4:2:2 YUV Color SpaceRec. 790, Rec. 2020. SDI Auto SwitchingAutomatically detects HD and Ultra HD. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G‑SDI output. |
| IP Video Compliance |
SMPTE 2110-20 (Uncompressed Video)IGMP v2 SMPTE 2110-21 (Traffic Shaping)Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM)Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data)Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. CodecBlackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time ProtocolIEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registrationv1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Managementv1.1.2 NMOS BCP-002-01Natural Grouping NMOS BCP-004-01Receiver capabilities |
| Audio | Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket. |
| Display | Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel. |
| Control |
Built in Control Panel2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings. External ControlRJ-45 Ethernet and USB-C. |
| Operating Systems | Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 11 |
| Power Requirements |
Power Supply2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Inputs2 x IEC C14 sockets. |
| Dimensions | 48.2 x 22.7 x 4.4 cm (19 x 8.94 x 1.74") |
| Environmental Specifications |
Operating Temperature5° to 40° C (41° to 104° F) Storage Temperature-20° to 45° C (-4° to 113° F) Relative Humidity0% to 90% non‑condensing |
