100G Ethernet Networks
2 x 100G QSFP28 connections.
Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch.
This exciting new product is being released in limited quantity. Orders will be filled on a first-come, first-served basis. A credit card pre-authorization will be taken upon placing your order. Once your order is approved, we will process a 25% deposit to hold your place in line for the next available unit to arrive.
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.

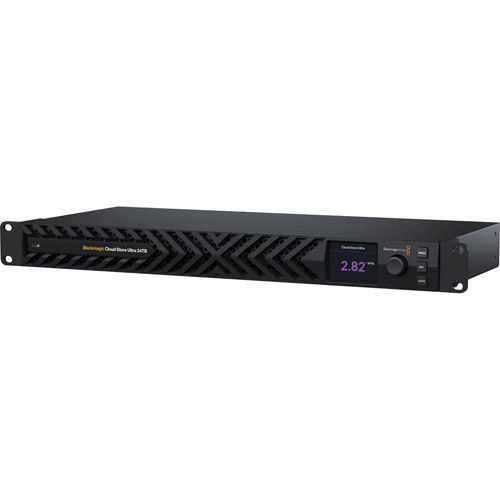

Blackmagic Cloud Store Ultra 24TB is an extremely high-performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. Cloud Store Ultra features 24TB capacity 12-card RAID 0 flash memory core, 2 x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C and Blackmagic Cloud Sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Cloud Store Ultra 24TB |
|
|---|---|
| Connections |

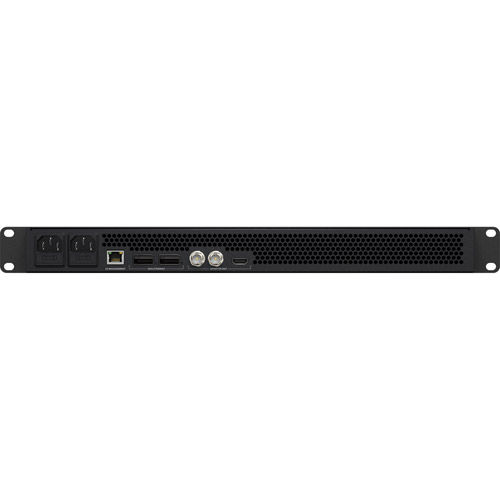

100G Ethernet Networks2 x 100G QSFP28 connections. Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch. 1G Management1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates. SDI Monitor Outputs2 HDMI Monitor Outputs1 SDI Rates1.5G, 3G. Computer Interface1 x USB-C for Cloud Store Setup utility and software updates. Power2 x IEC C14 power inputs. |
| File Sharing Protocol |
ProtocolNFS SMB Computer Connections200 max. |
| Storage |
Storage TypeM.2 NVMe SSD Total Capacity24TB |
| Displays |

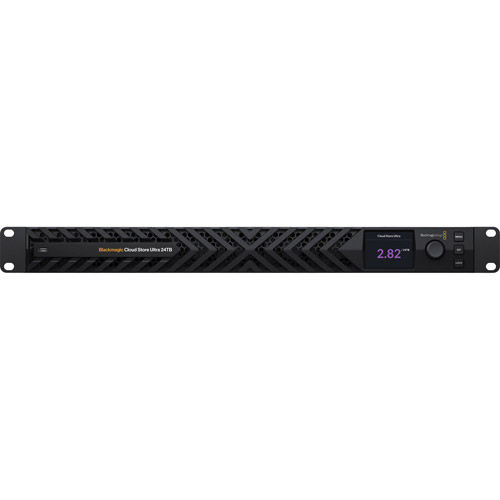

Front Panel DisplayBuilt in 2.2 inch LCD for settings plus storage name, capacity and use. Monitor Out DisplaysDevice Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. SDI Monitor Out Standards1080p50, 1080p59.94, 1080p60 HDMI Monitor Out Standards1080p50, 1080p59.94, 1080p60 |
| Control |
Built in Control Panel3 buttons, 2.2 inch color display and spin knob for menu settings. External ControlUSB-C or Ethernet for configuration and software updates. |
| Software |
Software IncludedBlackmagic Cloud Setup Utility Blackmagic Proxy Generator LiteInternal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port. |
| Operating System | Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 11 |
| Power Requirements |
Power Supply2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Inputs2 x IEC C14 sockets. |
| Dimensions | cm (19 x 9.06 x 1.74") |
| Environmental Specifications |
Operating Temperature5° to 40° C (41° to 104° F) Storage Temperature-20° to 45° C (-4° to 113° F) Relative Humidity0% to 90% non‑condensing |
