- Webcode: 494101 • Mfr: KG808112
Product Highlights
- 300kg (661lbs) Load Capacity (1 1/8" Receiver)
- 40kg (88lbs) Load Capacity (5/8" Pin)
- Fits 48 to 51mm Tube Diameters

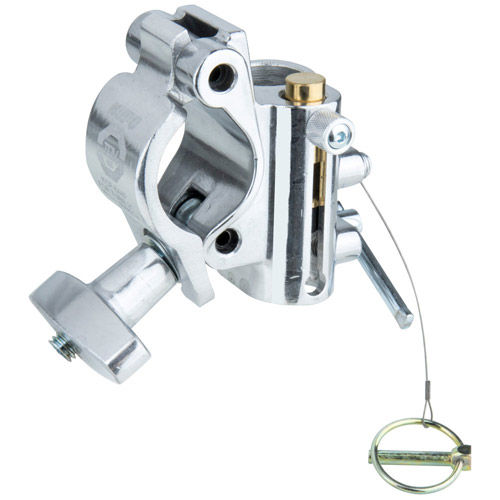

Kupo KCP-844 TV Coupler - Silver
Kupo KCP-844 TV Coupler - Silver- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
TV Coupler
The Kupo TV Coupler is built for heavy-duty lighting equipment and comes with a 16mm receiver and 28mm spigot. TUV approved, the TV coupler is constructed by rugged die-cast aluminum and extruded aluminum, and features a hinged locking jaw. It comes with a 28mm junior socket for a luminaire or telescopic hanger. The 3/8in-16mm baby stud is also available and alternates with a 16mm baby socket by the spring latch bolt for lightweight luminaire and accessories. The hinged locking jaw is restricted, making operation for single handed use easier. Equipped with a safety linchpin, the safety wire is built-in with the clamp to ensure this essential safety aid is always on hand. The Kupo TV Coupler will support up to 661.4lbs (300kg) on the 28mm attachment, and 88lbs (40kg) on the 16mm attachment.
Key Features:
- Built for heavy-duty lighting equipment and comes with a 16mm receiver, spigot and a 28mm receiver. Will support up to 661.4lbs (300kg) on the 28mm attachment, and 88lbs (40kg) on the 16mm attachment.
- Fits tube dia: 48mm-51mm
- Equipped with a safety linchpin, a security device allowing the user to preset it in the pin hole of a 28mm spigot
- Constructed from high tensile aluminum extrusion
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
KG808112 |
|
|---|---|
| Weight | 0.95 kg (2.09 lbs) |
| Dimensions (LxWxH) | 15.5 x 17 x 7.6 cm (6.1 x 6.69 x 2.99") |
| Colour | Silver |
| Maximum Jaw Diameter | 51 mm (2.01") |
| Minimum Jaw Diameter | 48 mm (1.89") |
| Stand Adapter Type | 28mm Receiver, 16mm Receiver and 16mm Baby Pin |
| Primary Material | Aluminum |
| Secondary Material | Brass |
| Warranty | Limited Two-Year Warranty |
