Product Highlights
  • 23.8" 4K Broadcast Monitor
  • 4K Ultra HD Resolution
  • In-Plane Switching IPS Technology
  • 12G-SDI/ 4K HDMI Inputs
  • 1,000:1 Contrast Ratio
  • 300 cd/m² Brightness
  • 178° View Angle
Option:
BM230-12G
BM280-12G
BM280-4K

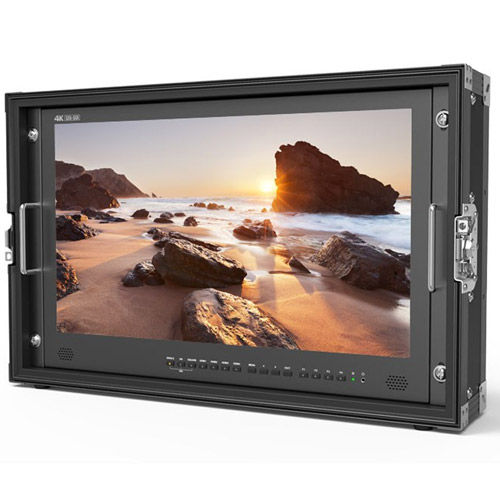

Lilliput 23.8" 12G-SDI 4K Broadcast Director Monitor with 12G-SDI, 4K HDMI inputs, Metal Housing, Lilliput 23.8" 12G-SDI 4K Broadcast Dir...
SAVE $300   $2,299.00 Add to Cart
FREE SHIPPING Available
Web Availability: In Stock
Vistek Locations
  • Toronto In Stock
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary Available for Order
  • Edmonton Available for Order
Please call and verify availability at the store as stock changes daily.

Lease this for: $93.34 Learn More

Overview

BM230-12G

Key Features:

  • 4K (3840*2160) Ultra-HD native resolution
  • 12G-SDI Single - Link , Dual - Link , Quad - Link
  • 23.8" perfect size for both suitcase & rackmount
  • High contrast: 1000:1
  • 300cd/m² brightness
  • 178° Ultra high viewing angle
  • Rich interfaces: 12G-SDI, 4K HDMI input
  • Metal housing
  • Wide voltage: DC12-24




12G-SDI Single-Link

SDI Compatibility
The BM230-12G monitor supports 12G-SDI single-link signal input and loop output, and backward compatible with 6G-SDI, 3G-SDI, HD-SDI & SDI input signals


12G-SDI Dual-Link

SDI Compatibility
The BM230-12G monitor supports 2x6G-SDI dual-link signal input and loop output, and backward compatible with 2x3G-SDI & 2xHD-SDI input signals.


12G-SDI Quad-Link

SDI Equalization & re-clocking
The purpose of the eye waveform is to measure the quality of the SDI input signal. So the SDI equalization & re-clocking function ensures the transmission quality and effect of eye pattern.


4K HDMI Signal Inputs

Matches with world famous 4K/FHD camera brands, to assist cameraman in better photography experience.

4K HDMI Formats
HDMI 2.0 supports 4K 60Hz signal input.
4096x2160 (23.98/24/25/29.97/30p/50i/60i/50p/60p)
3840x2160 (23.98/24/25/29.97/30p/50i/60i/50p/60p)
HDMI 1.4 supports 4K 30Hz signal input.

Multiple Views Display
It supports quad views splitted from different input signals simultaneously, such as 12G-SDI, 3G-SDI and HDMI. Also supports PIP function.


Camera Auxiliary Functions

Plenty of auxiliary functions for taking photos and making movies, such as peaking, false colour and audio level meter.

TALLY
TALLY port and Tally description.

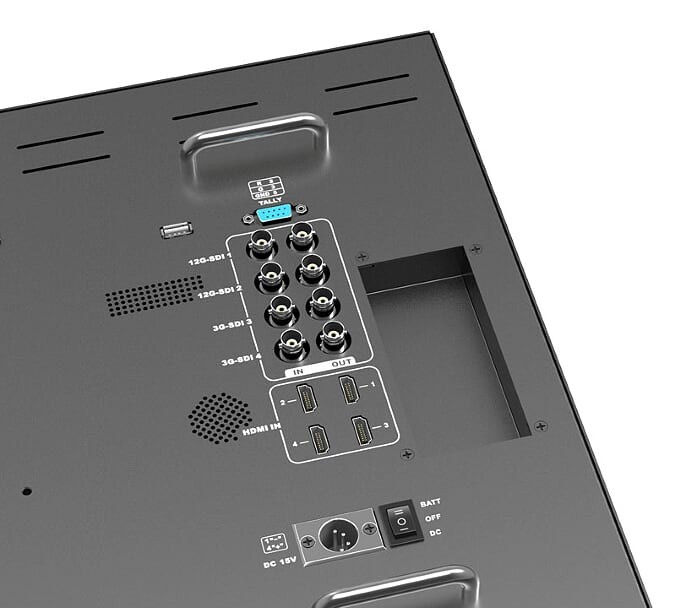

SDI inputs and loop outputs
12G-SDI inputx2, loop outputx2
It supports single-link signal inputs and loop outputs, and backward compatible with 6G-SDI, 3G-SDI, HD-SDI & SDI input signals.
3G-SDI input x2, loop outputx2
It supports 3G-SDI signal input and loop output, and backward compatible with HD-SDI & SDI input signals

4K HDMI inputs
1: HDMI 2.0 supports 4K 60 Hz
2, 3, 4: HDMI 1.4 supports 4K 30 Hz

Power Supply
XLR DC power: connects 15V DC power supply
Power Switch: alternative for battery or DC power

Reviews

Product Specifications

BM230-12G

Display Display Screen
23.8”  10bit

Physical Resolution
3840×2160, 4K

Aspect Ratio
16:9

Brightness
300cd/m²

Contrast
1000:1

Viewing Angle
178°/178°(H/V)
Input 12G-SDI
2

3G-SDI
2

HDMI
HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)

HDMI wireless
1 (optional)

TALLY
1
Output 12G-SDI
2

3G-SDI
2
Audio Speaker
1

Ear Phone Slot
1
Power Current
4.1A (15V)

Input Voltage
DC 12-24V (XLR)

Battery Plate
V-mount / Anton Bauer mount

Power Consumption
≤61.5W
Environment Operating Temperature
0℃~60℃

Storage Temperature
-20℃~60℃
Dimension Dimension(LWD)
579 × 376.5 × 45mm / 666 × 417 × 173mm (with case)

Weight
8.6kg / 17kg (with case)
