Product Highlights
  • 2.07 MP 1/2.8" CMOS Sensor
  • Up To 1920 x 1080 Max. Resolution
  • 0.5Lux Min. Illumination
  • USB3.0 / Type-C / HDMI / LAN Video Interface
  • 5x / 10x Optical / Digital Zoom
  • 110-220 VAC Power Source
Colour:
Black
White
Marshall Electronics CV605U3W 5x HD60 USB-C/IP/HDMI PTZ Camera (White) Marshall Electronics CV605U3W 5x HD60 USB-C/IP/HDMI...
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

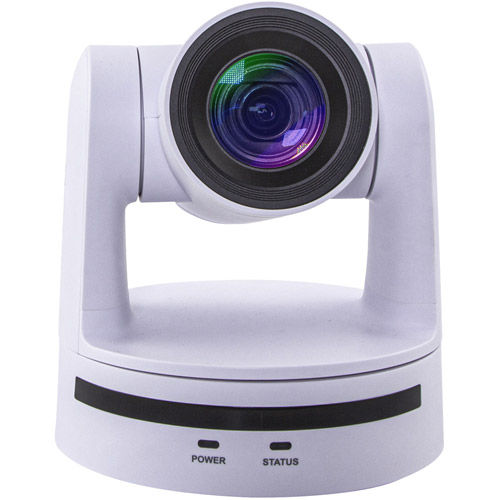

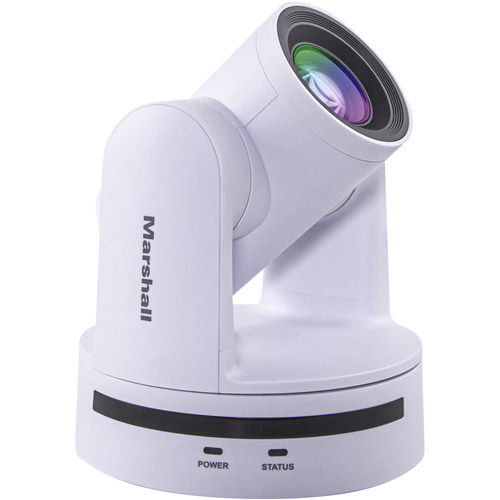

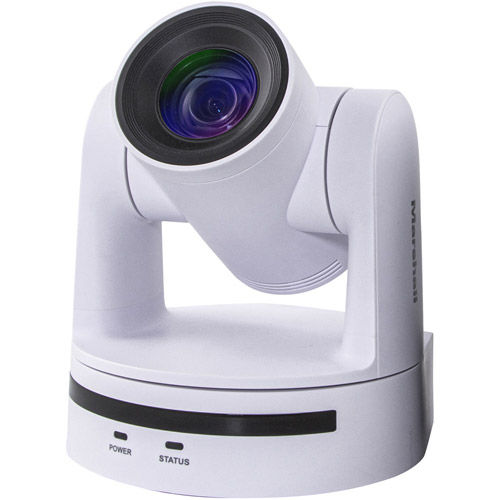

CV605-U3W PTZ Camera

The CV605 5X optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs.

Ultra-Wide 85° Horizontal AOV

The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.

Flexible USB-C + HDMI + IP options

The CV605-U3 offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation.

Low-light Sensitivity

The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

One Cable to Camera

One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.

Privacy Standby Mode

The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

What's Included

CV605-U3W PTZ Camera
Power Adapter
IR Remote
USB3.0 Type-C Cable

Reviews

Product Specifications

CV605-U3W PTZ Camera

Camera Parameter


Optical Zoom 5X, f=3.1~15.5mm
Sensor 1/2.8-inch-high quality HD CMOS sensor
Effective Megapixels 16:9, 2.07 megapixels
Video Format USB:
YUY2, NV12:
640x480/320x180/480x270/640x360/800x448/800x600/1024x576/
1280x720/1920x1080
MJPEG, H.264:
640x480/320x240/352x288/480x270/640x360/720x480/720x576/
800x448/800x600/960x540/1024x576/1280x720/1600x896/1920x1080
HDMI:
1080P 60/59.94/50/30/29.97/25;
720P 60/59.94/50;
Viewing Angle 16.43°(tele)--83.7°(wide)
Digital Zoom 10X additional
Min. Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ VAR
Focus Auto/Manual/One Push
Iris Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
Electronic Shutter Auto / Manual
BLC ON/OFF
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness,
B/W mode, Gamma curve
SNR >55dB

Input/Output Interface


Video Interfaces USB3.0 Type-C, HDMI, LAN
Video Compression Format H.264, YUV2, NV12, MJPEG
Audio Input Interface Two-channel 3.5mm (Line and Mic level)
Audio Output USB3.0, HDMI, LAN output together with video
Audio Compression Format AAC/MP3/G.711A
IP Interface 100M IPport(100BASE-TX)
Network Protocol RTSP/RTMP, ONVIF, Support IP Visca Control Protocol
Control Interface RS232
Control Protocol VISCA/Pelco-D/Pelco-P
Baud Rate: 115200 / 38400 / 9600 / 4800 / 2400
Power Interface HEC3800 Outlet (DC12V)
Supply Adapter 110-220 VAC to DC 12V/1.5A
Input Voltage DC 12V
Input Current 1A (Max)
Consumption 12 W (Max)

PTZ Parameter


Pan Rotation 340-degree pan range
Tilt Rotation 180-degreetiltrange
Pan Control Speed 0.1-60 degree/sec
Tilt Control Speed 0.1-30 degree/sec
Preset Speed Pan: 60 deg/sec
Tilt: 30 deg/sec
Preset Number 255 Presets (10 Presets by remote controller)

Other Parameters


Store Temperature -10 to 60 deg C
Store Humidity 20-95%
Working Temperature -10 to 50 deg C
Working Humidity 20-80%
Weight 1.29 kg (2.84 lbs)
Dimensions 14.5 x 14.7 x 15.4 cm (5.7 x 5.78 x 6.06")
Using Environment Indoor
