Product Highlights
  • 572.000 - 596.000 Frequency Range
  • 45 Hz to 15 kHz Frequency Response
  • 3.5mm Jack Connection
  • 100-240 VAC Power Source
  • 200 mA Power
  • 6 hrs Operating Time
Option:
XSW IEM EK (A)
XSW IEM EK (B)

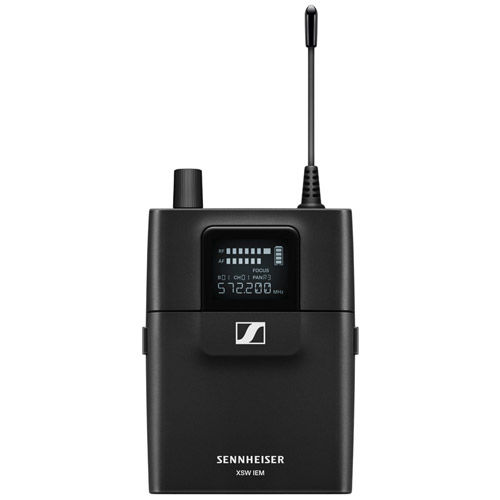

Sennheiser Lightweight in-ear monitoring bodypack to expand existing XS Wireless IEM setups. Includes (1) XSW Sennheiser Lightweight in-ear monitoring ...
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.

Overview

XSW IEM EK (B)

With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt. You can plug in the included IE 4 in-ear monitors or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance – while the high contrast front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.

Key Features:

  • UHF bodypack receiver to expand existing XS Wireless IEM setups
  • Lightweight bodypack with rear clamp and stage-proof control panel
  • Standard 3.5 mm jack plug for supplied IE 4 in-ear monitors or optional in-ear sets
  • Backlit front panel and status LED for battery and link status
  • Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
  • Pan control for individual balance of the input channels
  • Operates with 2x AA primary cells or rechargeable batteries

A professional IEM receiver is unnoticeable most of the time, but becomes a powerful tool with just a few clicks. That is the DNA of the lightweight XS Wireless IEM bodypack. You can easily expand any XS Wireless IEM setup by connecting additional receivers to your transmitter. Its small status LED is all you might see during rehearsals or gigs. It signals both battery and wireless link status. The LC display only lights up when you access the well-secured settings panel. With just a few clicks, you can balance your in-ear mix, switch between focus modes, use an EQ for elevated high frequencies, enable the limiter, choose a new option from the preset channels, or set your frequency manually. The standard 3.5 mm output is open for the included pair of IE 4 in-ear monitors – or you can upgrade your sound with a model of the IE PRO in-ear monitor line. Advanced features like the limiter help you to protect your ears by clamping down on sudden loud signals. With the EQ option, you can get more air and extra brightness by boosting your sound at 13 kHz. The bodypack operates with two AA primary cells or rechargeable batteries. Depending on the volume level, you can expect about six hours of operating time.

What's Included

XSW IEM EK Stereo Receiver
IE 4 In-ear Headphones
2x AA Batteries
Quick Guide
Safety Guide
Compliance Sheet
Frequency Table

For Québec Residents – Disclosure Under the Consumer Protection Act

In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.

Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.

Click here for more info.

Reviews

Product Specifications

XSW IEM EK (B)

Color Black
Dimensions Approx. 95 x 70 x 26 mm
Frequency range 572.000 - 596.000
Power consumption (Amp) Max. 200 mA
Wearing style In-ear
Connection Wireless
Total harmonic distortion (THD) ≤ 1 %
Audio frequency response 45 Hz to 15 kHz
Audio Output Level 2 * 1 ,25 Veff at 16 Ω
Squelch 10μV, fixed
Sensitivity >= 88dB
Input Voltage 100-240 VAC
~200 mA
50/60 Hz
Output Voltage +12 VDC
Output Power 30 mW
Battery capacity (Ah) 2.3
Battery count 2
Battery included Y
Battery voltage (V) 1.5
Battery operating time (h) Approx. 6 hrs
Product weight (g) 110 g (3.88 oz)
Package length (mm) 95
Package height (mm) 70
Package width (mm) 26
